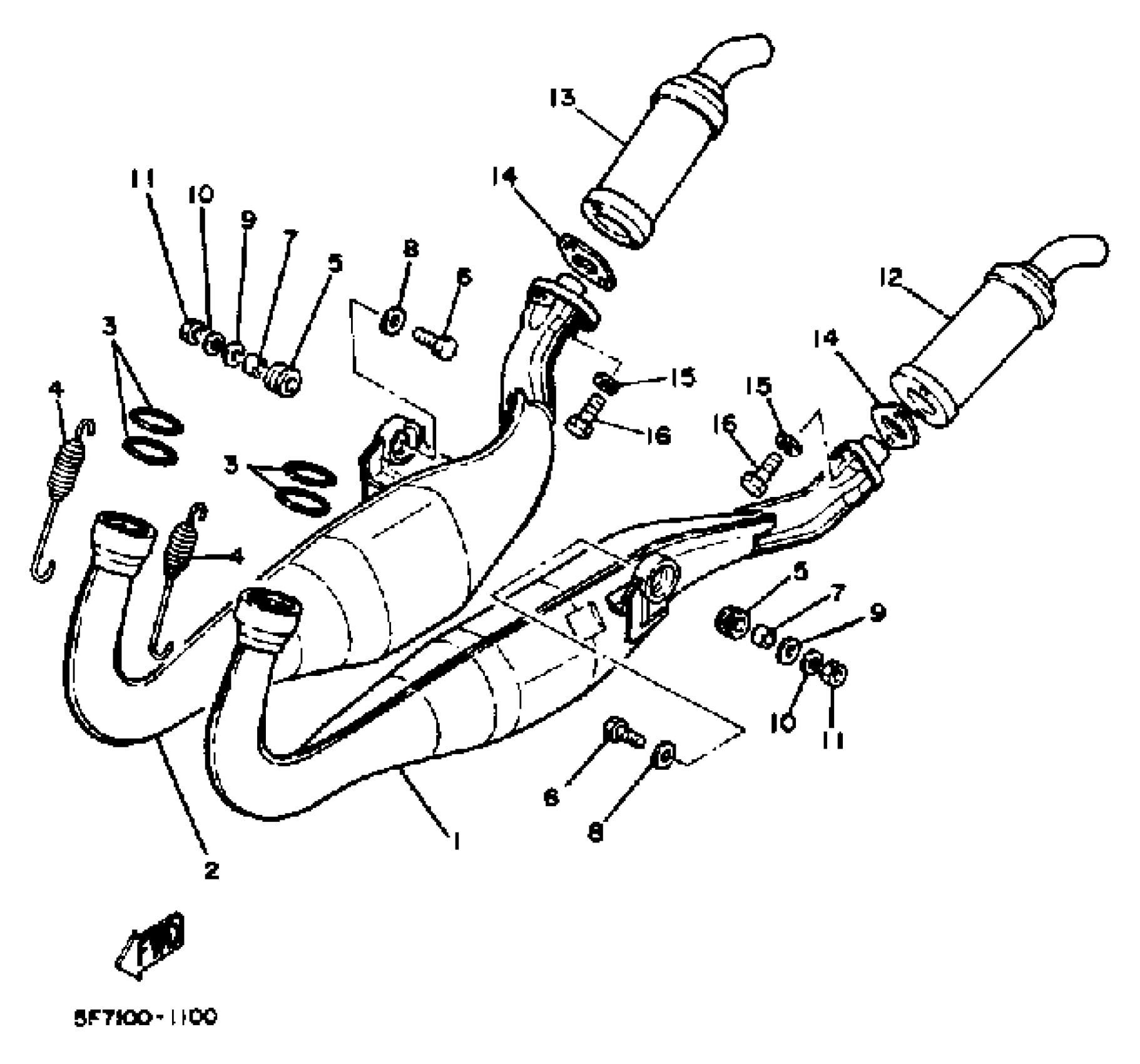

Yamaha TZ250J (TZ250) 1982 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(5F7-14610-01-00)
Unavailable
2
EXHAUST PIPE ASSEMBLY R
(5F7-14620-01-00)
Unavailable
5
DAMPER
565-14747-00-00
Unavailable
9
.. WASHER, PLATE
92990-08600-00
Unavailable
11
. NUT
95380-08700-00
Unavailable
12
SILENCER, EXHAUST
5F7-14753-01-00
Unavailable
13
SILENCER
5F7-14765-00-00
Unavailable
14
GASKET, SILENCER
4DP-14755-00-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
