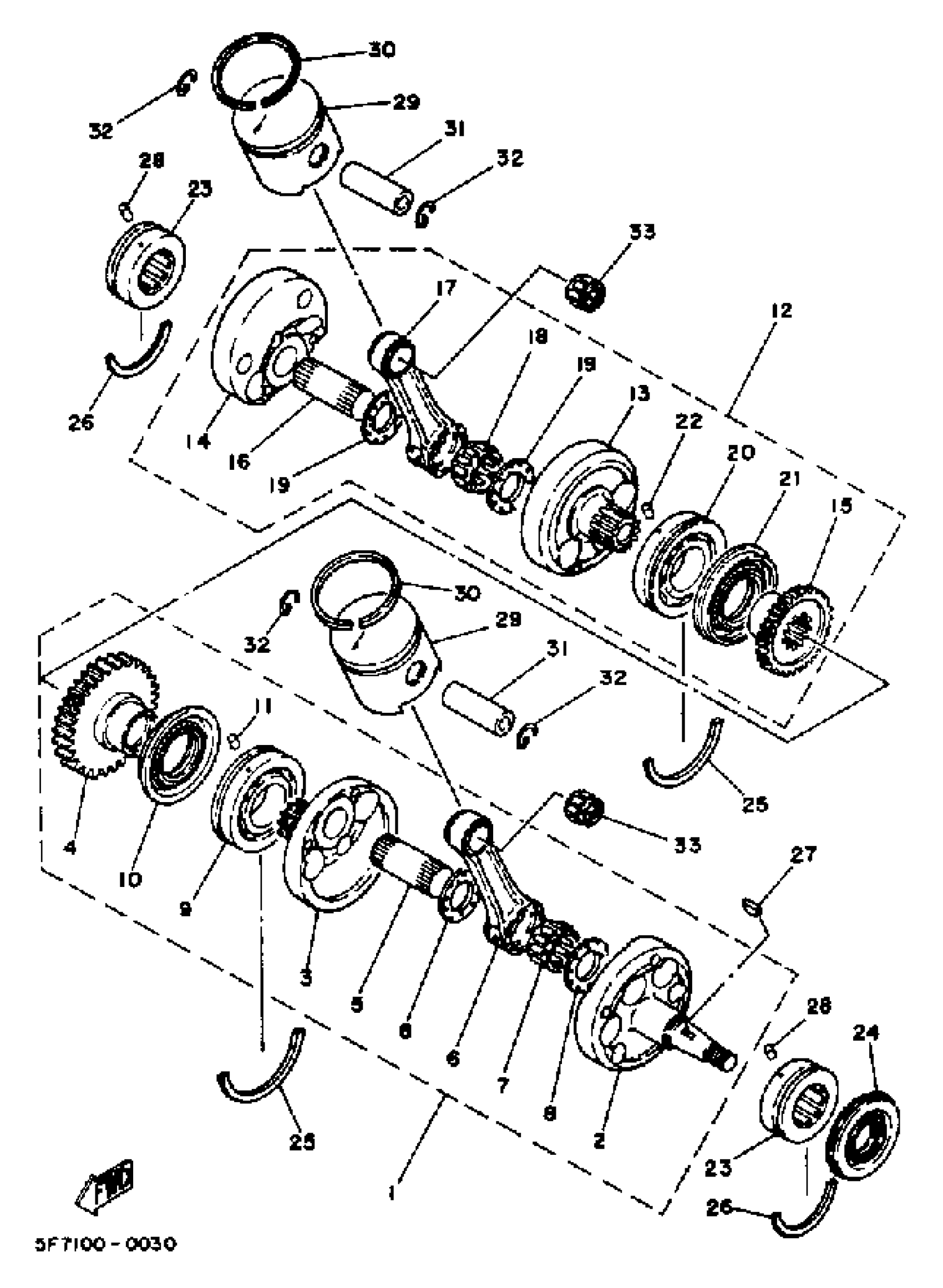

Yamaha TZ250J (TZ250) 1982 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANK SUB ASSEMBLY 1

(5F7-11401-00-00)

Unavailable

2

. CRANK 1

5F7-11412-00-00

Unavailable

3

GASKET (4V2)

90430-06166-00

$3.76

4

. GEAR, DRIVE

5F7-11536-00-00

Unavailable

5

. PIN, CRANK 1

5F7-11681-00-00

Unavailable

6

. ROD, CONNECTING

49V-11651-00-00

Unavailable

7

BEARING, CYLINDRICAL(3XP)

93310-523D2-00

Unavailable

8

WASHER (29L)

90209-22248-00

Unavailable

9

. BEARING 3TC

93306-20638-00

Unavailable

10

OIL SEAL (5F7)

93103-37122-00

Unavailable

11

PIN, DOWEL (341)

93603-09106-00

$2.28

12

CRANK SUB ASSEMBLY 2

(5F7-11402-00-00)

Unavailable

13

CRANK 2

(5F7-11422-00-00)

Unavailable

14

CRANK 3

(5F7-11432-00-00)

Unavailable

15

. GEAR, CRANK SHAFT

5F7-11434-00-00

Unavailable

16

. PIN, CRANK 1

5F7-11681-00-00

Unavailable

17

. ROD, CONNECTING

49V-11651-00-00

Unavailable

18

BEARING, CYLINDRICAL(3XP)

93310-523D2-00

Unavailable

19

WASHER (29L)

90209-22248-00

Unavailable

20

. BEARING 3TC

93306-20638-00

Unavailable

21

OIL SEAL (5F7)

93103-37122-00

Unavailable

22

PIN, DOWEL (341)

93603-09106-00

$2.28

23

BEARING, CYLINDER.#11

93311-82547-00

Unavailable

24

OIL SEAL, SW-TYPE

93103-25121-00

Unavailable

25

CIRCLIP, OUTER

93440-66095-00

Unavailable

26

CLIP

278-17414-00-00

Unavailable

27

KEY,WOODRUFF

90280-04005-00

Unavailable

28

PIN, DOWEL (341)

93603-09106-00

$2.28

29

PISTON STD

4A0-11631-00-96

Unavailable

29

PISTON STD

4A0-11631-00-97

Unavailable

29

PISTON STD

4A0-11631-00-98

Unavailable

30

RING, PISTON STD

240-11611-00-00

Unavailable

31

PIN, PISTON

137-11633-10-00

Unavailable

32

CLIP, PISTON PIN

4A0-11634-00-00

Unavailable

33

BEARING, NEEDLE (24X)

93310-216L2-00

Unavailable
