1982 Yamaha TZ250 (TZ250J) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1982 Yamaha TZ250 (TZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

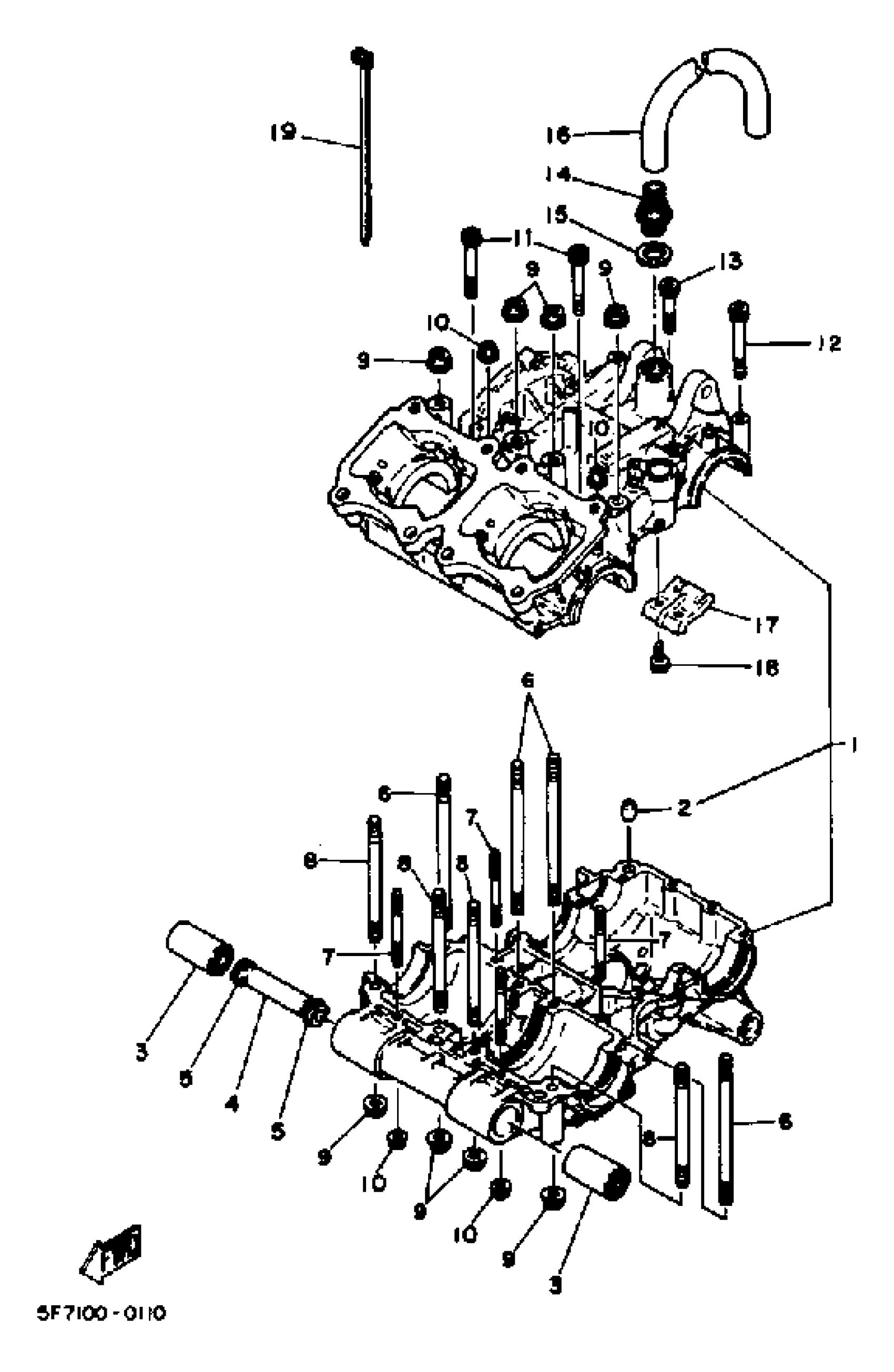

1982 Yamaha TZ250 (TZ250J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(5F7-15100-00-00)

1
Out of stock

2

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

DAMPER, ENG MT 1

5F7-15316-01-00

1
Out of stock

4

SPACER, ENG MOUNT

(5F7-15317-00-00)

1
Out of stock

5

. O-RING

93210-16275-00

1

$2.99

In stock

6

BOLT, STUD

90116-08212-00

1
Out of stock

7

BOLT, STUD

(90116-06341-00)

1
Out of stock

8

PIN, STRAIGHT

(90250-05006-00)

1
Out of stock

9

NUT(55X)

90179-08491-00

1
Out of stock

10

NUT (21W)

90179-06403-00

1
Out of stock

11

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

13

1

$3.82

In stock

14

BREATHER

4A0-15371-00-00

1
Out of stock

15

GASKET, BREATHER

(4A0-15374-00-00)

1
Out of stock

16

PIPE, BREATHER

(1RK-15373-00-00)

1
Out of stock

17

PLATE, BREATHER

(5F7-11165-01-00)

1
Out of stock

18

BOLT, SOCKET

91317-05012-00

—

$1.75

In stock

19

BAND

1UA-82591-00-00

—
Out of stock
