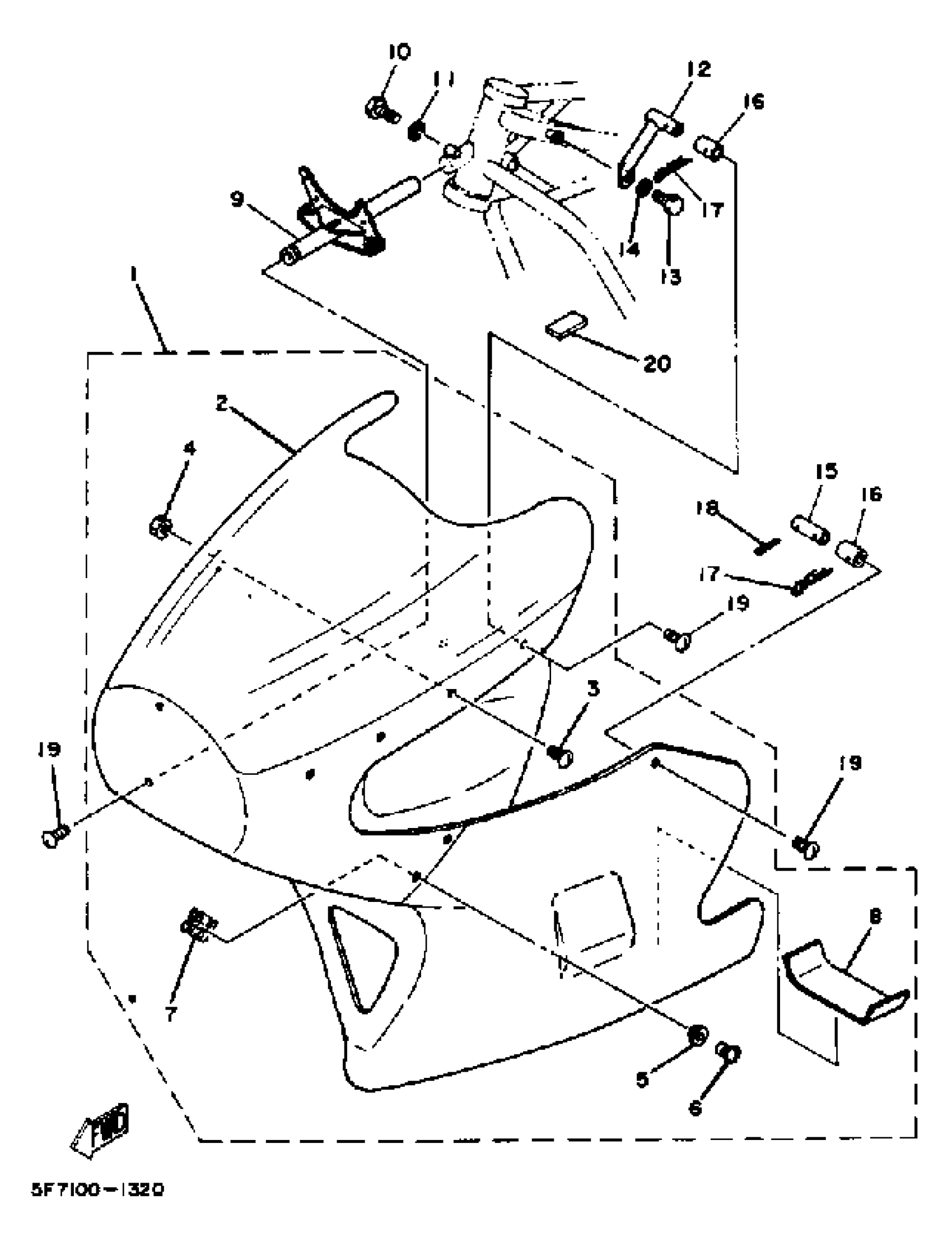

Yamaha TZ250J (TZ250) 1982 COWLING Diagram
#
Description
Price
1
COWLING ASSEMBLY
(5F7-28350-00-01)
Unavailable
2
. UNAVAILABLE IN PRICE BOOK
(5F7-28381-00-00)
Unavailable
3
SCREW, ROUND HEAD
90140-04012-00
Unavailable
5
. HEAD
240-28386-00-00
Unavailable
7
. RNFCMNT, COWLING
4A0-W2831-00-00
Unavailable
8
STAY, LEG SHIELD R
(5F7-28336-00-00)
Unavailable
9
STAY 1
(5F7-28356-00-00)
Unavailable
12
STAY 2
5F7-28357-00-00
Unavailable
15
STAY 3
5F7-28358-00-00
Unavailable
16
NUT
4A0-28364-00-00
Unavailable
17
CLIP
90468-20100-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
20
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
