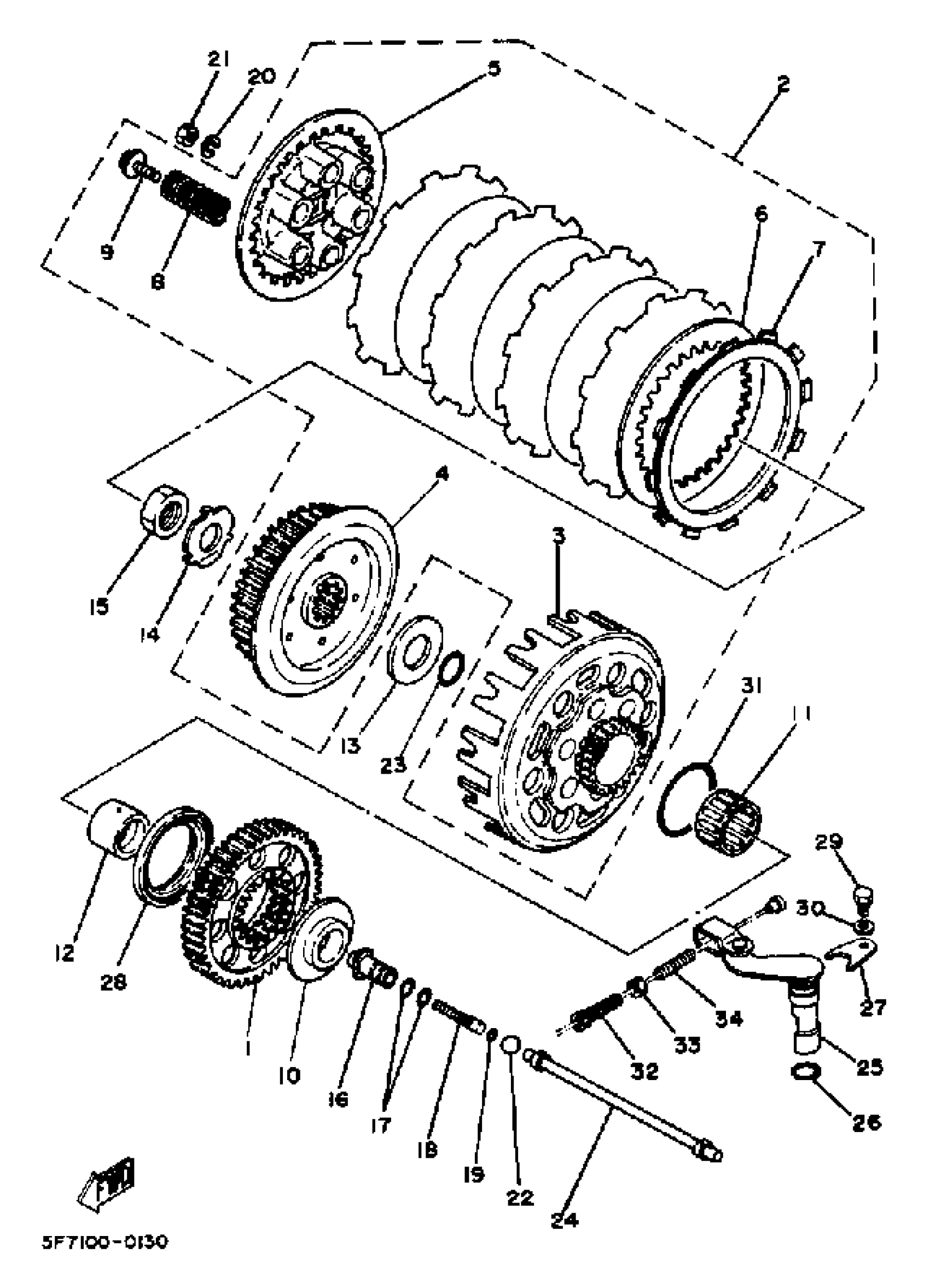

Yamaha TZ250J (TZ250) 1982 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVEN

5F7-16151-00-00

Unavailable

2

CLUTCH ASSEMBLY

(5F7-16300-00-00)

Unavailable

3

CLUTCH HOUSING ASS

5F7-16310-02-00

Unavailable

4

. BOSS, CLUTCH

5F7-16371-01-00

Unavailable

5

. PLATE, PRESSURE 1

2K7-16351-00-00

Unavailable

6

. PLATE, CLUTCH 1

4A0-16324-00-00

Unavailable

7

PLATE, FRICTION

3YL-16321-01-00

$30.99

8

SPRING COMPRESSION168163330000

90501-23138-00

Unavailable

9

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

10

PLATE, THRUST 1

5F7-16154-00-00

Unavailable

11

BEARING (5F7

93310-332J5-00

Unavailable

12

SPACER 1

5F7-16181-00-00

Unavailable

13

WASHER, THRUST

5F7-16153-00-00

Unavailable

14

WASHER, LOCK (3Y1)

90215-20159-00

Unavailable

15

NUT (3R4)

90170-20255-00

$10.49

16

ROD, PUSH 1

(5F7-16356-01-00)

Unavailable

17

O-RING (1J7)

93210-09350-00

Unavailable

18

SCREW, ADJUSTING

5F7-16343-00-00

Unavailable

19

O-RING (4A0)

93210-04279-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

BALL (1M1)

93515-32029-00

Unavailable

23

O-RING

93210-22298-00

Unavailable

24

ROD, PUSH 2

5F7-16357-00-00

Unavailable

25

PUSH LEVER ASSEMBLY

(5F7-16380-00-00)

Unavailable

26

O-RING(3LD)

93210-12790-00

Unavailable

27

PLATE, SEAT

5F7-16384-00-00

Unavailable

28

OIL SEAL (4A0)

93101-56095-00

Unavailable

29

BOLT, HEXAGON

97013-05010-00

Unavailable

30

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

31

O-RING (5F7)

93210-42482-00

Unavailable

32

BOLT (59W)

90123-06102-00

Unavailable

33

NUT (109-26344-00)

90179-06143-00

Unavailable

34

SPRING, COMPRESSION (3L5)

90501-10074-00

Unavailable
