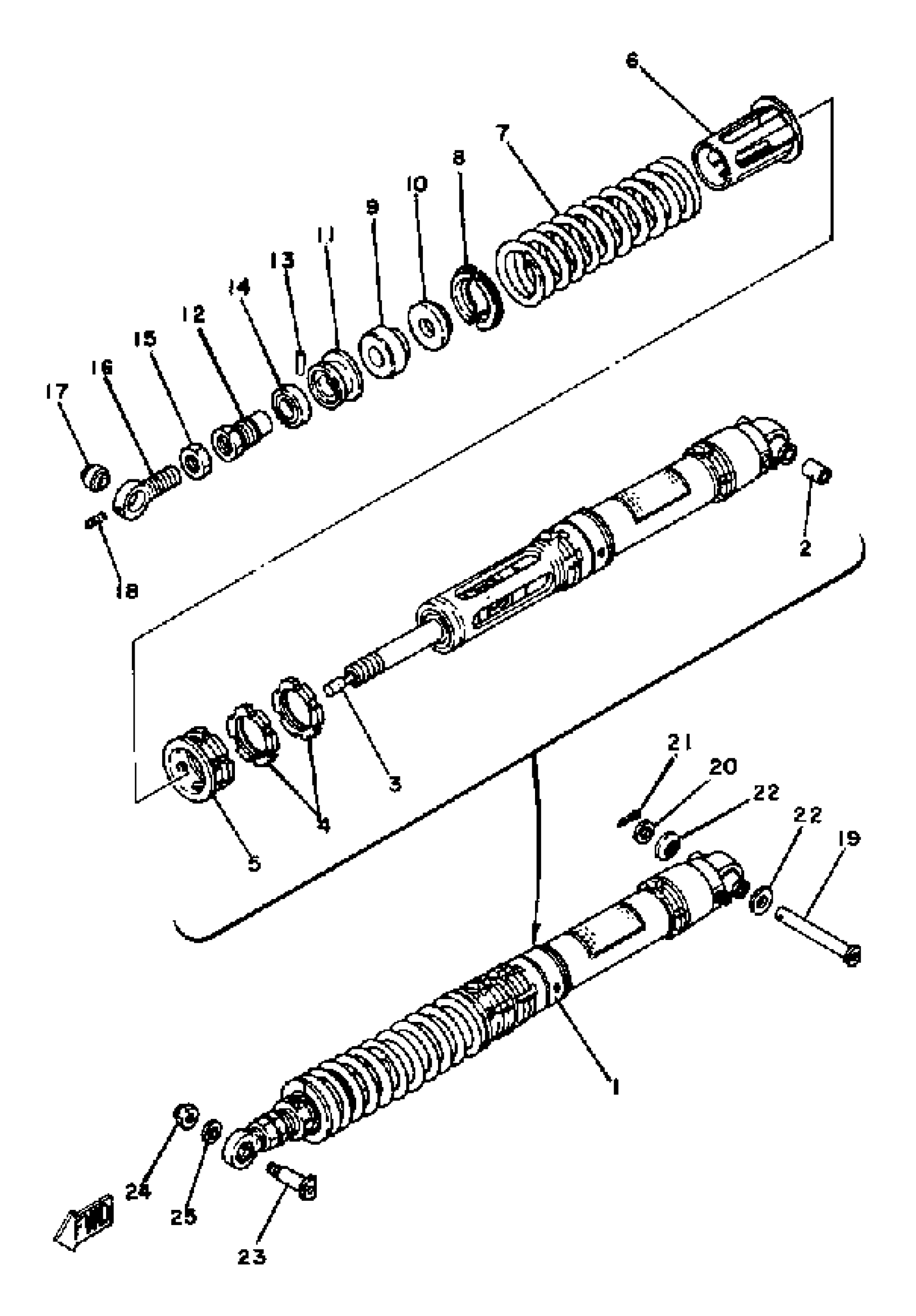

Yamaha TZ250H (TZ250) 1981 REAR SUSPENSION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(5F7-22210-01-00)

Unavailable

2

BUSH, SOLID (1M1)

90380-12051-00

$15.99

3

PUSH ROD SET

(5A0-W2227-00-00)

Unavailable

4

RING, COVER

(5A0-22215-00-00)

Unavailable

5

SEAT, SPRING LOWER

(5A0-22223-00-00)

Unavailable

6

GUIDE, SPRING 2

(5A0-22224-00-00)

Unavailable

7

SPRING

(5F7-22212-00-00)

Unavailable

8

GUIDE, SPRING 1

(5A0-22214-00-00)

Unavailable

9

BUMP, STOP

(5F7-22493-00-00)

Unavailable

10

CAP, CASE

(5A0-22472-00-00)

Unavailable

11

SEAT, SPRING UPPER

(5A0-22213-00-00)

Unavailable

12

ROD, EXTENSION

(5A0-22491-00-00)

Unavailable

13

. PIN, DOWEL

93604-30173-00

Unavailable

14

ADJUST NUT SET

(5A0-W2228-00-00)

Unavailable

15

NUT, HEXAGON

(90170-18288-00)

Unavailable

16

BRACKET, UPPER

(5F7-22219-00-00)

Unavailable

17

. BEARING

93399-99901-00

Unavailable

18

BOLT, SET

(90113-02044-00)

Unavailable

19

PIN, CLEVIS

90240-12086-00

Unavailable

20

WASHER PLATE 164185720000

90201-12166-00

Unavailable

21

PIN, COTTER

91490-30030-00

Unavailable

22

COVER, THRUST

1W1-22128-00-00

Unavailable

23

BOLT 2

4A0-22242-00-00

Unavailable

24

NUT, NYLON

95717-08300-00

Unavailable

25

WASHER, PLAIN

92990-08200-00

Unavailable
