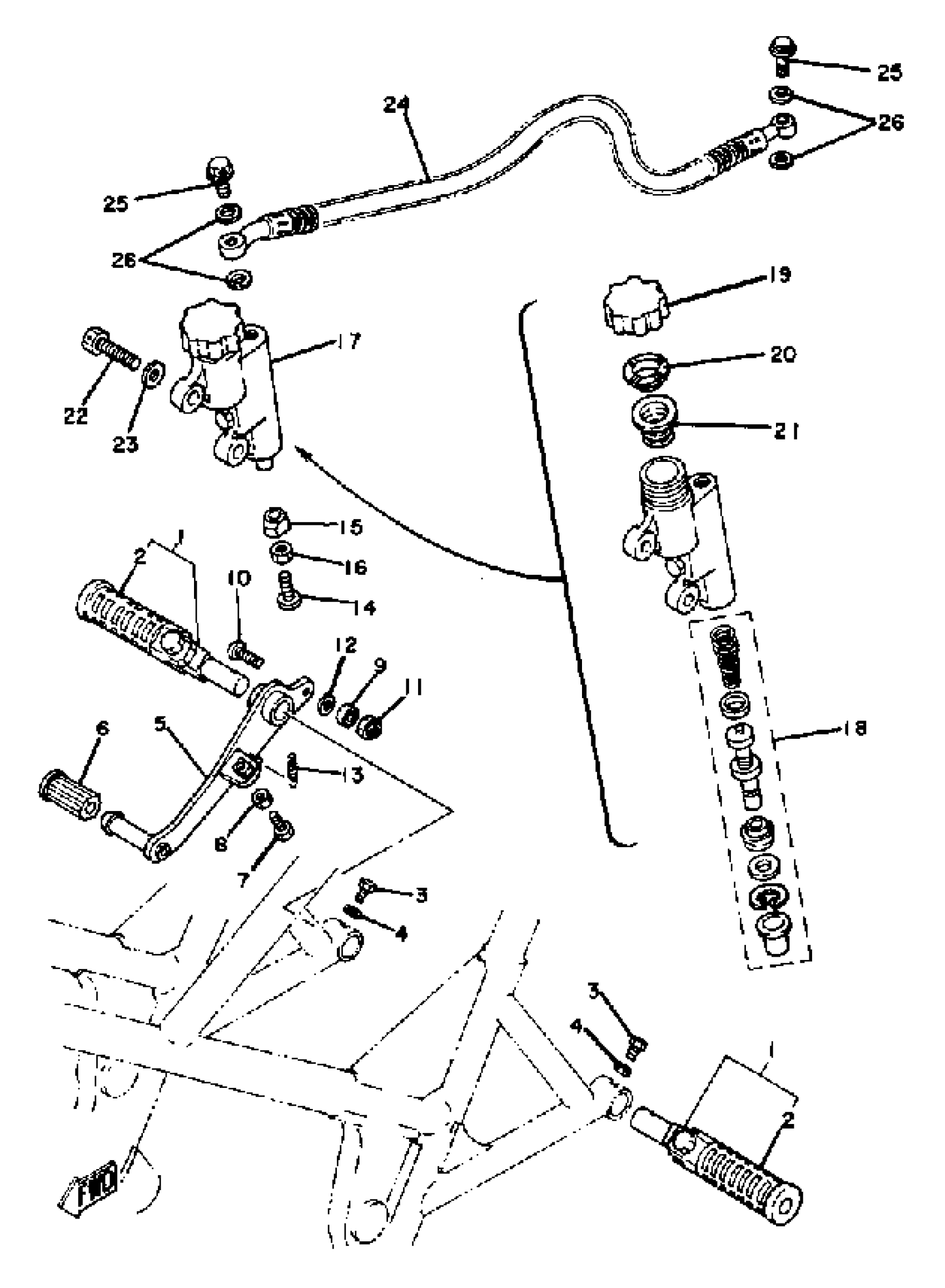

Yamaha TZ250H (TZ250) 1981 REAR MASTER CYLINDER Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

(5F7-27410-00-00)

Unavailable

1

FRT FOOTREST ASSEMBLY L

5F7-27410-10-00

Unavailable

2

. COVER, FOOTREST

1X2-27413-00-00

Unavailable

3

BOLT, HEXAGON

97017-06016-00

$8.49

4

WASHER, SPRING

92907-06100-00

$4.25

5

PEDAL, BRAKE

(5F7-27211-00-00)

Unavailable

6

COVER

240-18113-00-00

$18.49

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

NUT(650)

95380-06700-00

$8.49

9

BEARING

93300-69606-00

Unavailable

10

BOLT, BUTTON

92017-06020-00

$3.76

11

NUT U (861)

90185-06040-00

$7.49

12

NUT U (861)

90185-06040-00

$7.49

13

SPRING, BRAKE PEDAL

(5F7-27216-00-00)

Unavailable

14

BOLT, ADJUSTING

4A0-27227-00-00

Unavailable

15

NUT, ADJUSTING

4A0-27238-00-00

Unavailable

16

NUT(650)

95380-06700-00

$8.49

17

MSTR CYLINDER ASSEMBLY

(5F7-25850-50-00)

Unavailable

18

CYLINDER KIT, MASTER

(4A0-W0042-50-00)

Unavailable

19

CAP, RESERVOIR

(1X2-25852-50-00)

Unavailable

20

BUSH, DIAPHRAGM

(1X2-25855-50-00)

Unavailable

21

DIAPHRAGM RESERVOR

(1X2-25854-50-00)

Unavailable

22

BOLT, HEAD W/HOLE

(90103-08015-00)

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

HOSE, BRAKE 1

(5F7-25872-00-00)

Unavailable

25

BOLT, UNION

(90401-10062-00)

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable
