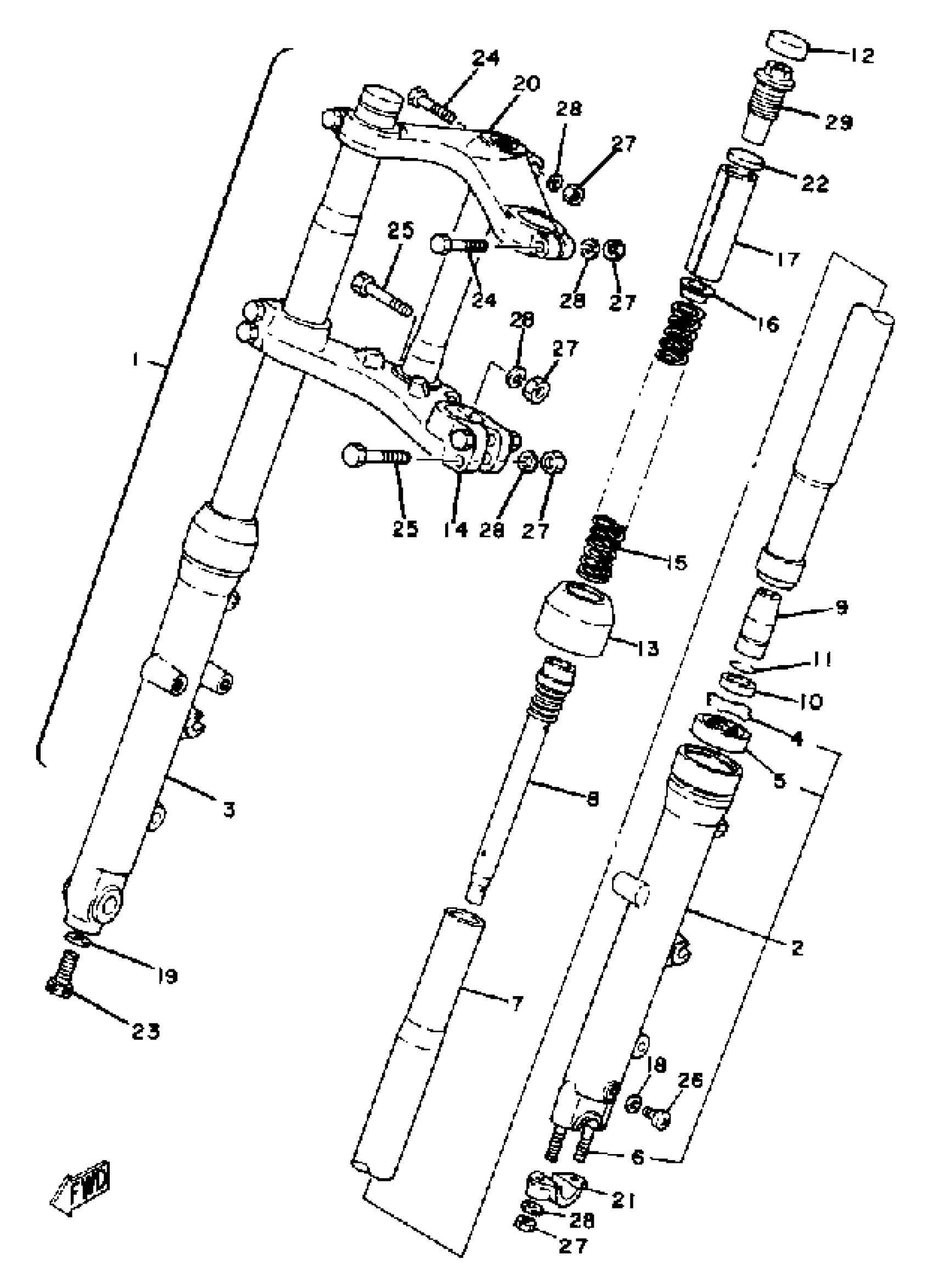

Yamaha TZ250H (TZ250) 1981 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(5F7-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(5F7-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(5F7-23136-00-00)

Unavailable

4

RING, SNAP

4A1-23156-00-00

$5.49

5

OIL SEAL

4ES-23145-00-00

$22.99

6

BOLT, STUD (278)

90116-08261-00

$4.77

7

TUBE, INNER 1

(5F7-23124-00-00)

Unavailable

8

CYLINDER, FRTFRK

(5F7-23170-00-00)

Unavailable

9

SPINDLE, TAPER

(3G2-23173-00-00)

Unavailable

10

CAP, AIR VALVE

(3G2-23184-00-00)

Unavailable

11

CIRCLIP

(3G2-23183-00-00)

Unavailable

12

. CAP, FRONT FORK

2F0-23168-00-00

Unavailable

13

. SEAL, DUST

583-23144-00-00

Unavailable

14

UNDER BRACKET

(5F7-23340-00-00)

Unavailable

15

SPRING, FRONT FORK

(5F7-23141-00-00)

Unavailable

16

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

17

SPACER

11H-23118-00-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

GASKET

509-23158-L0-00

Unavailable

20

CROWN, HANDLE

(1H3-23435-00-00)

Unavailable

21

HOLDER,AXLE

341-23167-50-00

Unavailable

22

. WASHER, SPRING UPR

2H7-23149-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

24

BOLT

90101-08263-00

Unavailable

25

. BOLT 1

5F7-23346-00-00

Unavailable

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

BOLT, CAP

(5F7-23111-00-00)

Unavailable
