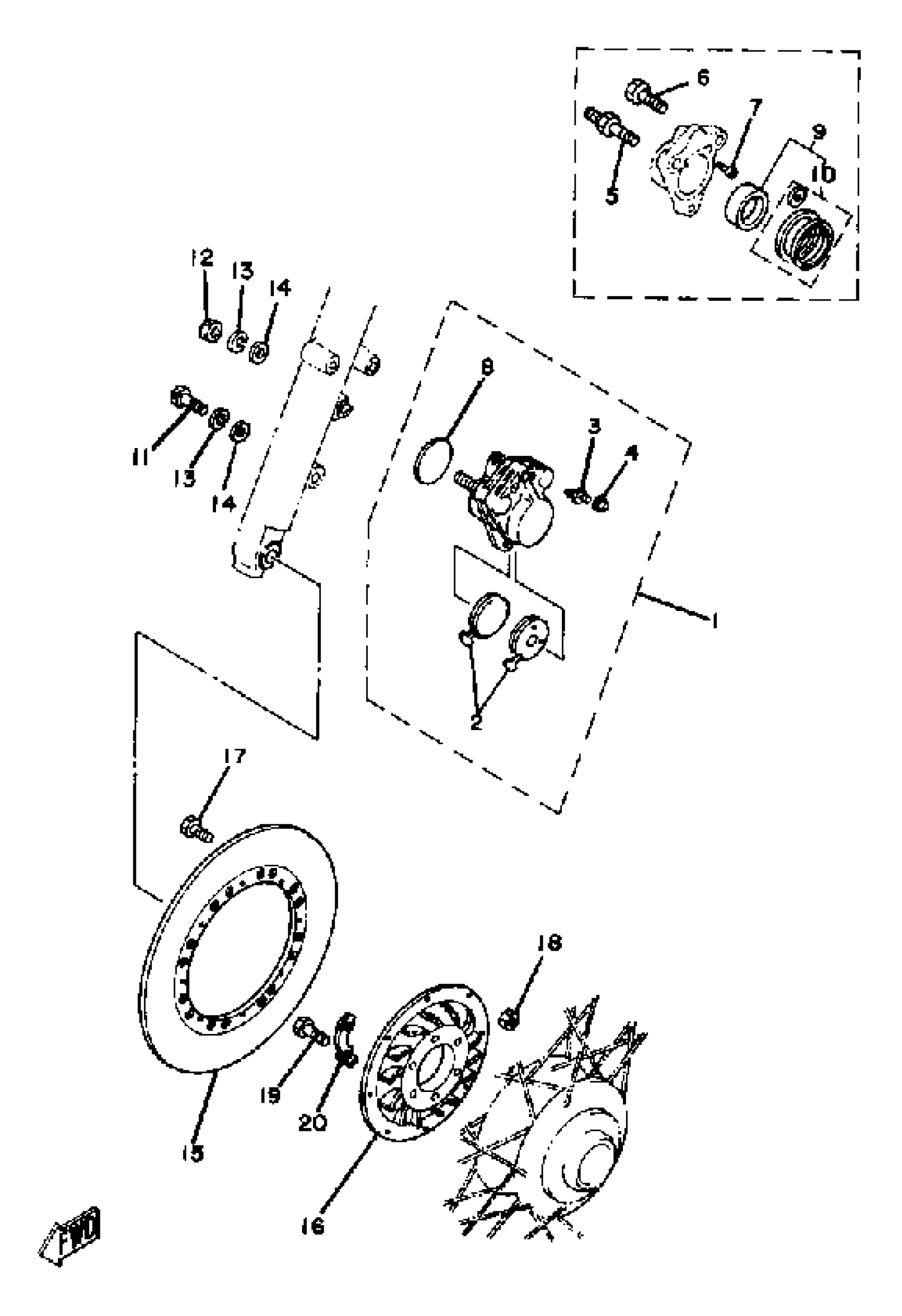

Yamaha TZ250H (TZ250) 1981 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSEMBLY RH

(409-25810-03-00)

Unavailable

2

. BRAKE PAD KIT, FRNT

409-W0045-00-00

Unavailable

3

. SCREW, BLEED

306-25824-00-00

Unavailable

4

CAP

306-25825-01-00

$9.99

5

. BOLT 1

306-25821-01-00

Unavailable

6

. BOLT 2

306-25822-01-00

Unavailable

7

. BOLT 3

306-25826-01-00

Unavailable

8

. EMBLEM, CALIPER

306-25829-00-00

Unavailable

9

PISTON ASSEMBLY, CALIPER

(306-W0057-00-00)

Unavailable

10

CALIPER SEAL KIT

856-W0047-00-00

$82.99

11

BOLT, HEAD W/HOLE

(90103-10019-00)

Unavailable

12

NUT, SPEC''L SHAPE

(90179-10119-00)

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

WASHER, PLATE

(90201-10130-00)

Unavailable

15

DISC, BRAKE

(409-25831-00-00)

Unavailable

16

BRACKET, DISC

(409-25832-00-00)

Unavailable

17

BOLT 306258330000

90109-06018-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

BOLT

(90101-08272-00)

Unavailable

20

WASHER, LOCK (447)

341-25412-00-00

Unavailable
