1981 Yamaha TZ250 (TZ250H) Frame Diagram

← All diagrams

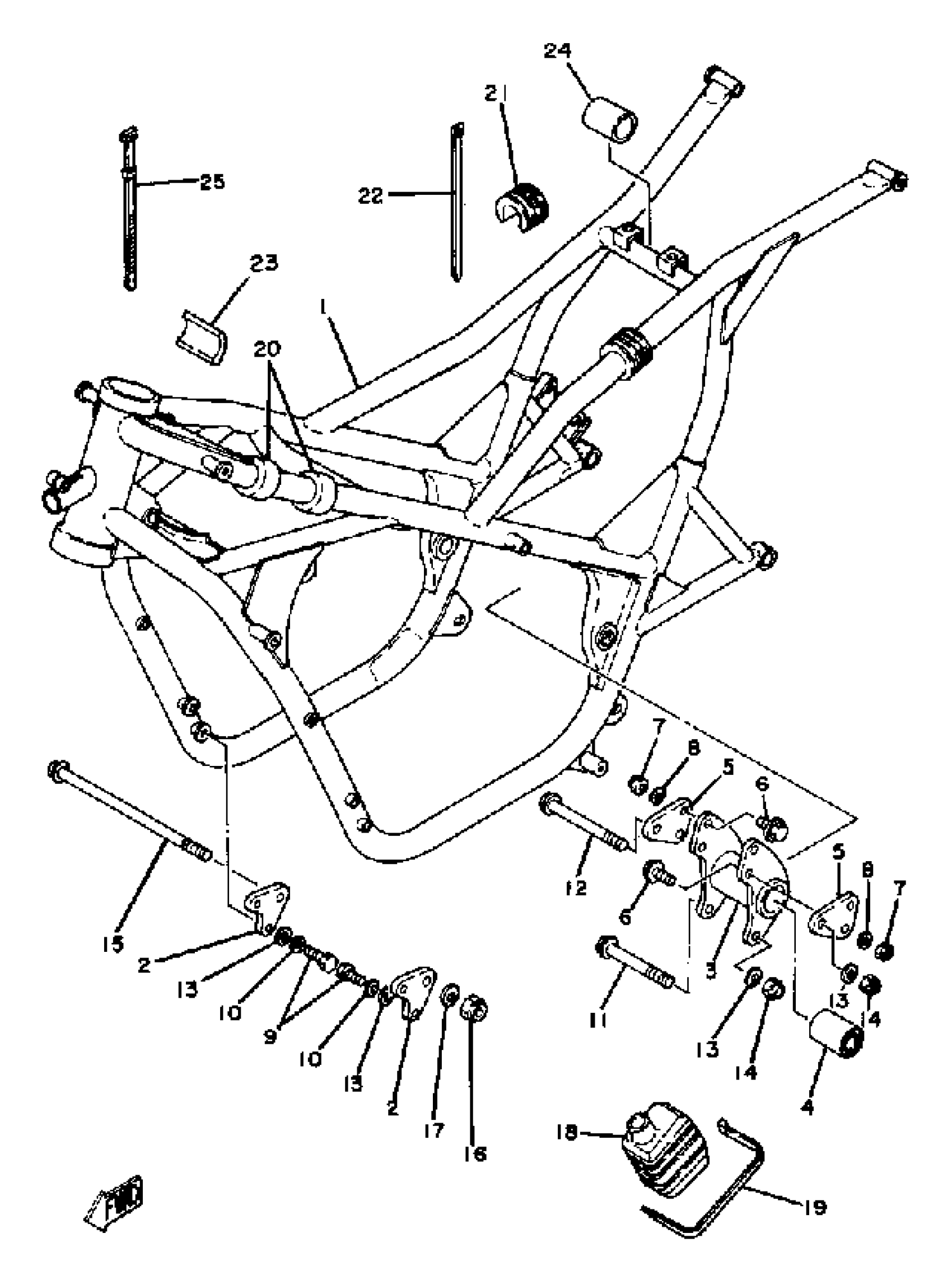

Find the part on the Frame diagram for your 1981 Yamaha TZ250 (TZ250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TZ250 (TZ250H) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5F7-21110-00-33)

1
Out of stock

2

BRACKET, ENGINE 1

5F7-21411-00-00

1
Out of stock

3

BRACKET, ENGINE 2

(5F7-21419-00-00)

1
Out of stock

4

DAMPER

(5F7-2139X-00-00)

1
Out of stock

5

BRACKET, ENGINE 3

(5F7-21429-00-00)

1
Out of stock

6

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

7

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

BOLT (682)

97013-08025-00

1

$6.80

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

BOLT, FLANGE

95814-08080-00

1
Out of stock

12

BOLT,WASHER BASED

90105-08100-00

1
Out of stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

BOLT, WASHER BASED(4KM)

90105-10780-00

—

$9.34

In stock

16

NUT, U

95617-10100-00

—
Out of stock

17

—

$3.00

In stock

18

TANK, OIL

4A0-21751-00-00

1
Out of stock

19

CLAMP(MF1)

90464-15152-00

—

$4.37

In stock

20

DAMPER, TANK LOCATING 3

1J7-24183-02-00

—

$21.54

In stock

21

DAMPER, LOCATING 1

5F6-24181-00-00

1
Out of stock

22

BAND

1UA-82591-00-00

—
Out of stock

23

DAMPER,LOCATING 1

240-24181-00-00

—

$11.58

In stock

24

DAMPER, LOCATING 2

3G2-24182-00-00

1
Out of stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
