1981 Yamaha TZ250 (TZ250H) Cowling Diagram

← All diagrams

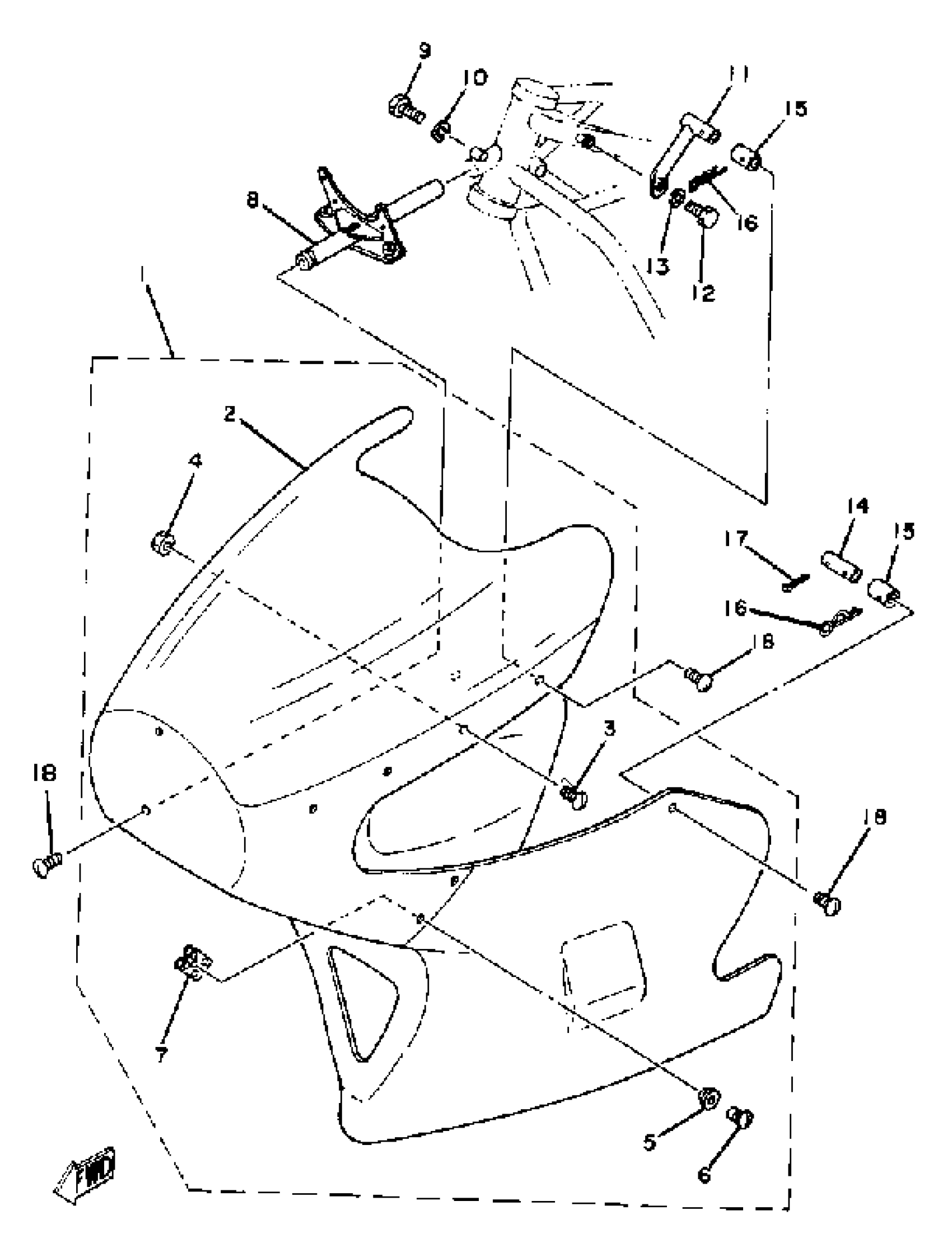

Find the part on the Cowling diagram for your 1981 Yamaha TZ250 (TZ250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TZ250 (TZ250H) Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

3

SCREW, ROUND HEAD

90140-04012-00

1
Out of stock

4

NUT(6TA)

95307-04600-00

1
Out of stock

5

. HEAD

240-28386-00-00

1
Out of stock

6

RIVET

240-28389-00-00

1
Out of stock

7

. RNFCMNT, COWLING

4A0-W2831-00-00

1
Out of stock

8

STAY 1

(5F7-28356-00-00)

1
Out of stock

9

BOLT, HEXAGON

97013-08020-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

11

STAY 2

5F7-28357-00-00

1
Out of stock

12

BOLT, HEXAGON

97017-06012-00

1
Out of stock

13

WASHER, SPRING

92907-06100-00

1
Out of stock

14

STAY 3

5F7-28358-00-00

1
Out of stock

15

NUT

4A0-28364-00-00

1
Out of stock

16

CLIP

90468-20100-00

1
Out of stock

17

PIN, COTTER

91490-25020-00

1
Out of stock

18

SCREW, ROUND HEAD(55K)

90150-06021-00

—
Out of stock
