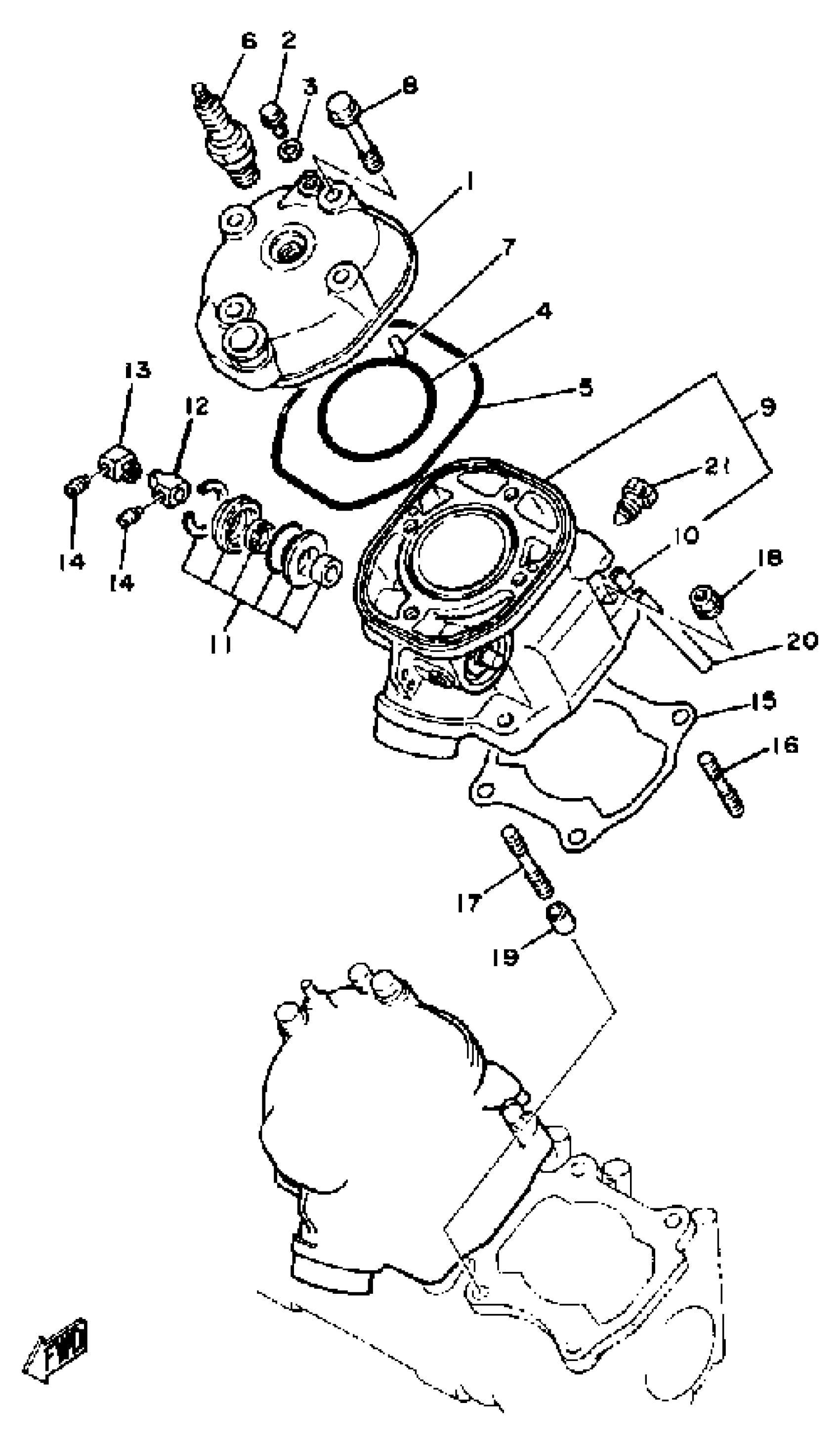

Yamaha TZ250H (TZ250) 1981 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(5F7-11111-00-00)

Unavailable

2

PLUG, WATER CHECK (383)

90338-06041-00

Unavailable

3

GASKET (4V2)

90430-06166-00

$3.76

4

O-RING (1M0)

93210-62323-00

$9.49

5

O-RING

93211-14421-00

Unavailable

7

PIN, DOWEL (278)

93604-08071-00

$8.49

8

BOLT, FLANGE

95814-08045-00

$4.29

9

CYLINDER

(5F7-11310-01-00)

Unavailable

10

NIPPLE, HOSE 1

(4A0-11375-00-00)

Unavailable

11

VALVE FITTING SET

(4A0-W0024-00-00)

Unavailable

12

JOINT 1

4A0-1131H-00-00

Unavailable

13

JOINT 2

4A0-1131J-01-00

Unavailable

14

SCREW

90149-05149-00

Unavailable

15

GSKT,CYLNDR

4A0-11351-01-00

Unavailable

16

BOLT, CYLINDER HOLDING 1

(4A0-11361-00-00)

Unavailable

17

BOLT, CYLINDER HOLDING 2

(4A0-11362-00-00)

Unavailable

18

NUT(55X)

90179-08491-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

HOSE

(90445-10139-00)

Unavailable

21

PLUG, STRAIGHT SCRW (383-11374-00)

90340-10016-00

Unavailable
