1981 Yamaha TZ250 (TZ250H) Carburetor Diagram

← All diagrams

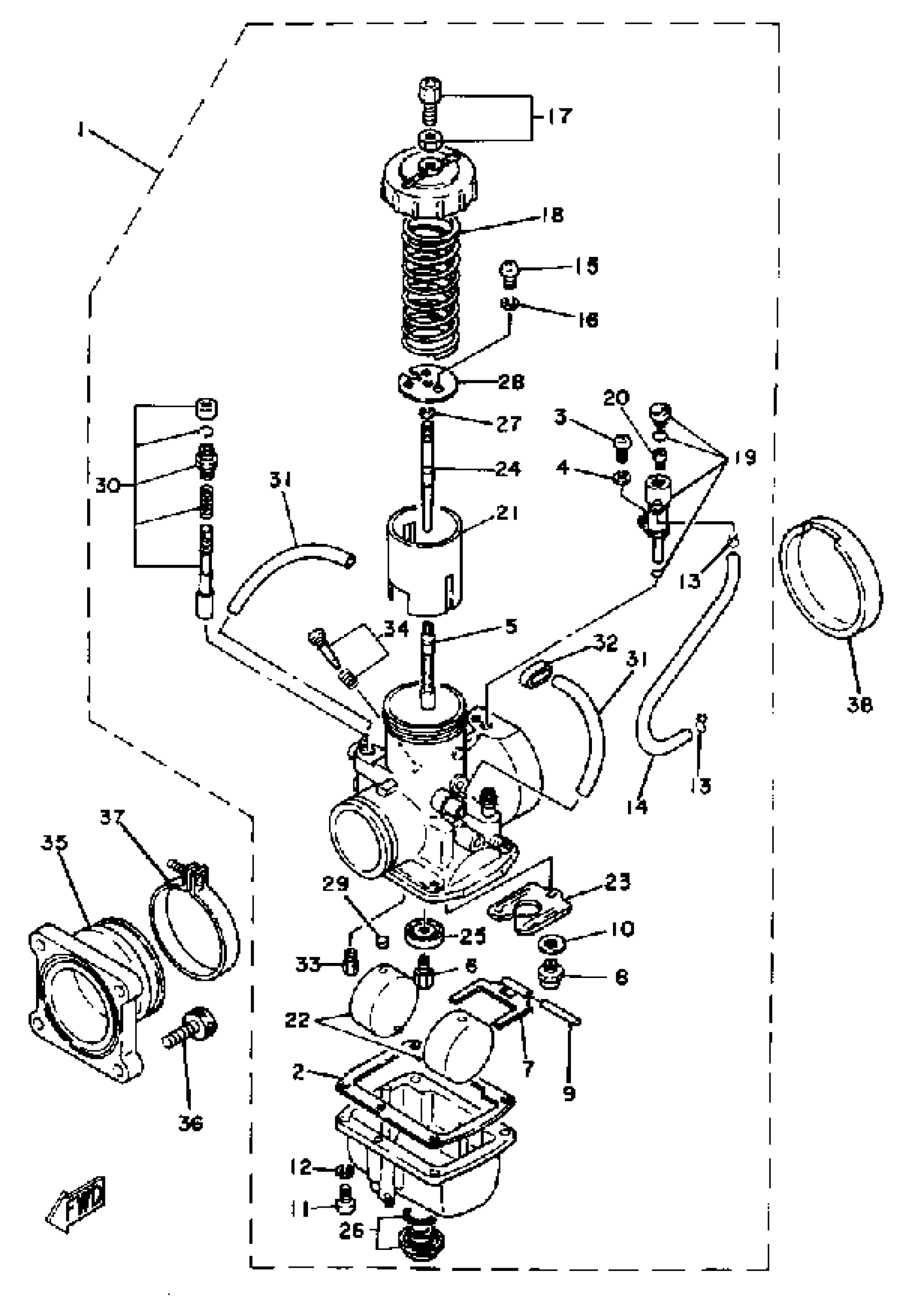

Find the part on the Carburetor diagram for your 1981 Yamaha TZ250 (TZ250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TZ250 (TZ250H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(5F7-14101-00-00)

1
Out of stock

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

1
Out of stock

3

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

4

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

5

NOZZLE, MAIN

(239-14141-30-00)

1
Out of stock

6

JET,MAIN #360

137-14143-72-00

1
Out of stock

6

JET,MAIN #370

137-14143-74-00

1
Out of stock

6

JET,MAIN #380

137-14143-76-00

1
Out of stock

6

JET,MAIN #390

137-14143-78-00

1
Out of stock

6

JET,MAIN #400

137-14143-80-00

1
Out of stock

6

JET,MAIN #410

137-14143-82-00

1
Out of stock

6

JET,MAIN #420

137-14143-84-00

1
Out of stock

6

JET,MAIN #430

137-14143-86-00

1
Out of stock

6

JET, MAIN #440

137-14143-88-00

1
Out of stock

7

. ARM, FLOAT

363-14187-00-00

1
Out of stock

8

NEEDLE VALVE SET

24X-14107-30-00

—
Out of stock

9

PIN, FLOAT

537-14186-00-00

—
Out of stock

10

WASHER,VALVE SEAT

239-14195-00-00

—
Out of stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

13

CLIP, PIPE

8A7-14139-00-00

—
Out of stock

14

HOSE

(3G2-14987-00-00)

1
Out of stock

15

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

17

CABLE ADJUST SCREW SET

12G-14106-00-00

—
Out of stock

18

SPRING, THRTL VALVE

(3G2-14131-00-00)

1
Out of stock

19

. JET HOLDER SET

5F7-W1416-00-00

1
Out of stock

20

JET, MAIN (# 70)

3G2-14231-14-00

—
Out of stock

20

JET, MAIN (# 75)

3G2-14231-15-00

—
Out of stock

20

. JET, MAIN 80 (80)

3G2-14231-16-00

1
Out of stock

20

. JET, MAIN #85

3G2-14231-17-00

1
Out of stock

20

JET, MAIN (# 90)

3G2-14231-18-00

—
Out of stock

21

VALVE, THROTTLE 1

(5F7-14112-00-00)

1
Out of stock

22

. FLOAT

214-14185-00-00

1
Out of stock

23

. PLATE

510-14146-00-00

1
Out of stock

24

NEEDLE

(275-14116-23-00)

1
Out of stock

25

RING

(2X7-14194-00-00)

1
Out of stock

26

. PLUG SCREW SET

5F7-W1413-00-00

1
Out of stock

27

CLIP

3FA-14137-00-00

—
Out of stock

28

. SEAT, SPRING

3V3-14136-00-00

1
Out of stock

29

CAP

214-14118-00-00

—
Out of stock

30

. STARTER SET

26J-1410A-00-00

1
Out of stock

31

. PIPE, OVERFLOW

310-14196-00-00

1
Out of stock

32

CLIP, PIPE

(8F2-14139-00-00)

1
Out of stock

33

. JET, PILOT

193-14142-00-00

1
Out of stock

34

AIR SCREW SET

23X-14104-00-00

—
Out of stock

35

MANIFOLD, INTAKE

(5F7-13555-00-00)

1
Out of stock

36

BOLT,SOCKET

91317-06020-00

—
Out of stock

37

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

38

COVER, MIXING

5F7-14157-01-00

1
Out of stock
