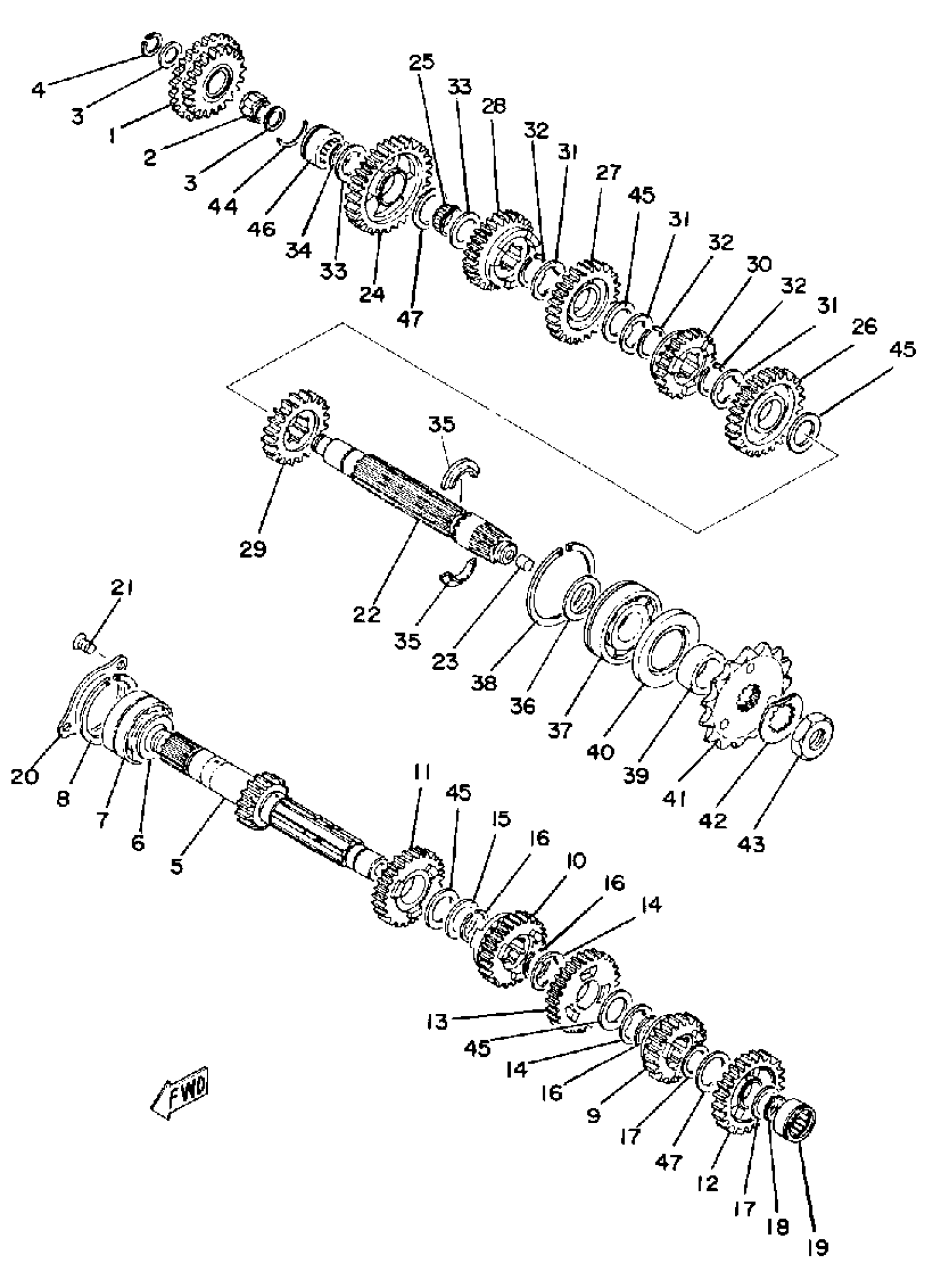

Yamaha TZ250G (TZ250) 1980 TRANSMISSION Diagram

#

Description
Price

1

IDLE GEAR ASSEMBLY

(328-15650-00-00)

Unavailable

2

BEARING, CYLINDER.#10

(93310-21564-00)

Unavailable

3

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

4

CIRCLIP(1AR)

99009-15400-00

$8.49

5

AXLE, MAIN

328-17411-00-00

Unavailable

6

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

6

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

7

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

8

CIRCLIP (168)

93440-52009-00

$11.49

9

GEAR, 2ND PINION

(328-17121-00-00)

Unavailable

10

GEAR, 3RD PINION

328-17131-00-00

Unavailable

11

GEAR, 4TH PINION

(328-17141-00-00)

Unavailable

12

GEAR, 5TH PINION

(328-17151-00-00)

Unavailable

13

GEAR, 6TH PINION

(328-17161-00-00)

Unavailable

14

WASHER 328172160000

90209-21105-00

$8.49

15

WASHER PLATE 152172260000

90201-25490-00

Unavailable

16

CIRCLIP (4L0)

93440-25084-00

Unavailable

17

WASHER PLATE 132172160000

90201-20266-00

Unavailable

18

CIRCLIP(1AR)

99009-20400-00

Unavailable

19

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

Unavailable

20

PLATE, COVER

360-17471-00-00

Unavailable

21

SCREW, FLAT

98707-06014-00

Unavailable

22

AXLE, DRIVE

(328-17421-01-00)

Unavailable

23

PLUG, TAPER

(90336-09002-00)

Unavailable

24

GEAR, 1ST WHEEL

(328-17211-00-00)

Unavailable

25

BRG,CYL-CAL ROLLER 7G NT

93310-22057-00

Unavailable

26

GEAR, 2ND WHEEL

(328-17221-00-00)

Unavailable

27

GEAR, 3RD WHEEL

328-17231-00-00

Unavailable

28

GEAR, 4TH WHEEL

(328-17241-00-00)

Unavailable

29

GEAR, 5TH WHEEL

(328-17251-00-00)

Unavailable

30

GEAR, 6TH WHEEL

(328-17261-00-00)

Unavailable

31

WASHER 328172160000

90209-21105-00

$8.49

32

CIRCLIP (4L0)

93440-25084-00

Unavailable

33

WASHER PLATE 328171160000

90201-20276-00

Unavailable

34

CIRCLIP(1AR)

99009-20400-00

Unavailable

35

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

36

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

36

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

37

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

38

CIRCLIP

278-17424-01-00

Unavailable

39

COLLAR(1AE)

90387-253M9-00

Unavailable

40

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

41

SPROCKET, DRIVE

9383E-16105-00

Unavailable

41

SPROCKET, DRIVE

(170-17461-80-00)

Unavailable

41

SPROCKET, DRIVE

(170-17461-90-00)

Unavailable

41

SPROCKET, DRIVE

9383E-13032-00

Unavailable

41

SPROCKET, DRIVE

9383E-14056-00

Unavailable

41

SPROCKET, DRIVE

9383E-15083-00

Unavailable

41

SPROCKET, DRIVE

(9383E-17122-00)

Unavailable

42

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

43

NUT 152174630000

90179-18020-00

Unavailable

44

CIR CLIP

278-17425-00-00

Unavailable

45

SHIM 1

328-17427-00-01

Unavailable

45

SHIM 1

328-17427-00-02

Unavailable

45

SHIM 1

328-17427-00-03

Unavailable

46

BEARING, CYL.#11

93311-42045-00

Unavailable

47

SHIM 1

156-17417-00-01

Unavailable

47

SHIM 1 (25.1-31-0.2)

156-17417-00-02

Unavailable

47

SHIM 1

156-17417-00-03

Unavailable
