Description

Price

1

GEAR, DRIVE

(278-17831-00-00)

Unavailable

2

AXLE, DRIVE GEAR

(278-17861-00-00)

Unavailable

3

CIRCLIP

99006-10600-00

$9.49

4

BUSH (214-17843-00)

90381-08002-00

$11.49

5

BUSH, SOLID

(90380-14040-00)

Unavailable

6

GEAR, PRIMARY

(280-17851-00-00)

Unavailable

7

PIN,DOWEL (137)

93603-22028-00

$3.76

8

WASHER, PLATE(52H)

90201-105J4-00

$9.49

9

CIRCLIP(2R6)

99001-08600-00

$8.49

10

STOPPER

(278-17812-00-00)

Unavailable

11

SCREW, FLAT

98707-05012-00

$1.71

12

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

Unavailable

13

O-RING (137)

93210-13016-00

$7.49

14

GEAR, DRIVEN

214-17841-01-00

Unavailable

15

BUSH (214-17843-00)

90381-08002-00

$11.49

16

STOPPER

5U7-17812-00-00

Unavailable

17

BOLT(3JP)

97017-06010-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

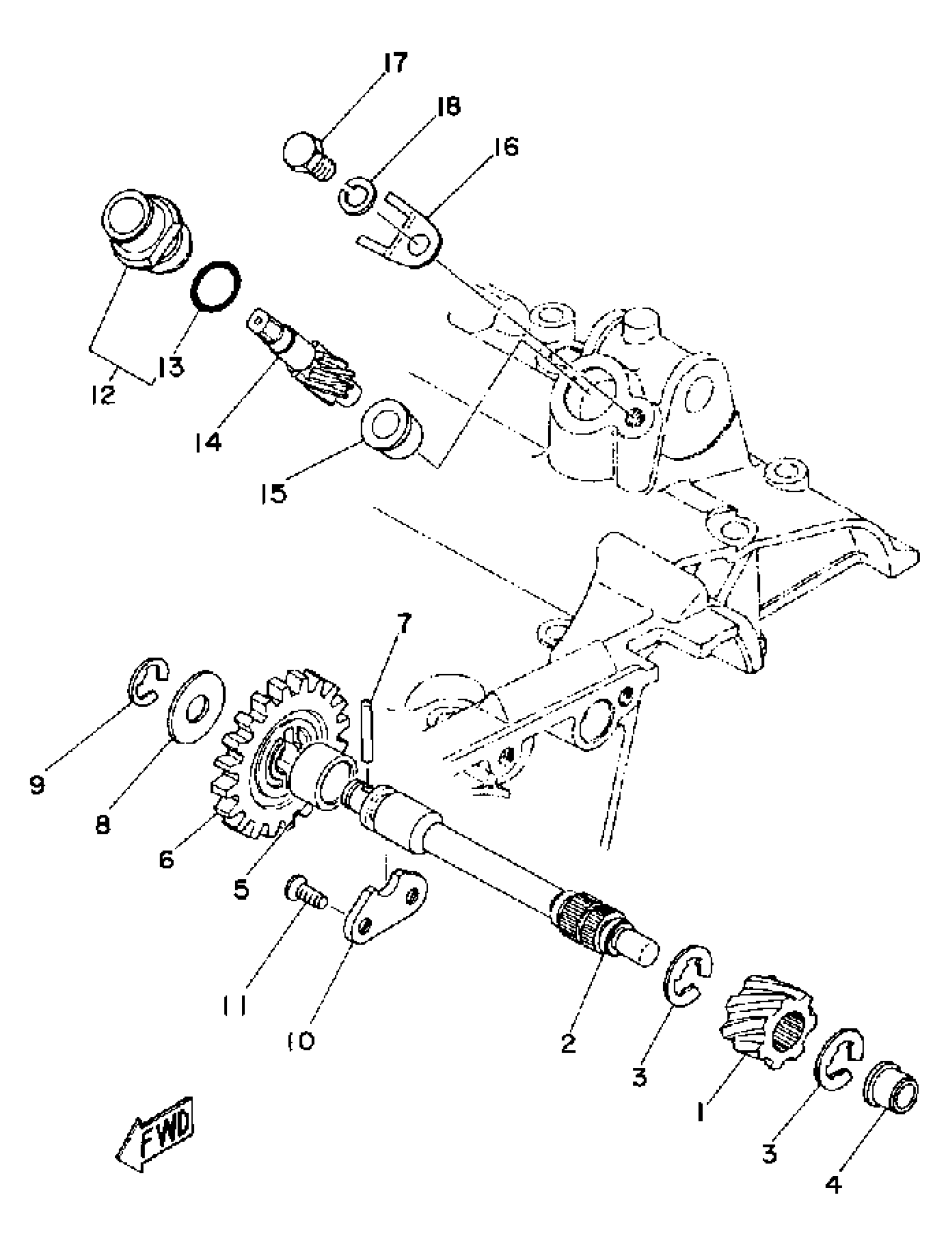

Yamaha TZ250G (TZ250) 1980 TACHOMETER GEAR Diagram

GEAR, DRIVE

AXLE, DRIVE GEAR

CIRCLIP

BUSH (214-17843-00)

BUSH, SOLID

GEAR, PRIMARY

PIN,DOWEL (137)

WASHER, PLATE(52H)

CIRCLIP(2R6)

STOPPER

SCREW, FLAT

HOUSING ASSEMBLY, TACH (214-17811-01)

O-RING (137)

GEAR, DRIVEN

BUSH (214-17843-00)

STOPPER

BOLT(3JP)

WASHER, SPRING
