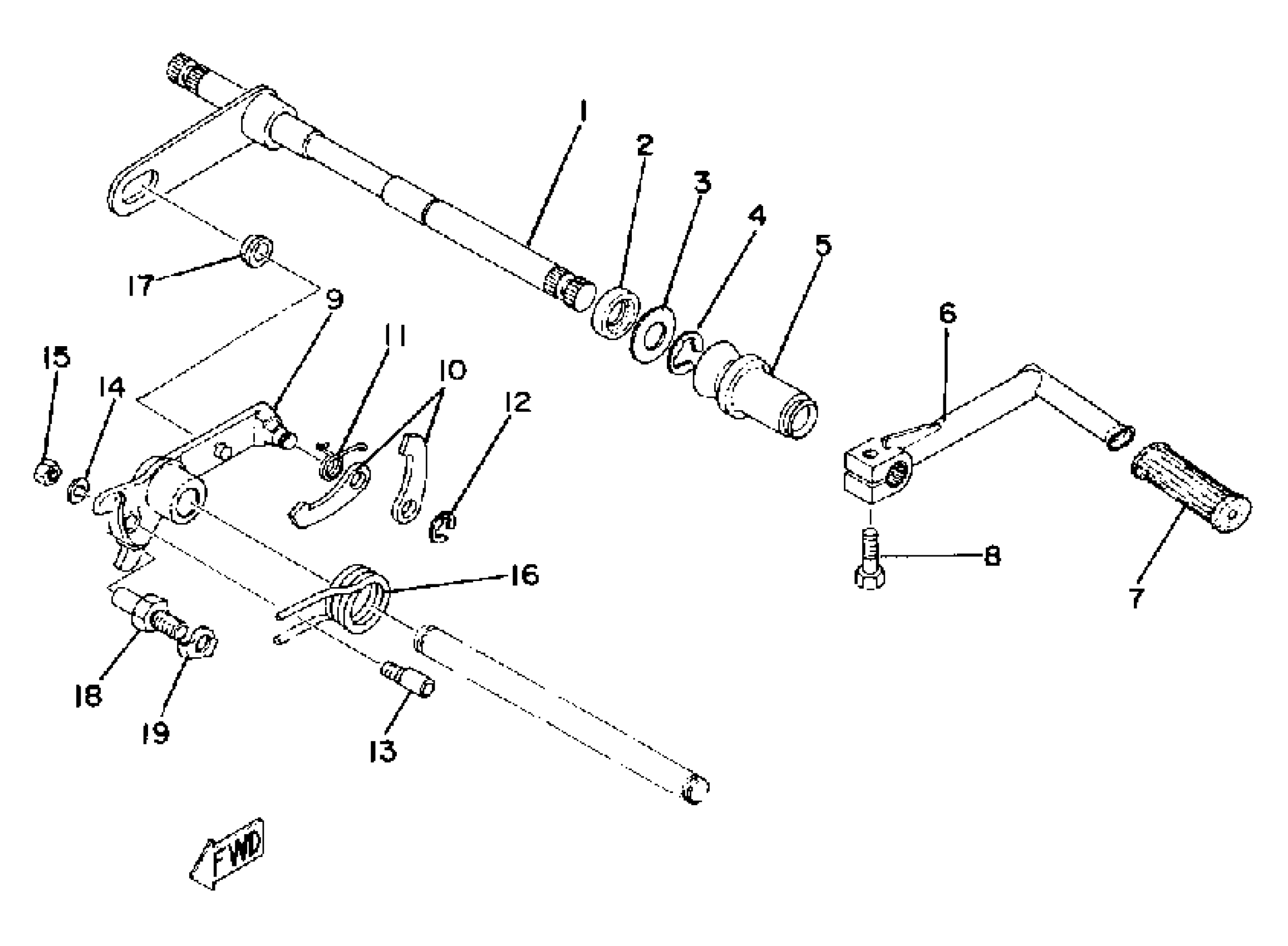

Yamaha TZ250G (TZ250) 1980 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

CHANGE SHAFT ASSEMBLY

383-18101-01-00

Unavailable

2

SEAL, OIL (30X)

93102-12321-00

$12.49

3

WASHER, PLATE (353)

90201-12575-00

$8.49

4

CIRCLIP

99006-10600-00

$9.49

5

BOOT, SEALING

278-18131-00-00

Unavailable

6

PEDAL, SHIFT

3G2-18111-00-00

Unavailable

7

COVER

240-18113-00-00

$18.49

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

BRACKET

328-18128-00-00

Unavailable

10

LEVER, SHIFT 3

(328-18151-00-00)

Unavailable

11

SPRING, TORSION

90508-08007-00

Unavailable

12

CIRCLIP

99080-07600-00

Unavailable

13

SCREW 214181860000

90149-06017-00

$7.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

SPRING, TORSION

90508-32055-00

Unavailable

17

ROLLER, SHIFT LEVER

214-18178-00-00

Unavailable

18

STOPPER, SCREW

278-18127-01-00

Unavailable

19

WASHER

90215-08015-00

Unavailable
