Description

Price

1

SHK/ABS ASSEMBLY, REAR

(4A1-22210-00-00)

Unavailable

2

BUSH, RR SHOCK ABS

(3G2-22216-00-00)

Unavailable

3

CIRCLIP, INNER

(93450-24062-00)

Unavailable

4

. PIN, DOWEL

93604-26132-00

Unavailable

5

BUSH, SOLID (1M1)

90380-12051-00

$15.99

6

GUIDE, SPRING 1

(3G2-22214-00-00)

Unavailable

7

SPRING, COMPRESSION

(90501-85544-00)

Unavailable

8

BOLT

(90109-12434-00)

Unavailable

9

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

10

NUT, HEXAGON SMALL

95317-12700-00

$8.49

11

PIN, COTTER(6L5)

91490-25030-00

$3.77

12

COVER, THRUST

1W1-22128-00-00

$19.49

13

PIN,CLEVIS

90240-12059-00

Unavailable

14

WASHER, PLATE(663)

92990-12600-00

$8.49

15

PIN, COTTER

91490-30030-00

$8.49

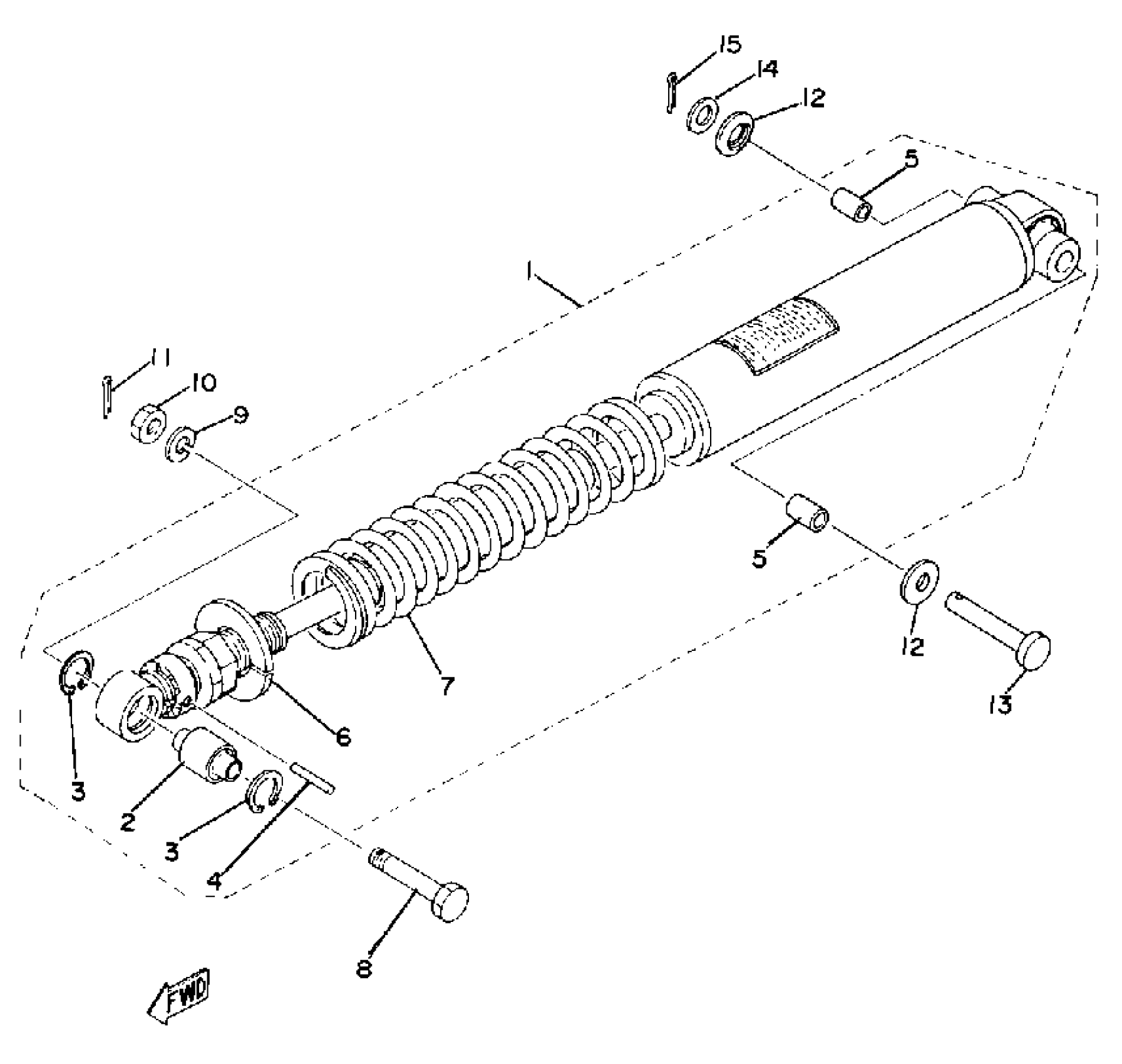

Yamaha TZ250G (TZ250) 1980 REAR SUSPENSION Diagram

SHK/ABS ASSEMBLY, REAR

BUSH, RR SHOCK ABS

CIRCLIP, INNER

. PIN, DOWEL

BUSH, SOLID (1M1)

GUIDE, SPRING 1

SPRING, COMPRESSION

BOLT

YBS67-12 WASHER,SPRING

NUT, HEXAGON SMALL

PIN, COTTER(6L5)

COVER, THRUST

PIN,CLEVIS

WASHER, PLATE(663)

PIN, COTTER
