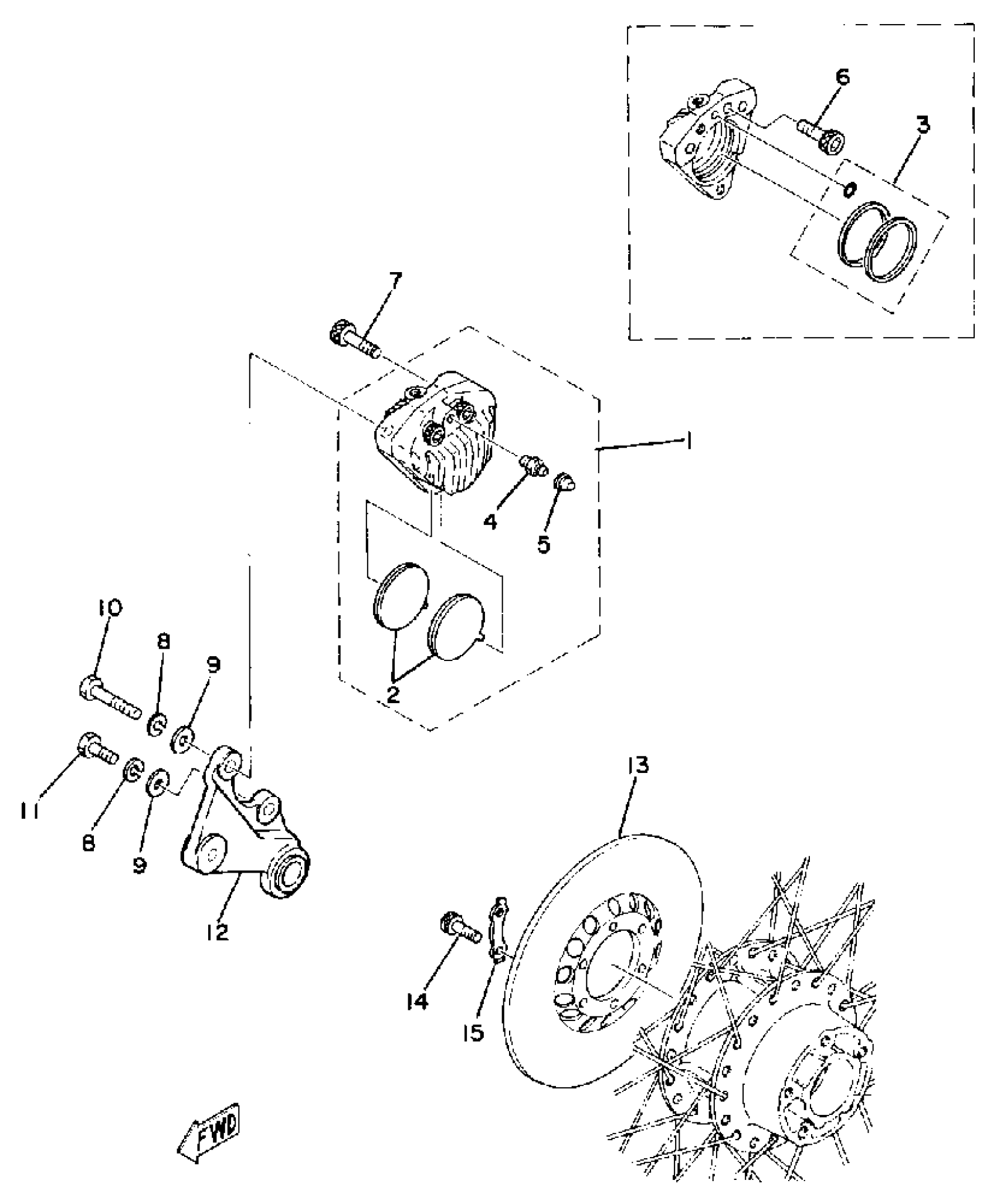

Yamaha TZ250G (TZ250) 1980 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSEMBLY

(1X2-25810-00-00)

Unavailable

2

BRAKE PAD KIT, FRNT

(1X2-W0045-00-00)

Unavailable

3

. CALIPER SEAL KIT

1X2-W0047-00-00

Unavailable

4

. SCREW, BLEED

306-25824-00-00

Unavailable

5

CAP

306-25825-01-00

$8.14

6

BOLT, SOCKET

91317-10030-00

$6.39

7

BOLT,SOCKET

91317-10040-00

$3.85

8

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

8

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

9

WASHER, PLATE

92990-10600-00

$2.57

10

BOLT, CALIPER

(1X2-25818-01-00)

Unavailable

11

BOLT, CALIPER

(1X2-25818-41-00)

Unavailable

12

BRACKET, CALIPER

(3G2-25819-00-00)

Unavailable

13

DISC, BRAKE

(1H3-25831-00-00)

Unavailable

14

BOLT

90109-08432-00

Unavailable

15

WASHER, LOCK (447)

341-25412-00-00

Unavailable
