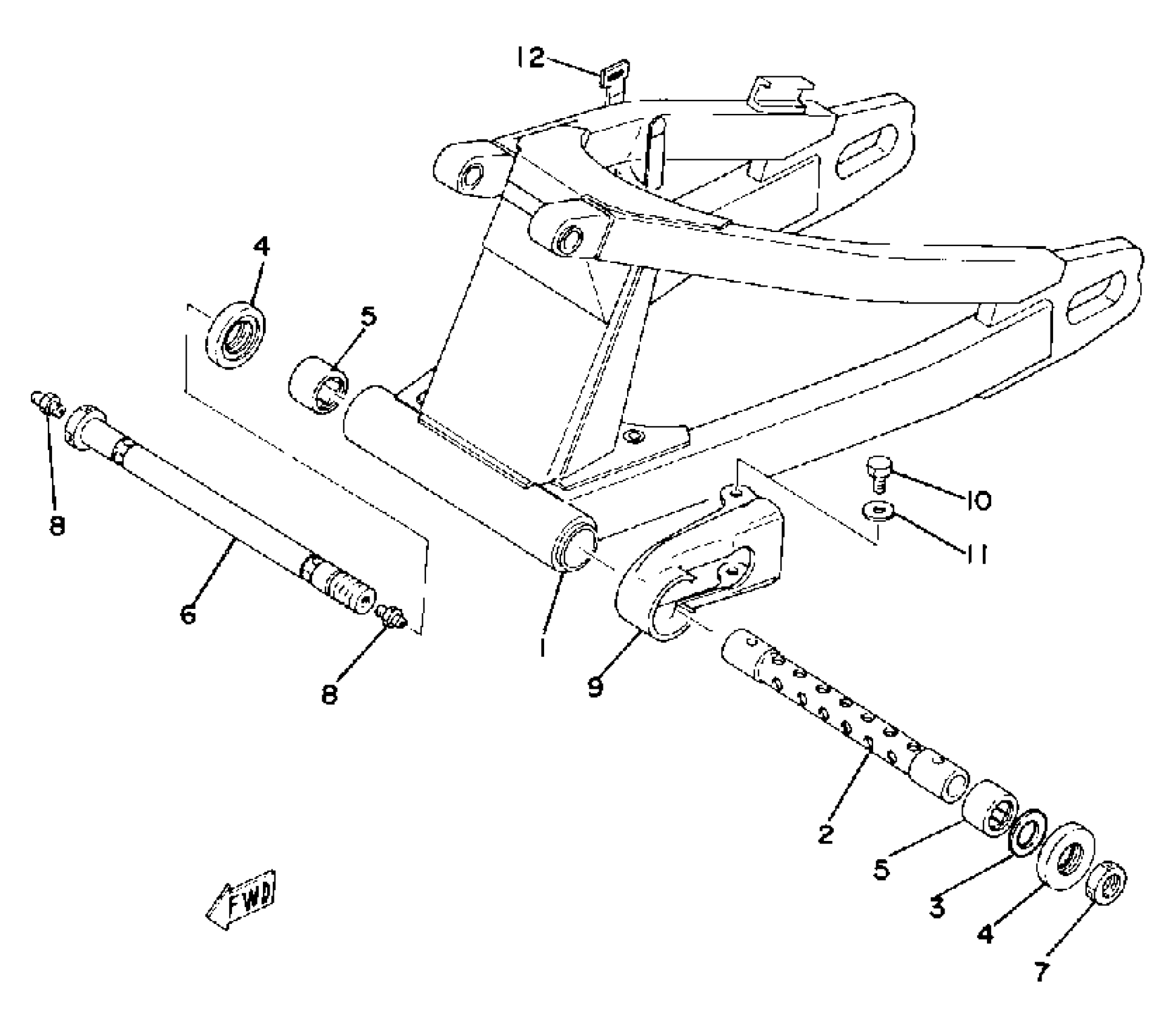

Yamaha TZ250G (TZ250) 1980 REAR ARM Diagram

#

Description

Price

1

REAR ARM

(3G2-22110-00-35)

Unavailable

2

BUSH 2

1H3-22124-00-00

Unavailable

3

SHIM (90201-22284)

648-45533-00-02

Unavailable

3

WASHER, PLATE

90201-22284-04

$2.82

4

BEARING, THRUST

93342-22205-00

$70.99

5

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

6

SHAFT, PIVOT

(1H3-22141-00-00)

Unavailable

7

NUT, SPEC''L SHAPE

90179-16028-00

Unavailable

8

NIPPLE, GREASE

93700-06M03-00

Unavailable

9

SEAL, GUARD

3G2-22151-00-00

Unavailable

10

BOLT (661)

97013-06012-00

$5.60

11

WASHER, SPEC''L SHAP (812-82327-00) 001

90209-06064-00

Unavailable

12

BAND

341-26397-01-00

Unavailable
