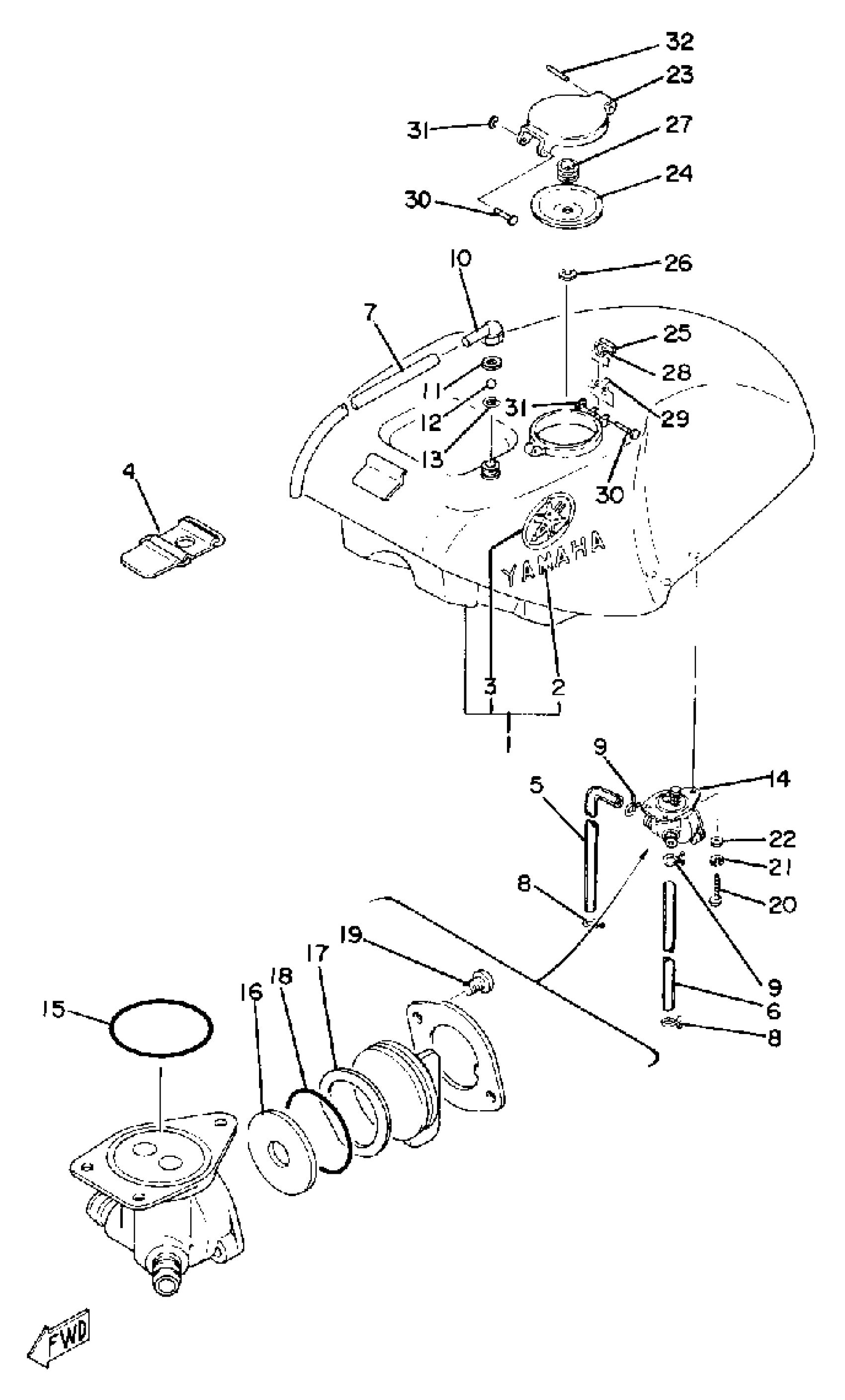

Yamaha TZ250G (TZ250) 1980 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(3G2-24110-00-01)

Unavailable

2

EMBLEM, YAMAHA

99245-00140-00

Unavailable

3

EMBLEM 2

1X2-24162-00-00

Unavailable

4

BAND, TNK FITTING 1

240-24173-00-00

Unavailable

5

HOSE

90445-11451-00

Unavailable

6

HOSE (L198)

90445-11293-00

$9.49

7

HOSE (395-14197-00)

90446-07094-00

Unavailable

8

CLIP

90467-100A1-00

$7.49

9

CLIP(1JH)

90467-11106-00

$3.76

10

NUT, BREATHER

143-24681-00-00

Unavailable

11

GASKET

90430-10150-00

Unavailable

12

BALL, VALVE

143-24684-00-00

Unavailable

13

CLIP, BALL HOLDER

143-24685-00-00

Unavailable

14

FUEL COCK ASSEMBLY 1

(3G2-24500-00-00)

Unavailable

15

GASKET

(3G2-24512-00-00)

Unavailable

16

VALVE

16G-24523-00-00

Unavailable

17

. WASHER, WAVE

16G-24518-00-00

Unavailable

18

O-RING

2G2-24534-00-00

Unavailable

19

SCREW PAN HEAD

98580-03010-00

Unavailable

20

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

. BODY, CAP

294-24611-00-00

Unavailable

24

. GASKET, CAP

294-24612-00-00

Unavailable

25

HOOK

256-24628-00-00

Unavailable

26

CIRCLIP(53L)

99001-06600-00

Unavailable

27

SPRING, CAP

90501-20130-00

Unavailable

28

O-RING (26H)

93210-06632-00

Unavailable

29

SPRING, TORSION (256-24637-00)

90508-08223-00

Unavailable

30

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

31

CIRCLIP (604)

93430-02001-00

Unavailable

32

PIN, SPRING

91609-25032-00

Unavailable
