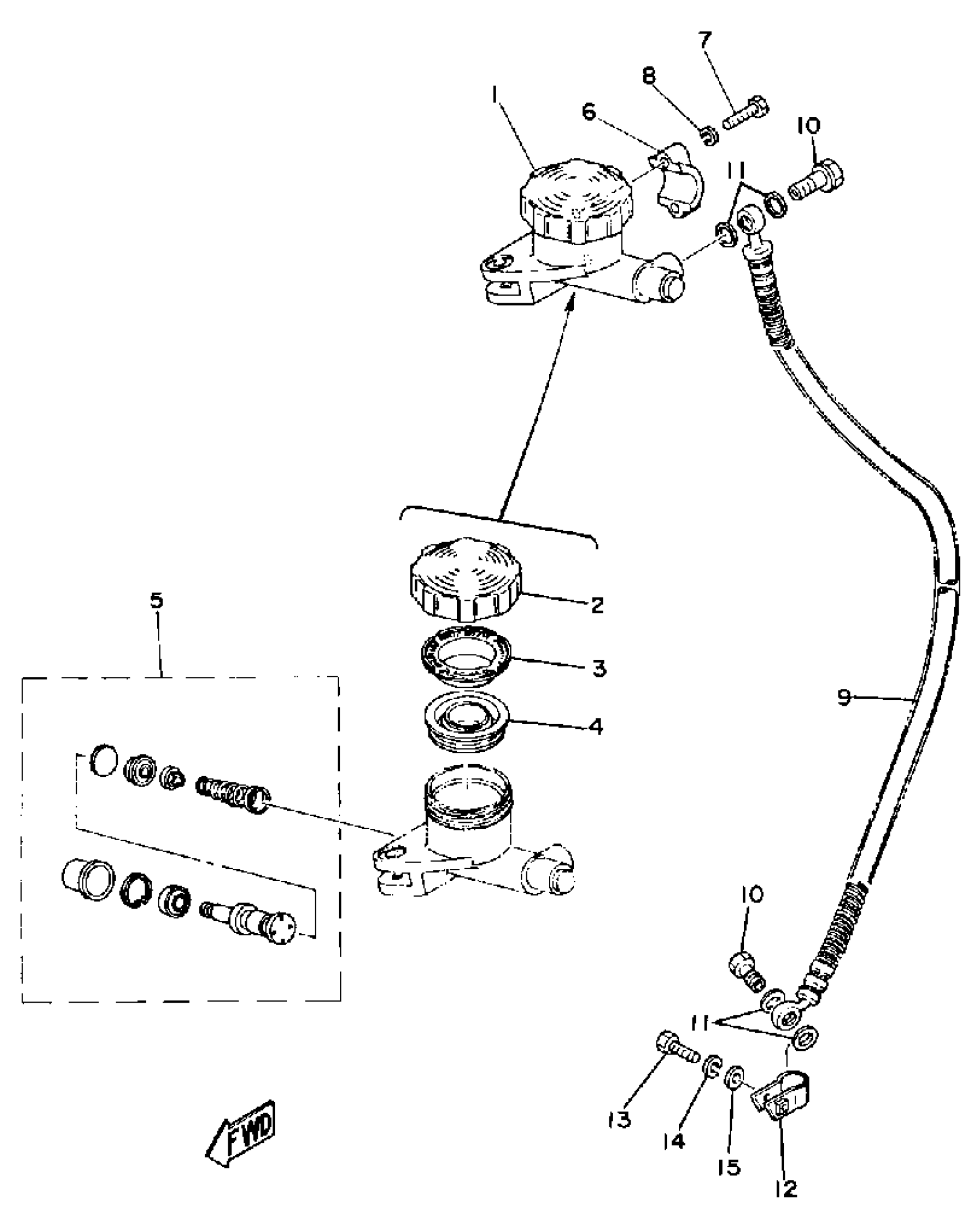

Yamaha TZ250G (TZ250) 1980 FRONT MASTER CYLINDER Diagram

#

Description

Price

1

MSTR CYLINDER ASSEMBLY

(1H3-25850-00-00)

Unavailable

2

CAP, RESERVOIR

(409-25852-00-00)

Unavailable

3

BUSH, DIAPHRAGM

(409-25855-00-00)

Unavailable

4

DIAPHRAGM RESERVOR

(409-25854-00-00)

Unavailable

5

. CYLINDER KIT, MASTER (REF NO 3~9)

535-W0041-10-00

Unavailable

6

BRACKET, MASTER

1J3-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

HOSE, BRAKE 2

(3G2-25873-00-00)

Unavailable

10

BOLT, UNION

(90401-10062-00)

Unavailable

11

WASHER, PLATE(481)

90201-10118-00

Unavailable

12

HOLDER, BRKE HOSE 2

(2R8-25876-00-00)

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80
