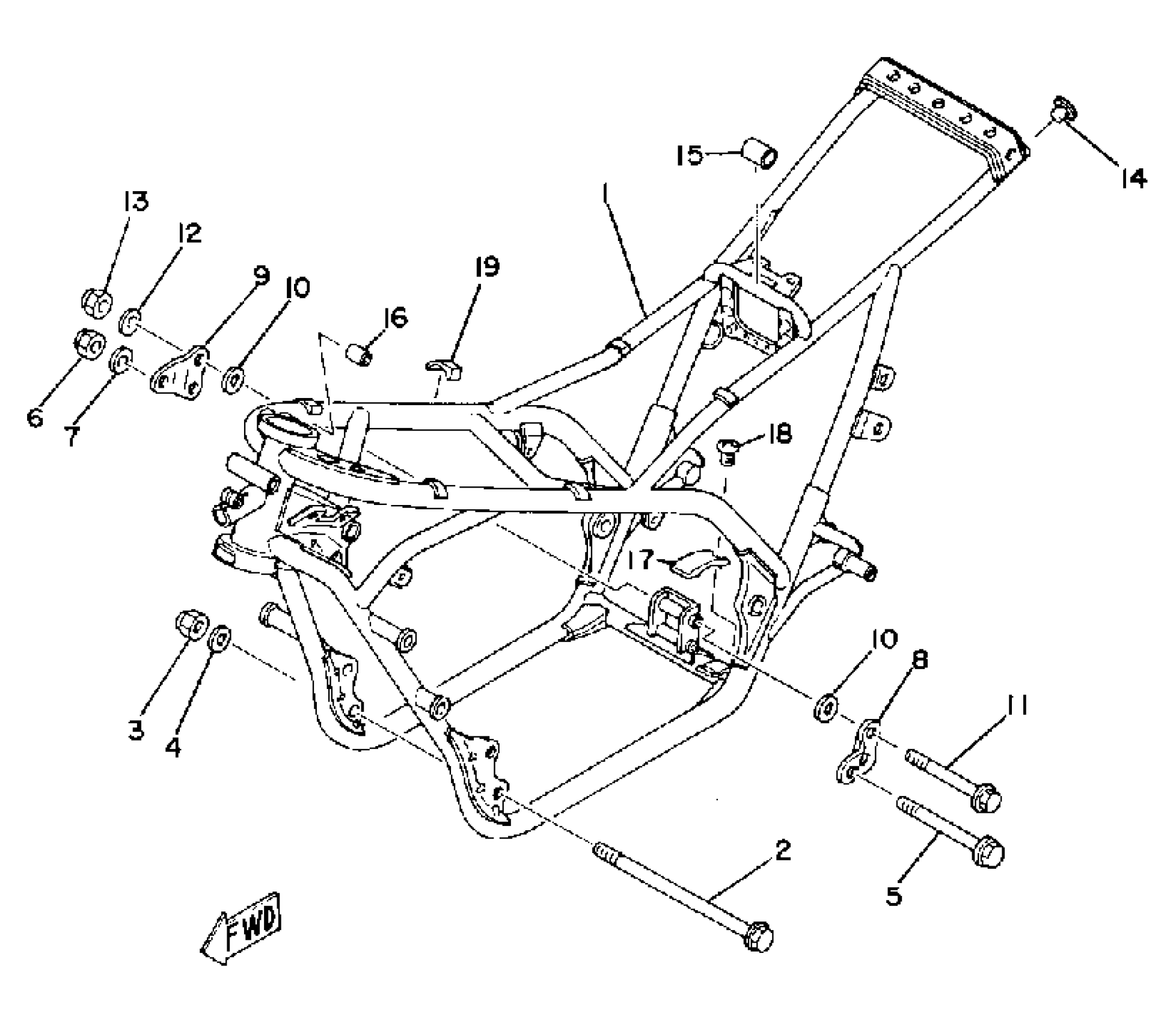

Yamaha TZ250G (TZ250) 1980 FRAME Diagram
#
Description
Price
1
FRAME
(3G2-21110-01-33)
Unavailable
2
BOLT, WASHER BASED
90105-08034-00
Unavailable
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
BOLT
90101-10313-00
Unavailable
7
WASHER, PLATE
92990-10600-00
Unavailable
8
STAY, ENGINE 1
1H3-21314-00-00
Unavailable
9
STAY, ENGINE 7
(1H3-21387-00-00)
Unavailable
10
WASHER, PLAIN
92990-08200-00
Unavailable
12
.. WASHER, PLATE
92990-08600-00
Unavailable
15
DAMPER, LOCATING 2
3G2-24182-00-00
Unavailable
16
DAMPER, LOCATING 1
(3G2-24181-00-00)
Unavailable
17
PROTECTOR
(3G2-2117G-00-00)
Unavailable
18
SCREW(617)
98780-05012-00
Unavailable
19
DAMPER,LOCATING 1
240-24181-00-00
Unavailable
