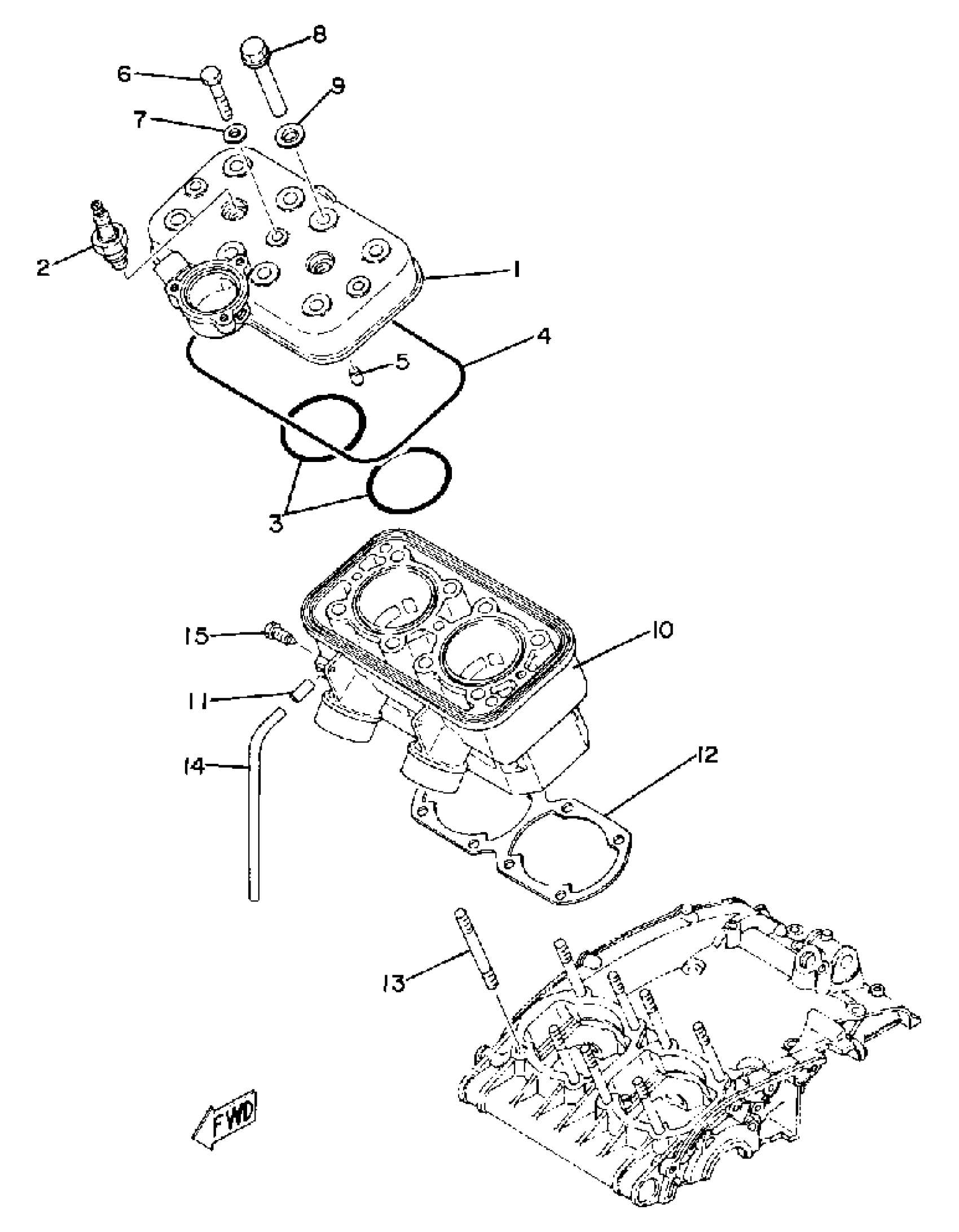

Yamaha TZ250G (TZ250) 1980 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(1H3-11111-01-00)

Unavailable

2

CHAMPION N82G 10PK

(CMP-N82G0-00-00)

Unavailable

3

O-RING (4H7)

93210-69434-00

$13.49

4

O-RING

93211-94212-00

Unavailable

5

P1N, DOWEL

99590-10014-00

Unavailable

6

BOLT, FLANGE(3EB)

95024-08055-00

$8.49

7

WASHER, PLATE 3411117500

90201-08087-00

$3.71

8

NUT, SPEC''L SHAPE

90179-08187-00

Unavailable

9

WASHER, PLATE 3412175700

90201-12172-00

$3.93

10

CYLINDER 1

4A1-11311-00-00

Unavailable

11

NIPPLE, HOSE 1

383-11375-00-00

Unavailable

12

GASKET, CYLINDER

383-11351-02-00

$37.99

13

BOLT, STUD

(90116-08213-00)

Unavailable

14

HOSE

(3G2-11377-00-00)

Unavailable

15

PLUG, STRAIGHT SCRW (383-11374-00)

90340-10016-00

Unavailable
