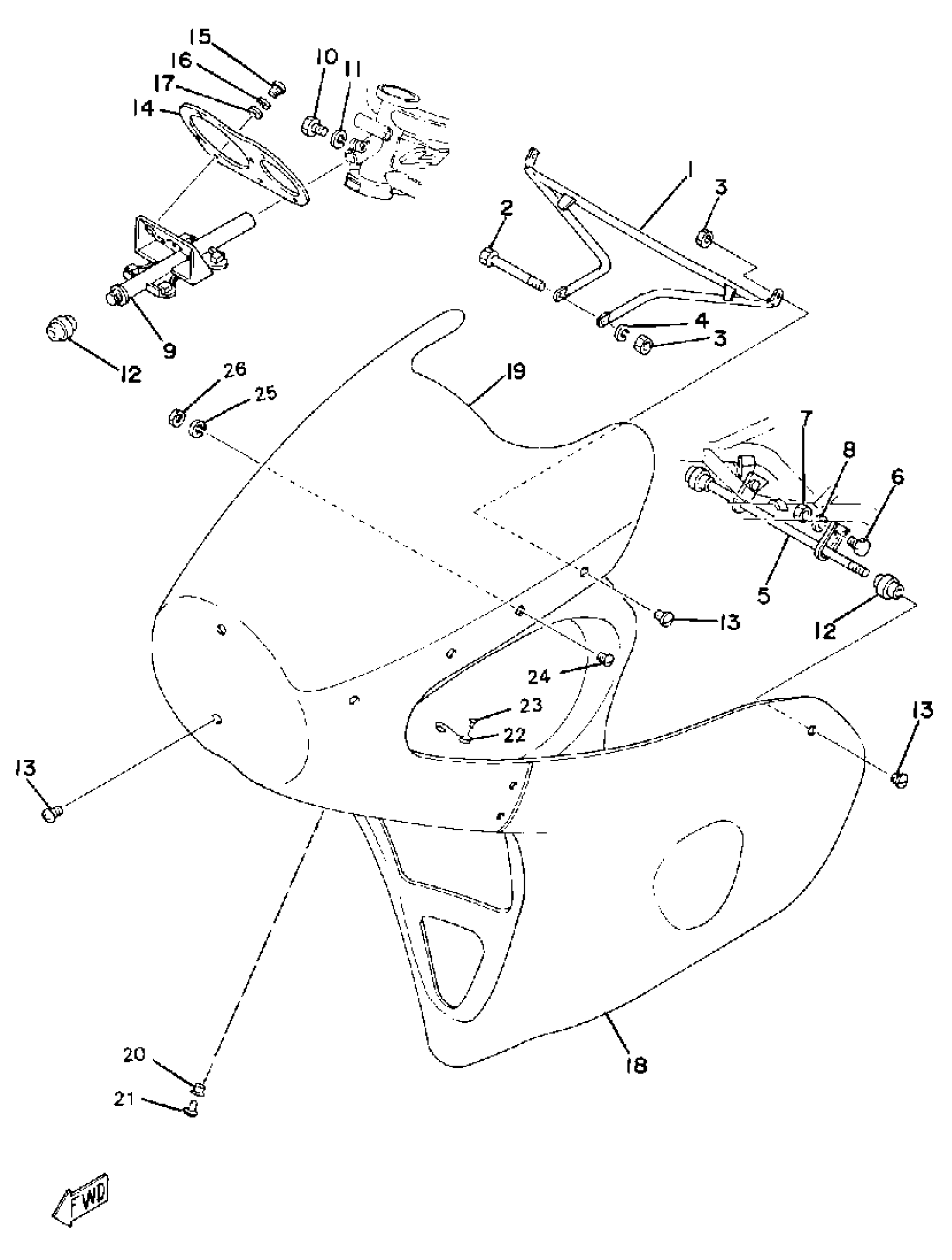

Yamaha TZ250G (TZ250) 1980 COWLING Diagram

#

Description
Price

1

STAY 2

(3G2-28357-00-00)

Unavailable

2

BOLT(7LR)

97027-06080-00

$7.49

3

NUT, NYLON

95707-06300-00

$3.50

4

WASHER, SPRING

92995-06100-00

Unavailable

5

STAY 3

(240-28358-00-33)

Unavailable

6

BOLT(JA9)

90101-08691-00

$4.29

7

NUT(6L2)

95333-08600-00

$2.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

STAY 1

(3G2-28356-00-00)

Unavailable

10

BOLT, HEXAGON

97013-08020-00

$1.16

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

DAMPER

240-28371-00-33

Unavailable

13

SCREW, ROUND HEAD(55K)

90150-06021-00

$8.49

14

STAY 3

(3V3-28358-00-00)

Unavailable

15

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

18

TZ250C RR FR W/WDS

(ACC-11110-75-05)

Unavailable

19

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

Unavailable

20

. HEAD

240-28386-00-00

Unavailable

21

RIVET

240-28389-00-00

Unavailable

22

SPRING

(240-28388-00-00)

Unavailable

23

RIVET, ROUND HEAD

(90260-02002-00)

Unavailable

24

SCREW, ROUND HEAD

90140-04012-00

Unavailable

25

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

26

NUT(6L4)

95380-04700-00

Unavailable
