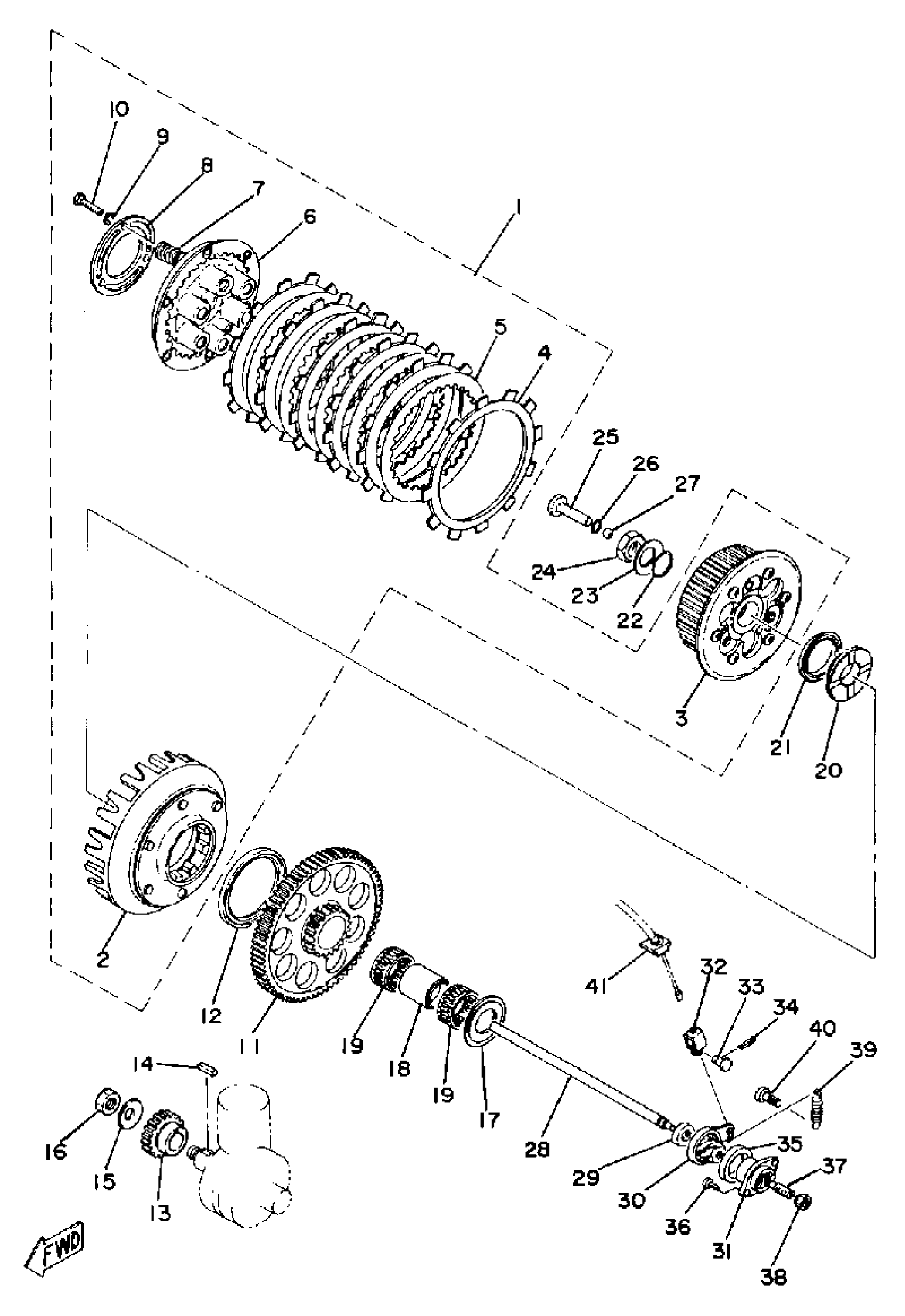

Yamaha TZ250G (TZ250) 1980 CLUTCH Diagram
#
1
CLUTCH ASSEMBLY
1H3-16301-10-00
Unavailable
2
BUFFER BOSS ASSEMBLY
(1H3-16160-10-00)
Unavailable
3
CLUTCH BOSS ASSEMBLY
328-16370-10-00
Unavailable
5
. PLATE, CLUTCH 1
328-16324-10-00
Unavailable
6
PRESSURE PLATE ASSEMBLY
(328-16350-10-00)
Unavailable
7
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
8
PLATE, PRESSURE 2
(328-16352-00-00)
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
11
PRI DRVN GEAR
(1H3-16170-00-00)
Unavailable
13
GEAR, PRI DRIVE
(329-16111-00-00)
Unavailable
15
SPRING
214-16119-00-00
Unavailable
16
NUT
90170-16425-00
Unavailable
17
PLATE, THRUST
360-16154-00-00
Unavailable
18
SPACER
278-16181-01-00
Unavailable
19
BEARING, CYLINDER.#10
93310-23356-00
Unavailable
20
SPACER 2
(328-16182-10-00)
Unavailable
21
OIL SEAL, OS-TYPE
93107-40006-00
Unavailable
22
O-RING
93210-22298-00
Unavailable
23
SPRING
214-16119-00-00
Unavailable
24
NUT
90170-18089-00
Unavailable
25
ROD, PUSH
174-16356-00-00
Unavailable
26
O-RING (1J7)
93210-09350-00
Unavailable
27
BALL
93505-16006-00
Unavailable
28
ROD, PUSH 2
1H3-16357-00-00
Unavailable
29
OIL SEAL(12E)
93109-08061-00
Unavailable
30
PUSH LEVER ASSEMBLY
360-16340-00-00
Unavailable
31
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
32
JOINT
214-16389-00-00
Unavailable
33
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
34
. PIN, COTTER
91401-10015-00
Unavailable
35
SEAL, DUST
214-16347-01-00
Unavailable
36
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
37
BOLT SET 256163430100
90113-08021-00
Unavailable
38
NUT
90179-08179-00
Unavailable
39
SPRING TENSION 360163450000
90506-10069-00
Unavailable
40
HOOK, SPRING
132-16346-00-00
Unavailable
41
HOLDER, CLCH CABLE
278-15441-00-00
Unavailable
