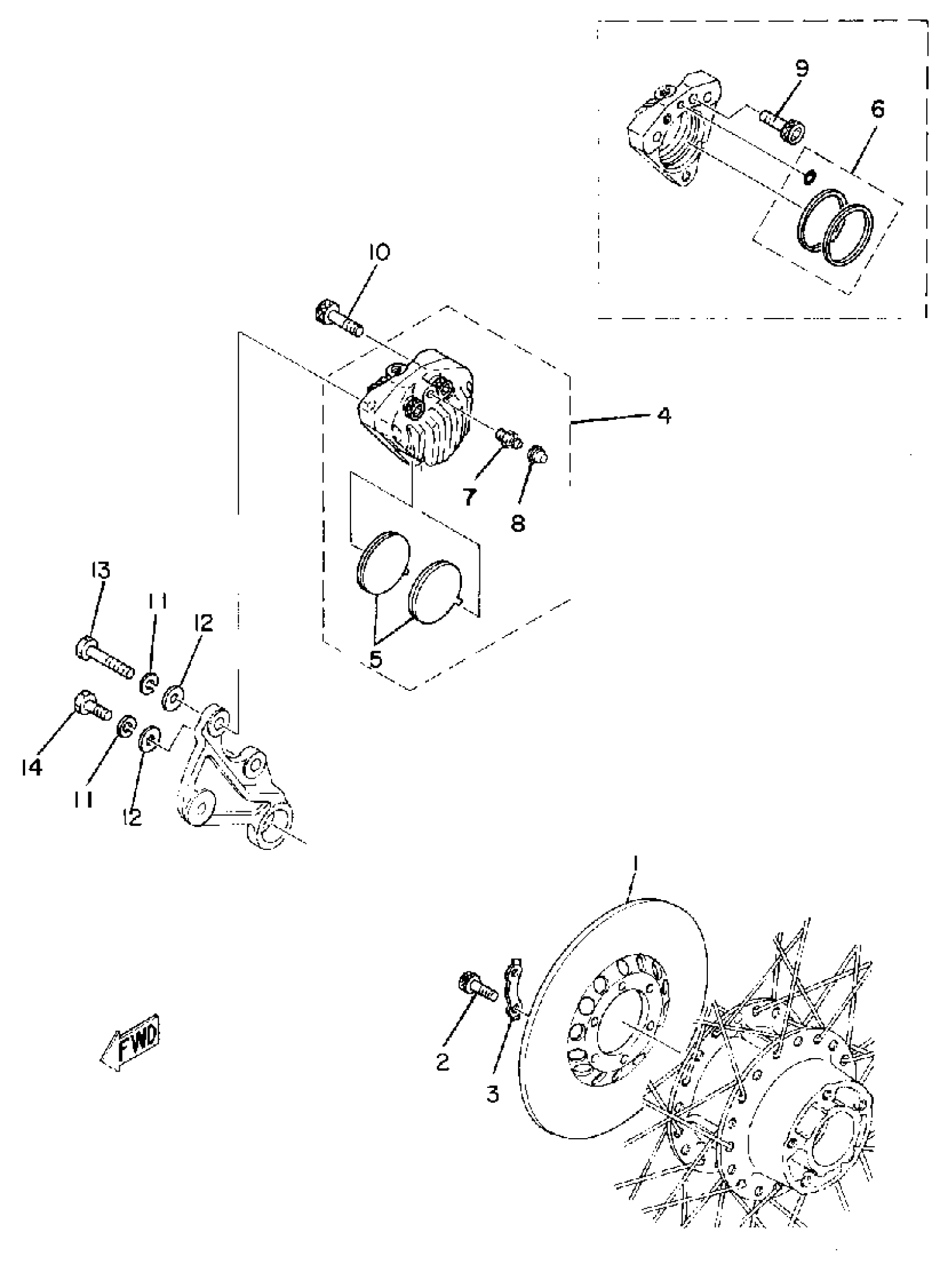

Yamaha TZ250F (TZ250) 1979 REAR DISC BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

(1H3-25831-00-00)

Unavailable

2

BOLT

90109-08432-00

Unavailable

3

WASHER, LOCK (447)

341-25412-00-00

$12.99

4

CALIPER ASSEMBLY

(1X2-25810-00-00)

Unavailable

5

BRAKE PAD KIT, FRNT

(1X2-W0045-01-00)

Unavailable

6

. SCREW, BLEED

306-25824-00-00

Unavailable

7

. SCREW, BLEED

306-25824-00-00

Unavailable

8

CAP

306-25825-01-00

$9.99

9

BOLT, SOCKET

91317-10030-00

$9.49

10

BOLT,SOCKET

91317-10040-00

$7.49

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

WASHER, PLATE

92990-10600-00

Unavailable

13

BOLT, CALIPER

(1X2-25818-01-00)

Unavailable

14

BOLT, CALIPER

(1X2-25818-41-00)

Unavailable
