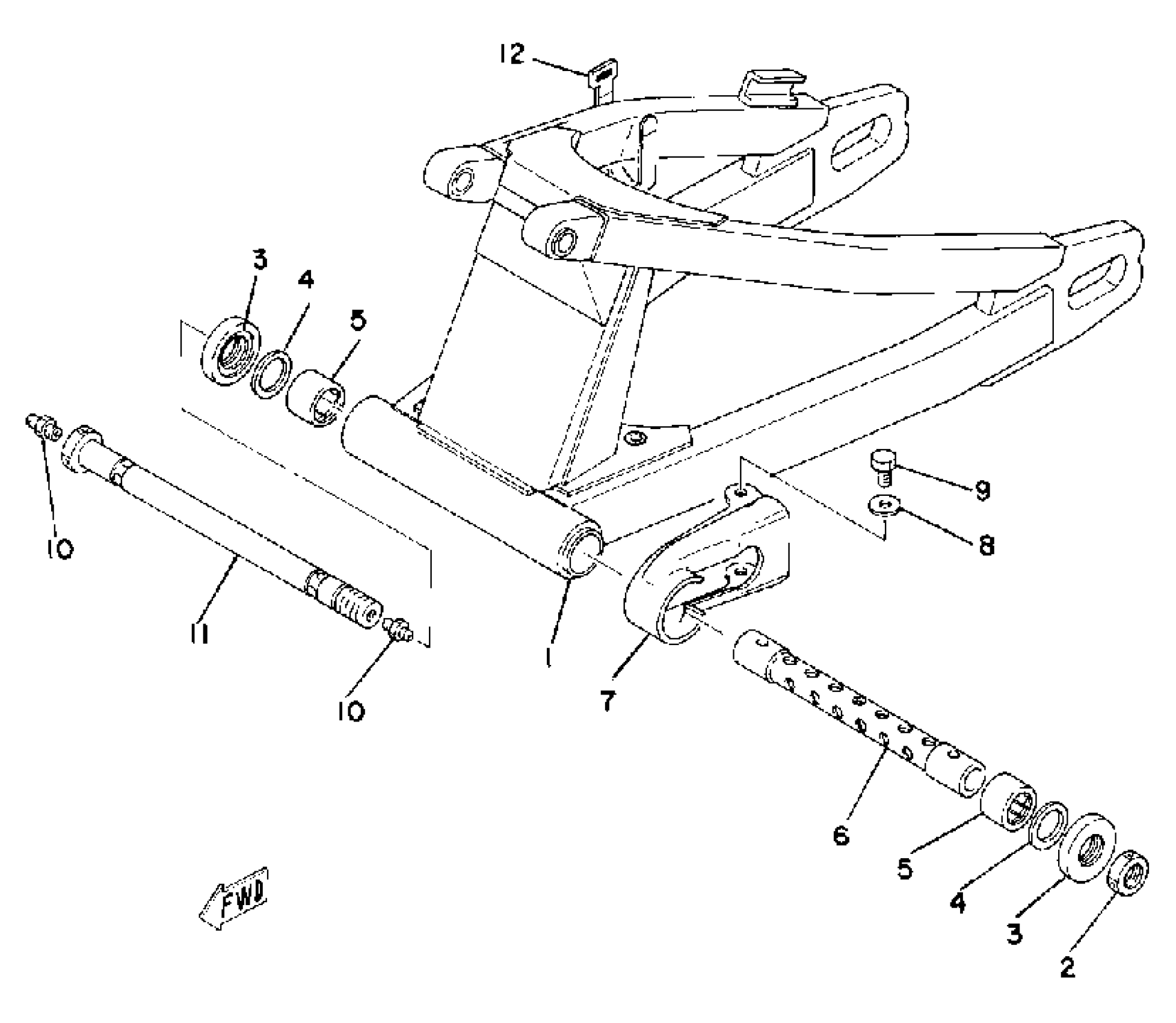

Yamaha TZ250F (TZ250) 1979 REAR ARM Diagram

#

Description

Price

1

REAR ARM

(3G2-22110-00-35)

Unavailable

2

NUT, SPEC''L SHAPE

90179-16028-00

Unavailable

3

BEARING, THRUST

93342-22205-00

$70.99

4

SHIM (90201-22284)

648-45533-00-02

Unavailable

5

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

6

BUSH 2

1H3-22124-00-00

Unavailable

7

SEAL, GUARD

3G2-22151-00-00

Unavailable

8

WASHER, SPEC''L SHAP (812-82327-00) 001

90209-06064-00

Unavailable

9

BOLT (661)

97013-06012-00

$5.60

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

SHAFT, PIVOT

(1H3-22141-00-00)

Unavailable

12

BAND, SWITCH CORD

25G-83936-01-00

$4.78
