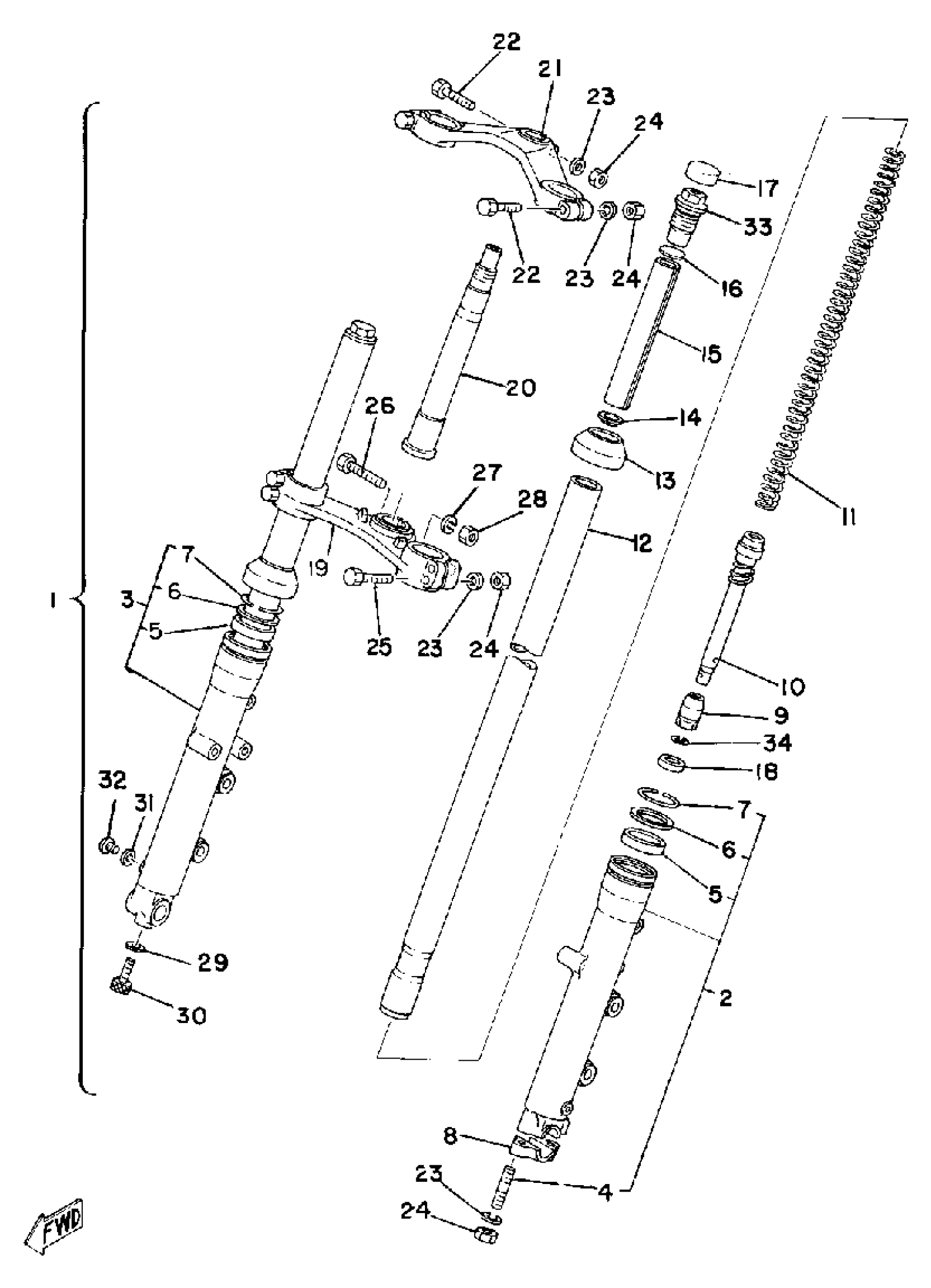

Yamaha TZ250F (TZ250) 1979 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(3G2-23101-01-00)

Unavailable

2

TUBE, OUTER 1

(3G2-23126-01-00)

Unavailable

3

TUBE, OUTER 2

(3G2-23136-01-00)

Unavailable

4

BOLT, STUD (278)

90116-08261-00

$4.77

5

OIL SEAL

4G0-23145-00-00

Unavailable

6

WASHER, OIL SEAL

341-23146-50-00

$10.99

7

CLIP, OIL SEAL

341-23156-50-00

$32.99

8

HOLDER,AXLE

341-23167-50-00

Unavailable

9

SPINDLE, TAPER

(3G2-23173-00-00)

Unavailable

10

CYLINDER, FRTFRK

(3G2-23170-01-00)

Unavailable

11

SPRING, FRONT FORK

(3G2-23141-02-00)

Unavailable

12

TUBE, INNER 1

(3G2-23124-00-00)

Unavailable

13

SEAL, DUST

1T3-23144-50-00

Unavailable

14

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

15

SPACER

11H-23118-00-00

Unavailable

16

. WASHER, SPRING UPR

2H7-23149-00-00

Unavailable

17

. CAP, FRONT FORK

2F0-23168-00-00

Unavailable

18

CAP, AIR VALVE

(3G2-23184-00-00)

Unavailable

19

UNDER BRACKET

(3G2-23340-00-00)

Unavailable

20

SHAFT, STEERING

(3G2-23341-00-00)

Unavailable

21

CROWN, HANDLE

(1H3-23435-00-00)

Unavailable

22

BOLT

90101-08263-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

25

BOLT, FLAT HEAD

(97281-08055-00)

Unavailable

26

BOLT 2

(322-23356-00-00)

Unavailable

27

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

27

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

28

NUT

(322-23357-00-00)

Unavailable

29

GASKET

509-23158-L0-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

31

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

32

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

32

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

33

BOLT, CAP

(3G2-23111-00-00)

Unavailable

34

CIRCLIP

(3G2-23183-00-00)

Unavailable
