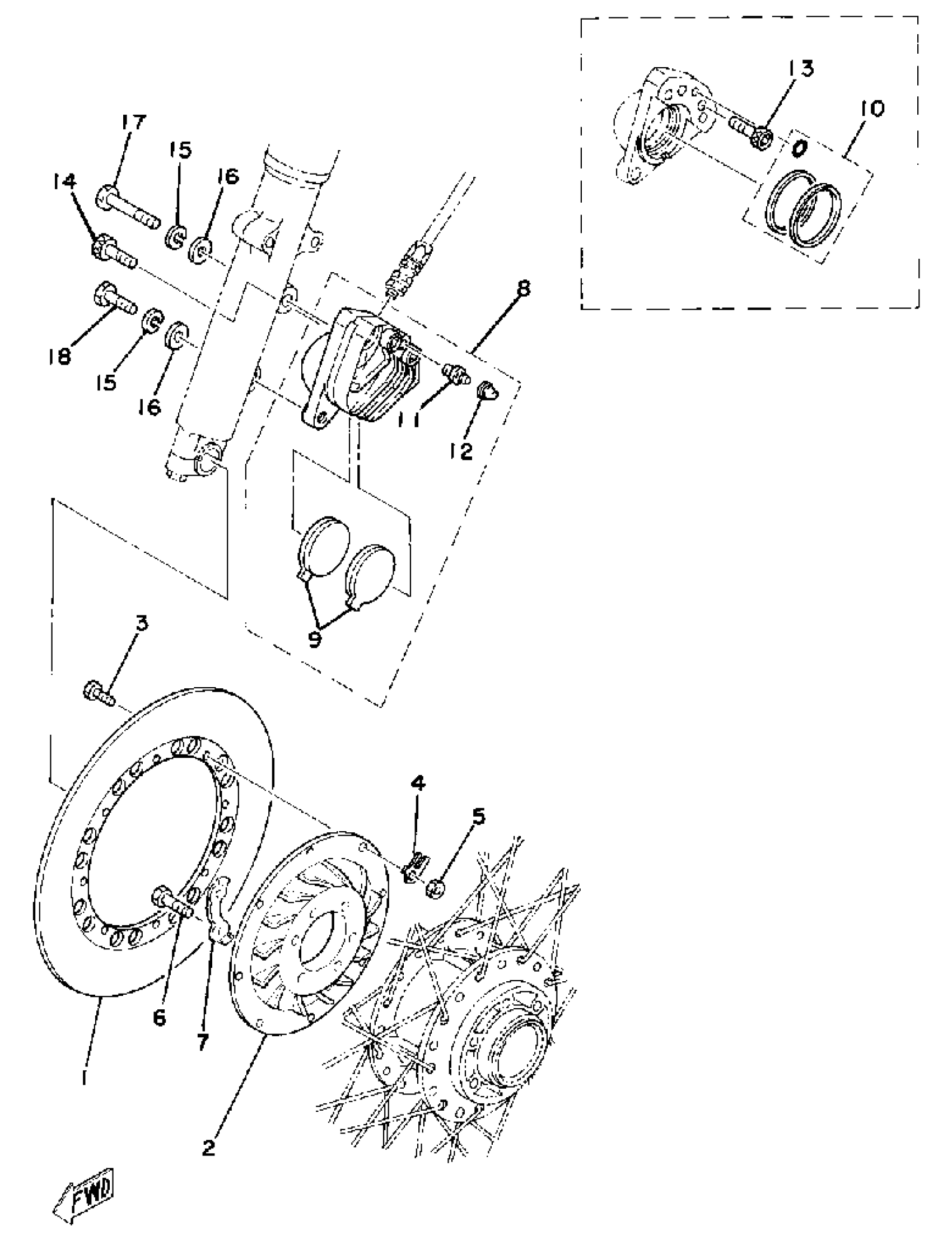

Yamaha TZ250F (TZ250) 1979 FRONT DISC BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

(409-25831-00-00)

Unavailable

2

BRACKET, DISC

(409-25832-00-00)

Unavailable

3

BOLT 306258330000

90109-06018-00

$10.49

4

WASHER LOCK 306258340000

90215-06106-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

BOLT

(90101-08272-00)

Unavailable

7

WASHER, LOCK (447)

341-25412-00-00

$12.99

8

NO LONGER AVAILABLE

1X2-25810-00-00

Unavailable

9

BRAKE PAD KIT, FRNT

(1X2-W0045-00-00)

Unavailable

10

. CALIPER SEAL KIT

1X2-W0047-00-00

Unavailable

11

. SCREW, BLEED

306-25824-00-00

Unavailable

12

CAP

306-25825-01-00

$9.99

13

BOLT, SOCKET

91317-10030-00

$9.49

14

BOLT,SOCKET

91317-10040-00

$7.49

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

16

WASHER, PLATE

92990-10600-00

Unavailable

17

BOLT, CALIPER

(1X2-25818-50-00)

Unavailable

18

BOLT

90109-10244-00

Unavailable
