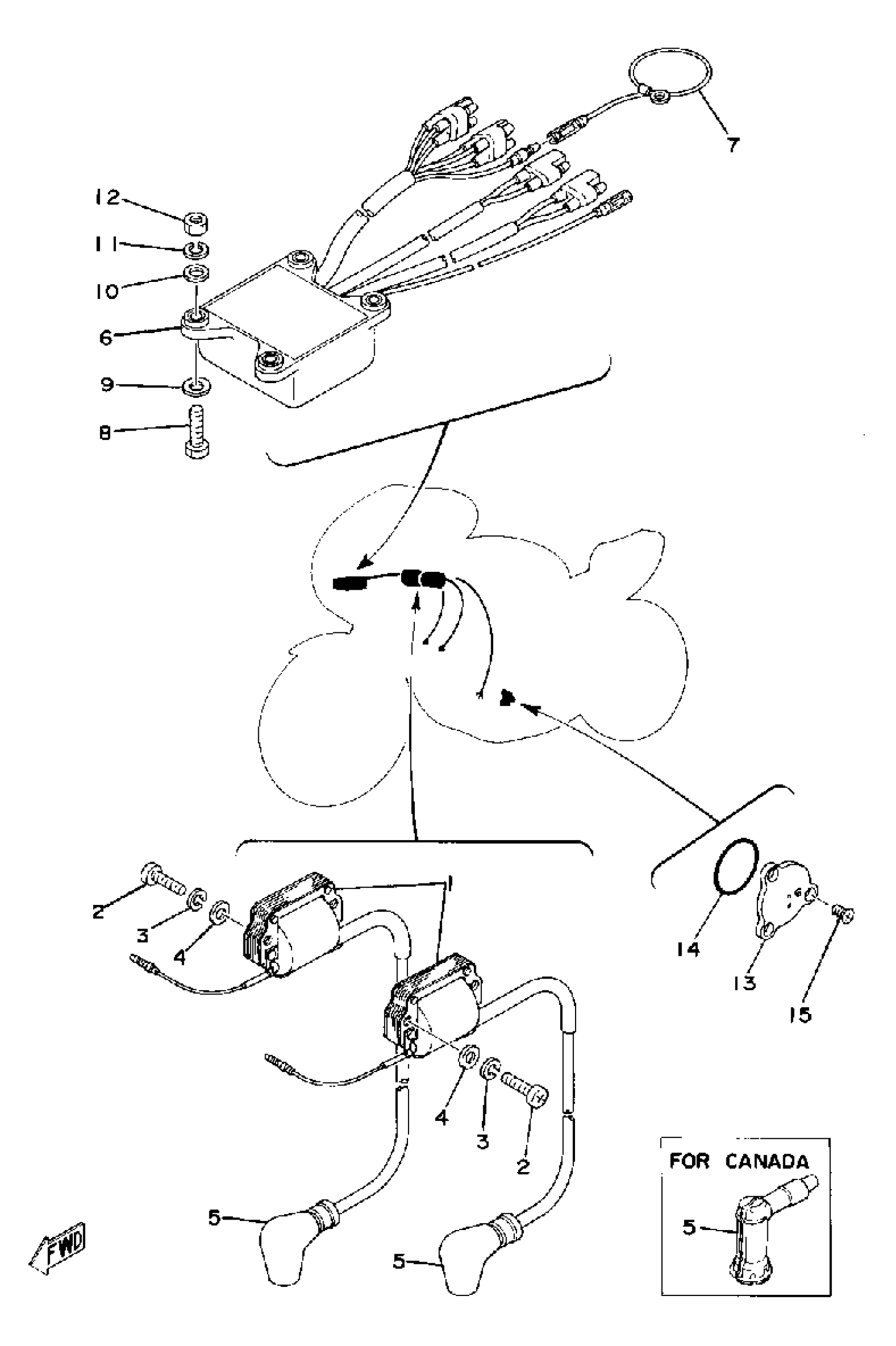

Yamaha TZ250F (TZ250) 1979 ELECTRICAL Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

2X6-82310-10-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

5

PLUG CAP ASSY

7KA-82370-00-00

$67.99

6

CDI UNIT ASSEMBLY

328-85540-10-00

Unavailable

7

WIRE, LEAD

558-82116-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLATE

90201-06M08-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

14

O-RING (371)

93210-29196-00

$8.49

15

SCREW, FLAT

98707-05012-00

Unavailable
