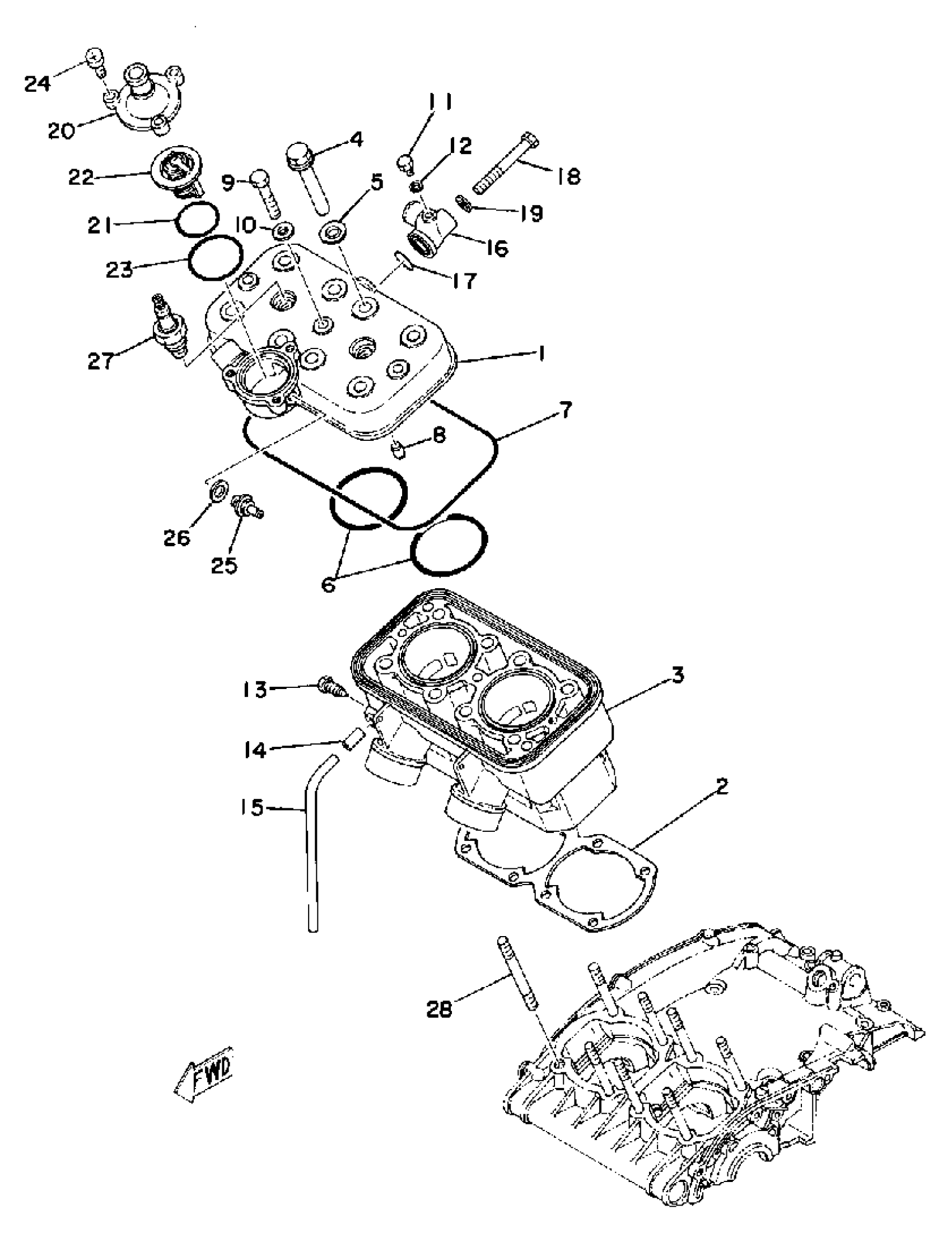

Yamaha TZ250F (TZ250) 1979 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(1H3-11111-01-00)

Unavailable

2

GASKET, CYLINDER

383-11351-02-00

$37.99

3

CYLINDER 1

1H3-11311-02-00

Unavailable

4

NUT, SPEC''L SHAPE

90179-08187-00

Unavailable

5

WASHER, PLATE 3412175700

90201-12172-00

$3.93

6

O-RING (4H7)

93210-69434-00

$13.49

7

O-RING

93211-94212-00

Unavailable

8

P1N, DOWEL

99590-10014-00

Unavailable

9

BOLT, FLANGE(3EB)

95024-08055-00

$8.49

10

WASHER, PLATE 3411117500

90201-08087-00

$3.71

11

PLUG, WATER CHECK (383)

90338-06041-00

Unavailable

12

GASKET (4V2)

90430-06166-00

$3.76

13

PLUG, STRAIGHT SCRW (383-11374-00)

90340-10016-00

Unavailable

14

NIPPLE, HOSE 1

383-11375-00-00

Unavailable

15

HOSE

(3G2-11377-00-00)

Unavailable

16

JOINT

(383-12498-00-00)

Unavailable

17

O-RING (601)

93210-20027-00

Unavailable

18

BOLT, FLANGE

95817-08075-00

Unavailable

19

WASHER (821)

90210-08002-00

Unavailable

20

COVER, THERMOSTAT

383-12413-00-00

Unavailable

21

O-RING(36Y)

93210-40659-00

Unavailable

22

THERMOSTAT

717-12411-00-00

Unavailable

23

O-RING (256)

93210-45150-00

Unavailable

24

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

25

JOINT

383-12499-00-00

Unavailable

26

WASHER PLATE 341839090000

90201-10128-00

Unavailable

27

CHAMPION N82G 10PK

(CMP-N82G0-00-00)

Unavailable

28

BOLT, STUD

(90116-08213-00)

Unavailable
