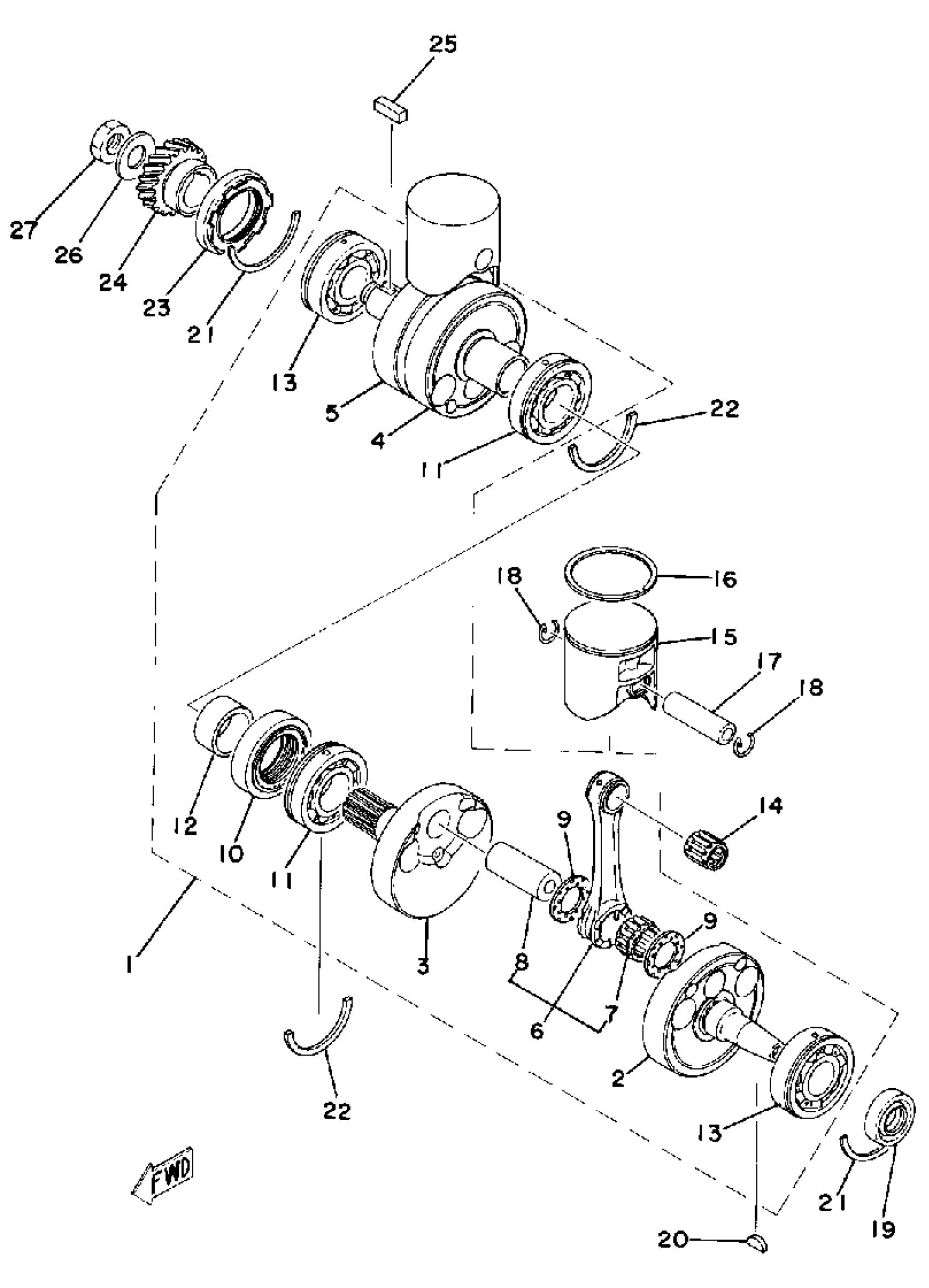

Yamaha TZ250F (TZ250) 1979 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

3G2-Y1140-00-00

Unavailable

2

. CRANK 1

328-11412-02-00

Unavailable

3

CRANK 2

(328-11422-02-00)

Unavailable

4

CRANK 3

(328-11432-02-00)

Unavailable

5

CRANK 4

(328-11442-02-00)

Unavailable

6

CONNECTING ROD ASSEMBLY

3G2-11650-09-00

Unavailable

7

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

8

PIN, CRANK

8G8-11681-00-00

$58.99

9

WASHER (29L)

90209-22248-00

Unavailable

10

. SEAL, LABYRINTH 1

328-11515-00-00

Unavailable

11

. BEARING

93306-20614-00

Unavailable

12

COLLAR (328-11513-00)

90387-32204-00

Unavailable

13

. BEARING, CYLINDER #90

93390-00012-00

Unavailable

14

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

15

PISTON STD (53.97MM)

430-11631-01-96

Unavailable

16

RING, PISTON STD

329-11611-00-00

Unavailable

17

PIN,PISTON

280-11633-00-00

Unavailable

18

CIRCLIP (137-11634-00)

93450-17025-00

Unavailable

19

OIL SEAL (20X40X10-360)

93103-20076-00

Unavailable

20

KEY,WOODRUFF

90280-04005-00

Unavailable

21

CIRCLIP 1

328-17424-00-00

Unavailable

22

CIRCLIP 1

(378-17424-00-00)

Unavailable

23

OIL SEAL (40X62X10-360)

93103-40077-00

Unavailable

24

GEAR, PRI DRIVE (25T)

328-16111-00-00

Unavailable

25

KEY, STRAIGHT (584)

90282-07023-00

Unavailable

26

SPRING

214-16119-00-00

Unavailable

27

NUT

90170-16425-00

Unavailable
