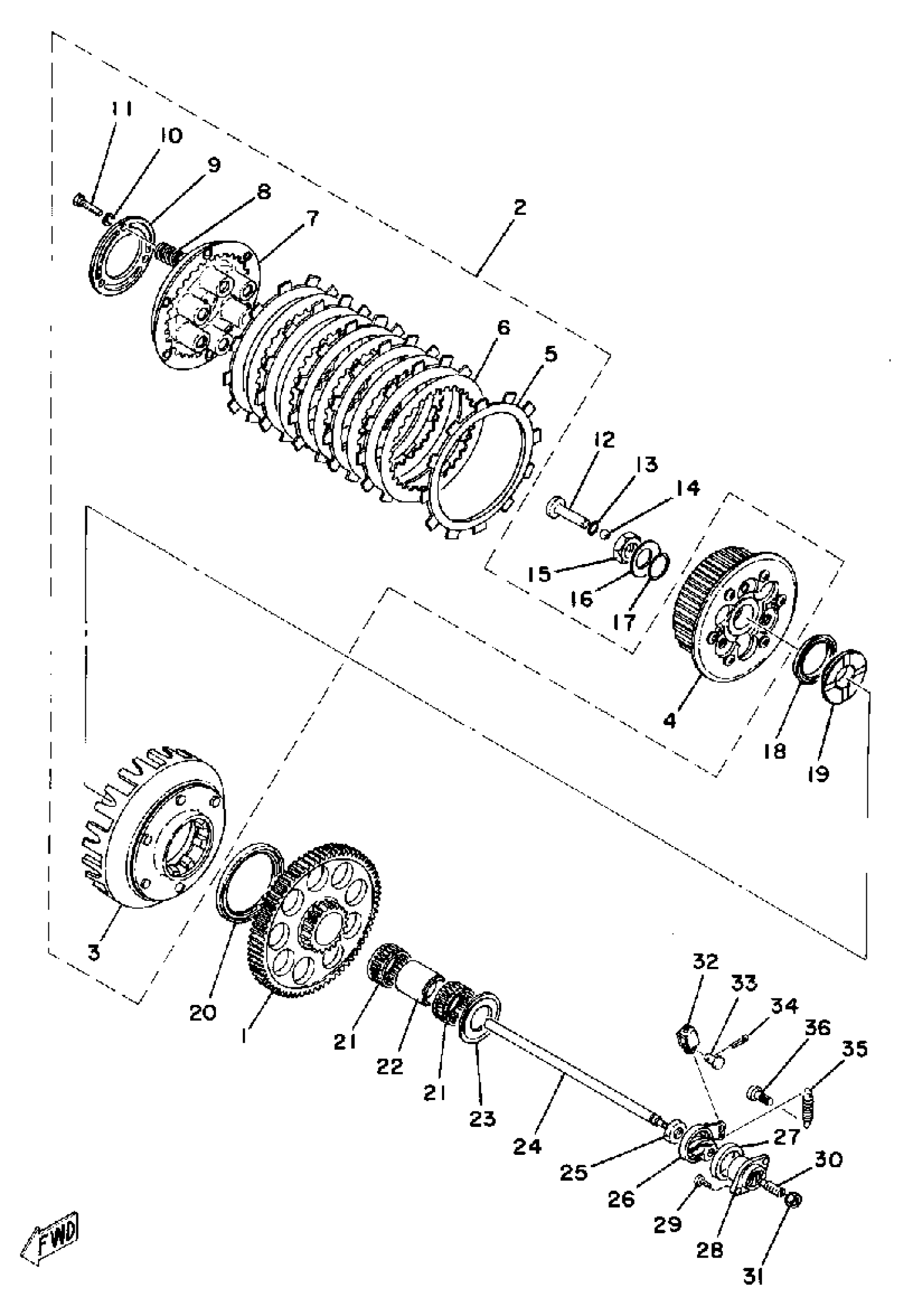

Yamaha TZ250F (TZ250) 1979 CLUTCH Diagram
#
1
PRI DRVN GEAR
(1H3-16170-00-00)
Unavailable
2
CLUTCH ASSEMBLY
1H3-16301-10-00
Unavailable
3
BUFFER BOSS ASSEMBLY
(1H3-16160-10-00)
Unavailable
4
CLUTCH BOSS ASSEMBLY
328-16370-10-00
Unavailable
6
. PLATE, CLUTCH 1
328-16324-10-00
Unavailable
7
PRESSURE PLATE ASSEMBLY
(328-16350-10-00)
Unavailable
8
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
9
PLATE, PRESSURE 2
(328-16352-00-00)
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT
90170-18089-00
Unavailable
16
SPRING
214-16119-00-00
Unavailable
17
O-RING
93210-22298-00
Unavailable
18
OIL SEAL, OS-TYPE
93107-40006-00
Unavailable
19
SPACER 2
(328-16182-10-00)
Unavailable
20
OIL SEAL(3MA)
93102-66439-00
Unavailable
21
BEARING, CYLINDER.#10
93310-23356-00
Unavailable
22
SPACER
278-16181-01-00
Unavailable
23
PLATE, THRUST
360-16154-00-00
Unavailable
24
ROD, PUSH 2
1H3-16357-00-00
Unavailable
25
OIL SEAL(12E)
93109-08061-00
Unavailable
26
PUSH LEVER ASSEMBLY
(360-16340-01-00)
Unavailable
27
SEAL, DUST
214-16347-01-00
Unavailable
28
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
29
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
30
BOLT SET 256163430100
90113-08021-00
Unavailable
31
NUT
90179-08179-00
Unavailable
32
JOINT
214-16389-00-00
Unavailable
33
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
34
. PIN, COTTER
91401-10015-00
Unavailable
35
SPRING TENSION 360163450000
90506-10069-00
Unavailable
36
HOOK, SPRING
132-16346-00-00
Unavailable
