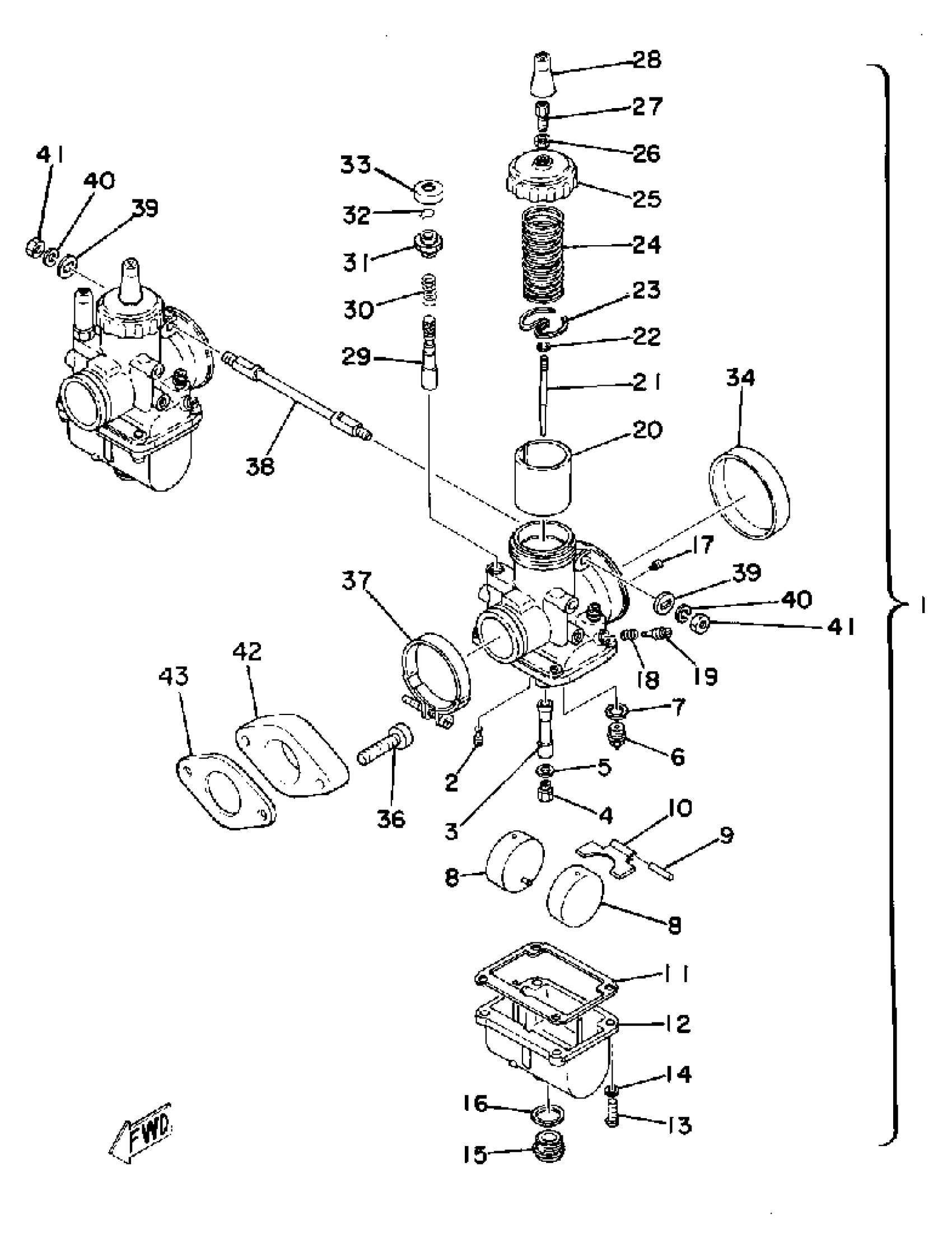

Yamaha TZ250F (TZ250) 1979 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(3G2-14101-00-00)

Unavailable

2

JET, PILOT (# 70)

193-14142-70-00

$10.99

3

. NOZZLE, MAIN (0-2)

239-14141-32-00

Unavailable

4

JET, MAIN #290

137-14143-58-A1

Unavailable

4

JET, MAIN #300

137-14143-60-A0

$11.99

4

JET, MAIN #310

137-14143-62-A1

Unavailable

4

JET, MAIN #320

137-14143-64-00

Unavailable

4

JET, MAIN #330

137-14143-66-A1

Unavailable

4

JET,MAIN #340

137-14143-68-00

$9.99

4

JET,MAIN #350

137-14143-70-00

$6.99

4

JET,MAIN #360

137-14143-72-00

$6.99

4

JET,MAIN #370

137-14143-74-00

$7.99

5

WASHER,MAIN JET

137-14153-00-00

$7.99

6

NEEDLE VALVE SET

24X-14107-33-00

$50.99

7

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

8

. FLOAT

310-14185-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

Unavailable

10

ARM, FLOAT

(239-14187-00-00)

Unavailable

11

GASKET, FLOAT CHAMBER

483-14184-00-00

Unavailable

12

BODY, FLOAT CHMBR 1

(239-14181-00-00)

Unavailable

13

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

PLUG, SCREW

(239-14115-00-00)

Unavailable

16

. WASHER, PLUG SCREW

239-14117-00-00

Unavailable

17

.. PILOT JET, AIR

239-14172-00-00

Unavailable

18

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

19

AIR SCREW SET

23X-14104-00-00

Unavailable

20

VALVE, THROTTLE 1

(328-14112-30-00)

Unavailable

21

. NEEDLE (6F21-3)

239-14116-21-00

Unavailable

22

CLIP

3FA-14137-00-00

Unavailable

23

. SEAT, SPRING

239-14136-00-00

Unavailable

24

. SPRING, THRTL VALVE

239-14131-00-00

Unavailable

25

. TOP, MIXING CHAMBER

239-14158-00-00

Unavailable

26

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

27

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

28

CAP

8A7-14169-00-00

Unavailable

29

PLUNGER, STARTER

(1G8-14171-00-00)

Unavailable

30

SPRING, PLUNGER

156-14135-00-00

Unavailable

31

CAP, PLUNGER

152-14174-00-00

Unavailable

32

CLIP, PLUNGER

353-14138-00-00

Unavailable

33

. COVER, PLUNGER CAP

637-14173-00-00

Unavailable

34

COVER, MIXING

240-14157-00-00

Unavailable

35

MANIFOLD, INTAKE

328-13555-01-00

Unavailable

36

BOLT, SOCKET

91317-08035-00

Unavailable

37

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

38

SCREW, ROD

(240-14486-00-00)

Unavailable

39

WASHER, SPEC''L SHAP

(90209-10033-00)

Unavailable

40

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

41

NUT, HEXAGON

95380-06600-00

Unavailable

42

JOINT, CARBURETOR

329-13565-01-00

Unavailable

43

GASKET,MANIFOLD

329-13556-01-00

Unavailable
