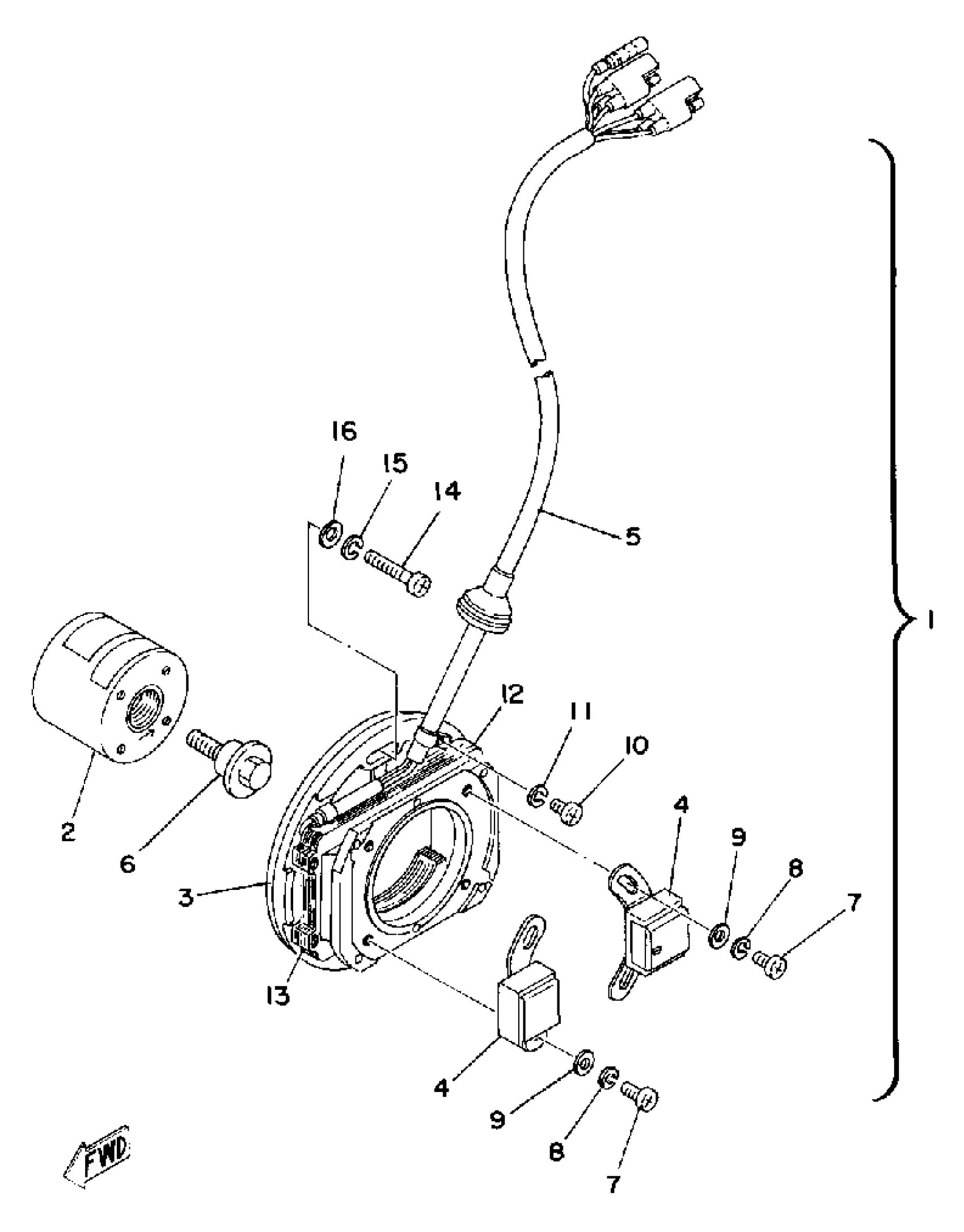

Yamaha TZ250F (TZ250) 1979 C - D - I - MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(328-85500-11-00)

Unavailable

2

ROTOR ASSEMBLY

(328-85550-11-00)

Unavailable

3

STATOR ASSEMBLY

(328-85510-11-00)

Unavailable

4

. COIL PULSER

364-85543-10-00

Unavailable

5

LEAD WIRE ASSEMBLY

(328-85515-10-00)

Unavailable

6

. ROTOR

328-85559-10-00

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

COIL, CHARGE 1

431-85566-10-00

Unavailable

13

COIL, CHARGE 2

431-85567-10-00

Unavailable

14

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
