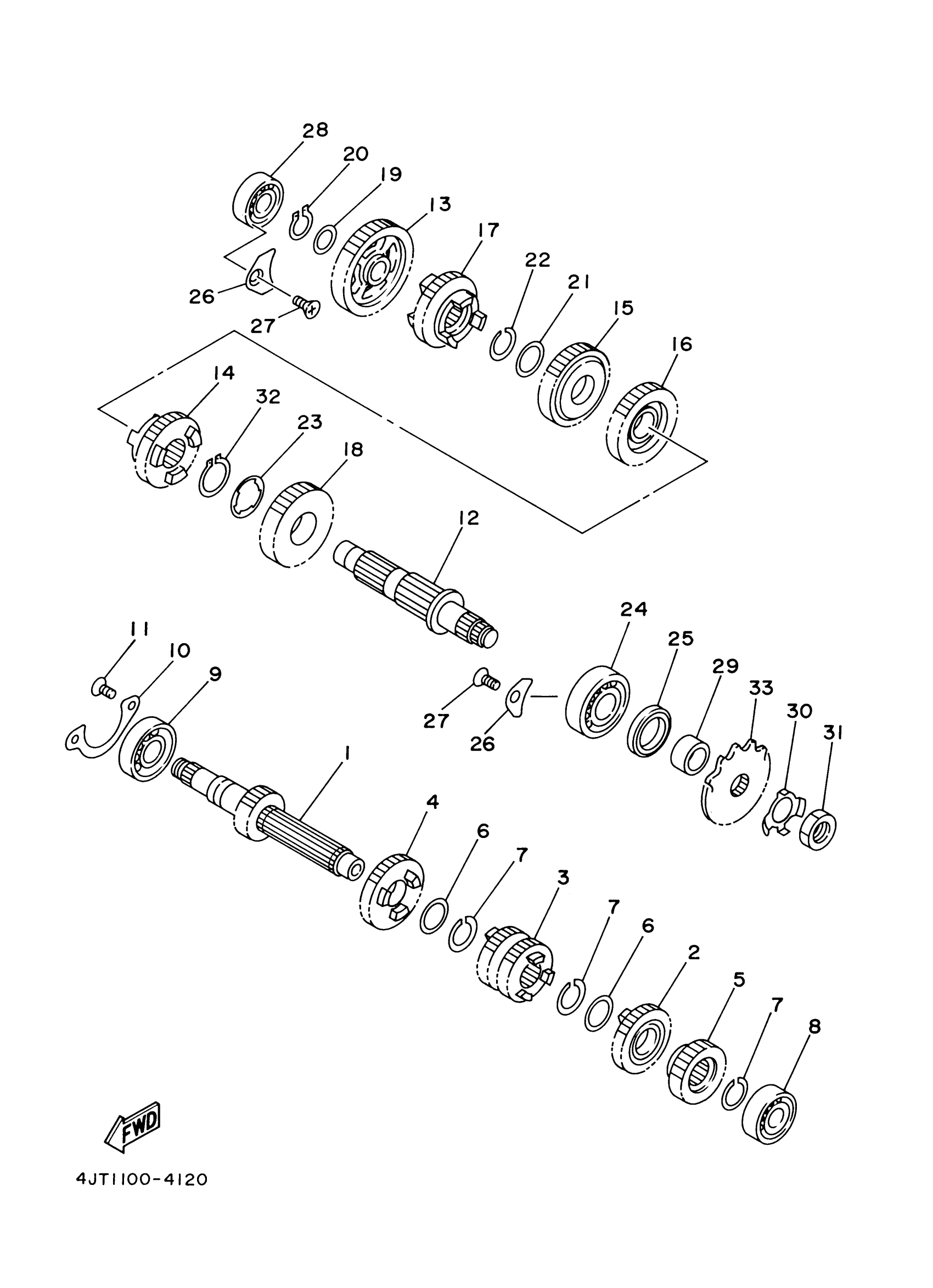

Yamaha TZ125M (TZ125M) 4JT7 2000 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (15T)

4JT-17411-00-00

Unavailable

2

GEAR, 5TH PINION (23T)

4JT-17151-10-00

Unavailable

2

GEAR, 5TH PINION (21T)

4JT-17151-20-00

Unavailable

3

GEAR, 3RD/4TH PINION (16T/22T)

4JT-17131-00-00

Unavailable

3

GEAR, 3RD/4TH PINION (19T/22T)

4JT-17131-10-00

Unavailable

3

GEAR, 3RD/4TH PINION (17T/20T)

4JT-17131-30-00

Unavailable

4

GEAR, 6TH PINION (27T)

4JT-17161-11-00

Unavailable

4

GEAR, 6TH PINION (24T)

4JT-17161-30-00

Unavailable

5

GEAR, 2ND PINION (21T)

4JT-17121-00-00

Unavailable

5

GEAR, 2ND PINION (17T)

4JT-17121-10-00

Unavailable

5

GEAR, 2ND PINION (19T)

4JT-17121-30-00

Unavailable

6

WASHER (5H0)

90209-18208-00

$8.49

7

CIRCLIP (537)

93410-22039-00

$8.49

8

BEARING(50M)

93306-20336-00

$32.99

9

BEARING(1YW)

93306-20461-00

$39.99

10

PLATE, BEARING COVER

4JT-15383-00-00

Unavailable

11

SCREW, COUNTERSUNK(4JT)

90151-06056-00

Unavailable

12

AXLE, DRIVE

4JT-17421-00-00

Unavailable

13

GEAR, 1ST WHEEL (30T)

4JT-17211-00-00

Unavailable

13

GEAR, 1ST WHEEL (29T)

4JT-17211-10-00

Unavailable

14

GEAR, 5TH WHEEL (26T)

4JT-17251-10-00

Unavailable

14

GEAR, 5TH WHEEL (24T)

4JT-17251-30-00

Unavailable

15

GEAR, 3RD WHEEL (23T)

4JT-17231-00-00

Unavailable

15

GEAR, 3RD WHEEL (26T)

4JT-17231-10-00

Unavailable

15

GEAR, 3RD WHEEL

4JT-17231-30-00

Unavailable

16

GEAR, 4TH WHEEL (28T)

4JT-17241-00-00

Unavailable

16

GEAR, 4TH WHEEL (27T)

4JT-17241-10-00

Unavailable

16

GEAR, 4TH WHEEL

4JT-17241-30-00

Unavailable

17

GEAR, 6TH WHEEL (29T)

4JT-17261-11-00

Unavailable

17

GEAR, 6TH WHEEL (26T)

4JT-17261-30-00

Unavailable

18

GEAR, 2ND WHEEL (35T)

4JT-17221-00-00

Unavailable

18

GEAR, 2ND WHEEL (27T)

4JT-17221-10-00

Unavailable

18

GEAR, 2ND WHEEL

4JT-17221-30-00

Unavailable

19

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

20

CIRCLIP (525)

93410-17037-00

Unavailable

21

WASHER (5H0)

90209-18208-00

$8.49

22

CIRCLIP (537)

93410-22039-00

$8.49

23

WASHER (30X)

90209-23241-00

Unavailable

24

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

25

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

26

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

27

SCREW, COUNTERSUNK(4JT)

90151-06056-00

Unavailable

28

BEARING(50M)

93306-20336-00

$32.99

29

COLLAR(4GG)

90387-204Y5-00

Unavailable

30

WASHER, LOCK(2HG)

90215-20261-00

Unavailable

31

NUT (1L8)

90179-16226-00

Unavailable

32

CIRCLIP (30X)

93410-26067-00

Unavailable

33

SPROCKET, DRIVE (16T)

938AA-16198-00

Unavailable

33

SPROCKET, DRIVE (17T)

938AA-17196-00

Unavailable

33

SPROCKET, DRIVE (18T)

938AA-18199-00

Unavailable
