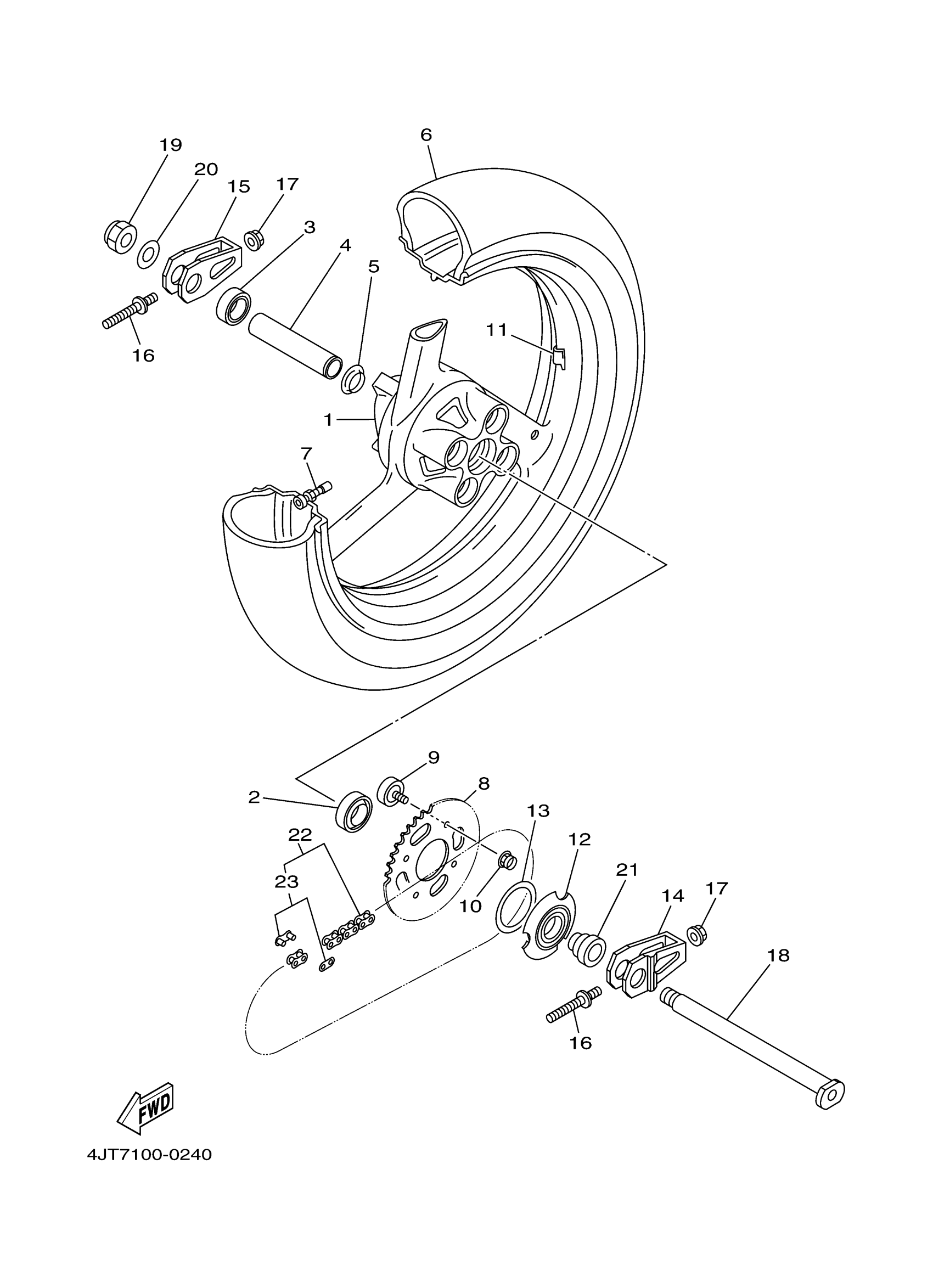

Yamaha TZ125M (TZ125M) 4JT7 2000 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

4JT-25338-01-UA

Unavailable

2

BEARING

93306-07205-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

SPACER, BEARING

4JT-25317-00-00

Unavailable

5

FLANGE, SPACER 2

5Y9-25316-00-00

Unavailable

6

TIRE (125/55-R17 KR133)

94112-1716H-00

Unavailable

7

VALVE, RIM (31A)

93900-00031-00

$16.99

8

SPROCKET, DRIVEN (35T)

4JT-25435-20-00

Unavailable

8

SPROCKET, DRIVEN (36T)

4JT-25436-20-00

Unavailable

8

SPROCKET, DRIVEN (37T)

4JT-25437-20-00

Unavailable

8

SPROCKET, DRIVEN (38T)

4JT-25438-20-00

Unavailable

8

SPROCKET, DRIVEN (39T)

4JT-25439-20-00

Unavailable

9

DAMPER

3YL-25364-01-00

$22.99

10

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH ASSY

4JT-25360-10-00

Unavailable

13

WASHER, PLATE(4JT)

90201-537R1-00

Unavailable

14

PULLER, CHAIN 1

4JT-25388-00-00

Unavailable

15

PULLER, CHAIN 2

4JT-25389-00-00

Unavailable

16

BOLT, CHAIN PULLAR

4DP-25379-00-00

Unavailable

17

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

18

AXLE, WHEEL

4JT-25381-00-00

Unavailable

19

NUT, SELF-LOCKING

90185-18009-00

Unavailable

20

WASHER PLATE 168217580000

90201-18262-00

Unavailable

21

COLLAR, WHEEL

4JT-25376-00-00

Unavailable

22

CHAIN (RK415HRU-118L)

94571-44118-00

Unavailable

22

CHAIN (RK415HRU-120L)

94571-44120-00

Unavailable

23

. JOINT, CHAIN

94671-44011-00

Unavailable
