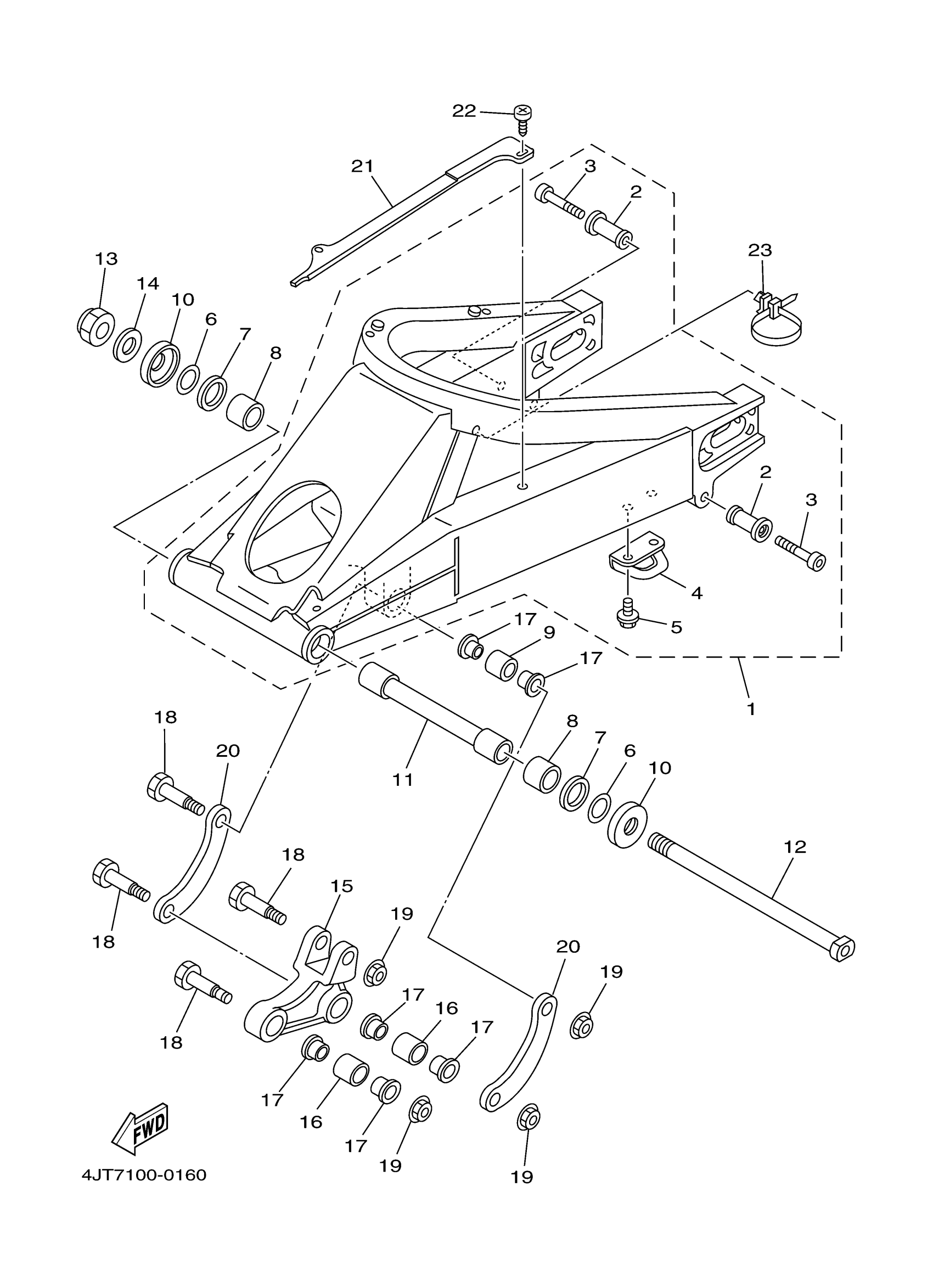

Yamaha TZ125M (TZ125M) 4JT7 2000 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4JT-22110-40-00

Unavailable

2

. HOOK

4JT-2216F-10-00

Unavailable

3

BOLT,SOCKET

91317-06040-00

$3.76

4

. GUIDE, CHAIN

4JT-22187-00-00

Unavailable

5

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

6

SHIM (0.3T)

156-22127-00-00

Unavailable

7

BEARING, THRUST(4EW)

93342-22215-00

$39.99

8

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

9

BEARING(4DP)

93320-21507-00

Unavailable

10

COVER, THRUST 2

4EW-22129-00-00

$27.99

11

BUSH

4JT-22184-00-00

Unavailable

12

SHAFT, PIVOT

1LX-22141-00-00

Unavailable

13

NUT, SELF-LOCKING

90185-16002-00

$16.99

14

WASHER

92907-16200-00

Unavailable

15

ARM, RELAY

4JT-2217A-10-00

Unavailable

16

BEARING(4DP)

93320-21507-00

Unavailable

17

COLLAR(4DP)

90387-124Y8-00

Unavailable

18

BOLT

90101-10709-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

ROD, CONNECTING 1

4JT-2217F-10-00

Unavailable

21

SEAL, GUARD

4JT-22151-00-00

Unavailable

22

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

23

CLAMP(2TV)

90464-10112-00

Unavailable
