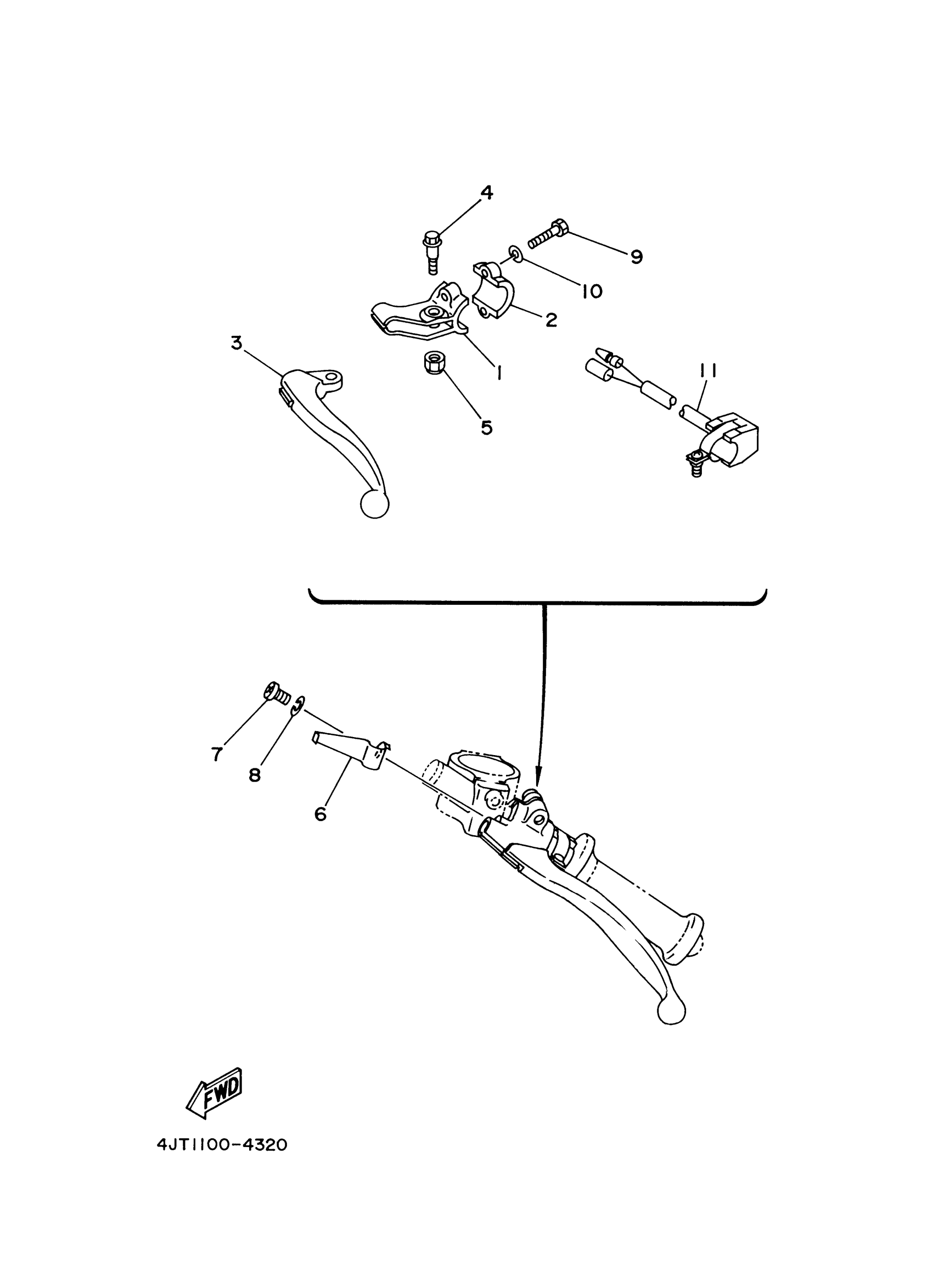

Yamaha TZ125M (TZ125M) 4JT7 2000 HANDLE SWITCH. LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5F6-82911-00-00

Unavailable

2

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

3

LEVER(L.H)

214-83912-00-00

$18.18

4

BOLT (2YK1)

90109-06799-00

$4.23

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

SPRING, LOCK

5F6-26368-00-00

Unavailable

7

GASKET, EXHAUST

98507-05008-00

$2.52

8

WASHER(3SX)

92907-05100-00

$5.76

9

BOLT(3JK)

97027-05020-00

$2.31

10

WASHER(3SX)

92907-05100-00

$5.76

11

SWITCH, HANDLE 1

3LC-83976-00-00

Unavailable
