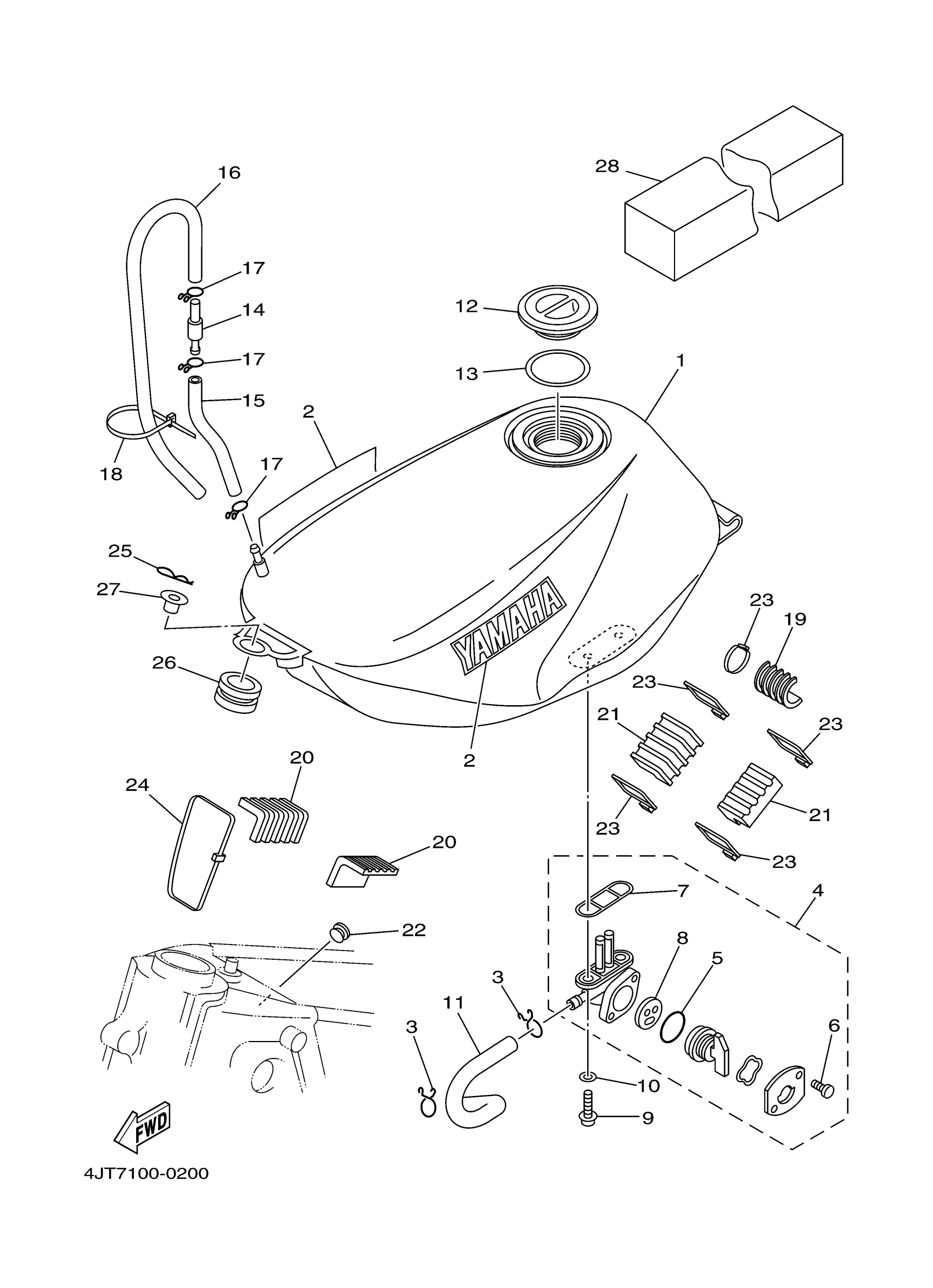

Yamaha TZ125M (TZ125M) 4JT7 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4JT-24110-10-36

Unavailable

2

EMBLEM

5KE-2411B-00-00

Unavailable

3

CLIP

90467-100A1-00

$7.49

4

FUEL COCK ASSY 1

4JT-24500-20-00

$108.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

O-RING

4X8-24512-00-00

$8.99

8

VALVE PACKING

3AC-24523-00-00

$12.99

9

SCREW 366241430000

90149-06008-00

$10.49

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

PIPE, FUEL 1

4JT-24311-10-00

Unavailable

12

BODY, CAP

4JT-24611-00-00

Unavailable

13

GASKET, CAP

4JT-24612-00-00

Unavailable

14

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

15

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

$2.22

16

PIPE, OVERFLOW

4JT-24318-00-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

DAMPER, LOCATING 2

4JT-24182-00-00

Unavailable

20

DAMPER, LOCATING 2

1RK-24182-00-00

Unavailable

21

DAMPER, LOCATING 2

47X-24182-00-00

Unavailable

22

DAMPER, SIDE COVER

583-21747-00-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

CLAMP(MF1)

90464-15152-00

Unavailable

25

CLIP

4JT-2411M-00-00

Unavailable

26

GROMMET(3AK)

90480-18495-00

Unavailable

27

COLLAR

90387-083U8-00

Unavailable

28

PLATE 1

4JT-2411R-00-00

Unavailable
