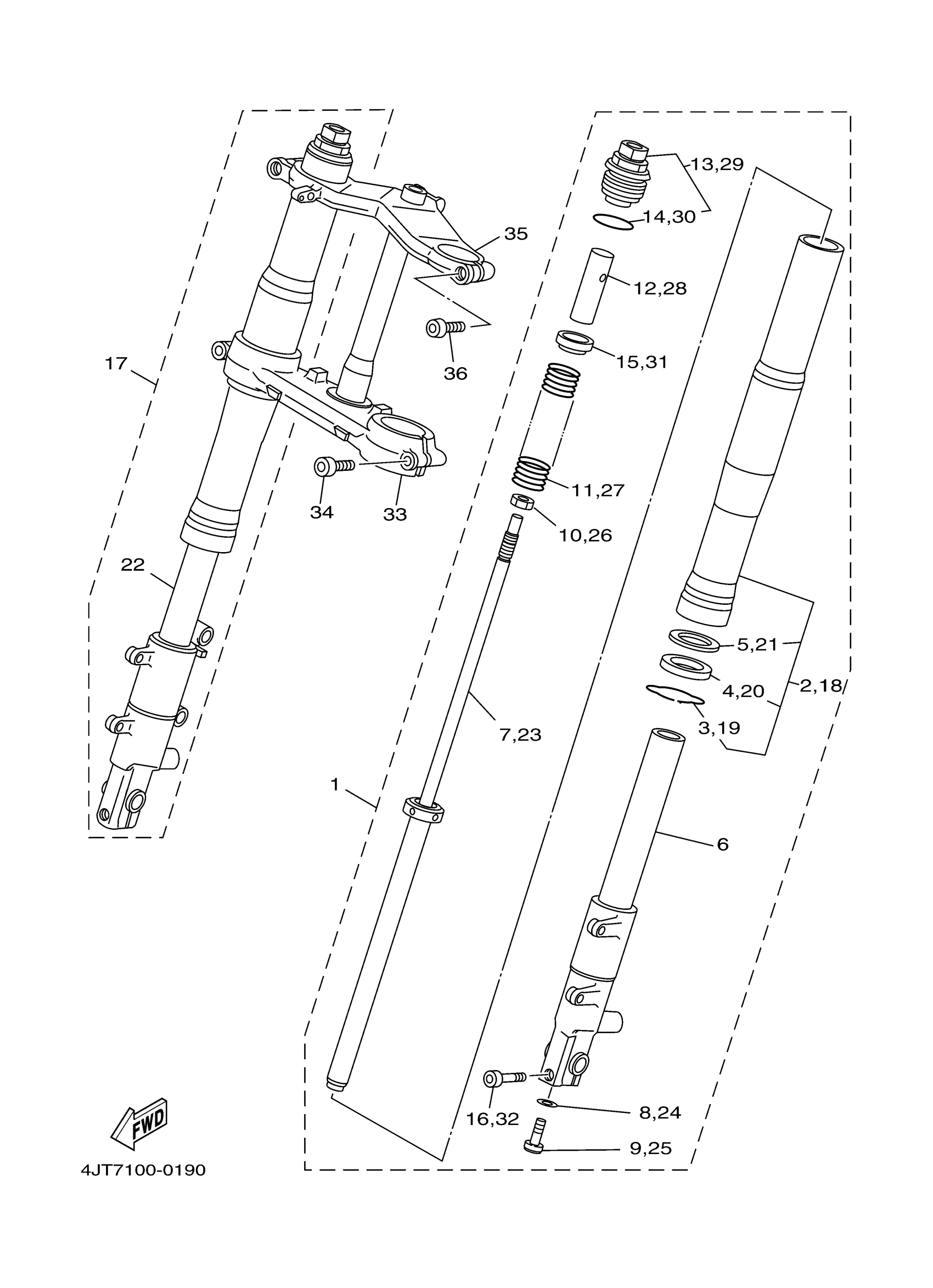

Yamaha TZ125M (TZ125M) 4JT7 2000 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4JT-23102-40-00

Unavailable

2

. TUBE, OUTER (RIGHT)

4JT-23136-30-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4ES-23145-00-00

$22.99

5

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

6

. INNER TUBE COMP1

4JT-23110-40-00

Unavailable

7

. CYLINDER COMP, FRONT FORK

4JT-23170-30-00

Unavailable

8

GASKET

2K8-23158-L0-00

$15.49

9

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

10

. NUT

4JT-23357-20-00

Unavailable

11

. SPRING, FRONT FORK

4JT-23141-10-00

Unavailable

12

. SPACER

4JT-23118-40-00

Unavailable

13

. BOLT, CAP

4JT-23111-40-00

Unavailable

14

O-RING

4V4-23188-L1-00

$5.49

15

. SEAT, SPRING UPPER

4TW-23142-10-00

Unavailable

16

BOLT,SOCKET

91314-08040-00

Unavailable

17

FRONT FORK ASSY (R.H)

4JT-23103-40-00

Unavailable

18

. TUBE, OUTER (RIGHT)

4JT-23136-30-00

Unavailable

19

RING, SNAP

4A1-23156-00-00

$5.49

20

OIL SEAL

4ES-23145-00-00

$22.99

21

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

22

. INNER TUBE COMP2

4JT-23120-40-00

Unavailable

23

. CYLINDER COMP, FRONT FORK

4JT-23170-30-00

Unavailable

24

GASKET

2K8-23158-L0-00

$15.49

25

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

26

. NUT

4JT-23357-20-00

Unavailable

27

. SPRING, FRONT FORK

4JT-23141-10-00

Unavailable

28

. SPACER

4JT-23118-40-00

Unavailable

29

. BOLT, CAP

4JT-23111-40-00

Unavailable

30

O-RING

4V4-23188-L1-00

$5.49

31

. SEAT, SPRING UPPER

4TW-23142-10-00

Unavailable

32

BOLT,SOCKET

91314-08040-00

Unavailable

33

UNDER BRACKET COMP.

4JT-23340-30-00

Unavailable

34

BOLT

91311-10030-00

Unavailable

35

CROWN, HANDLE

4JT-23435-30-00

Unavailable

36

BOLT,SOCKET

91314-08030-00

Unavailable
