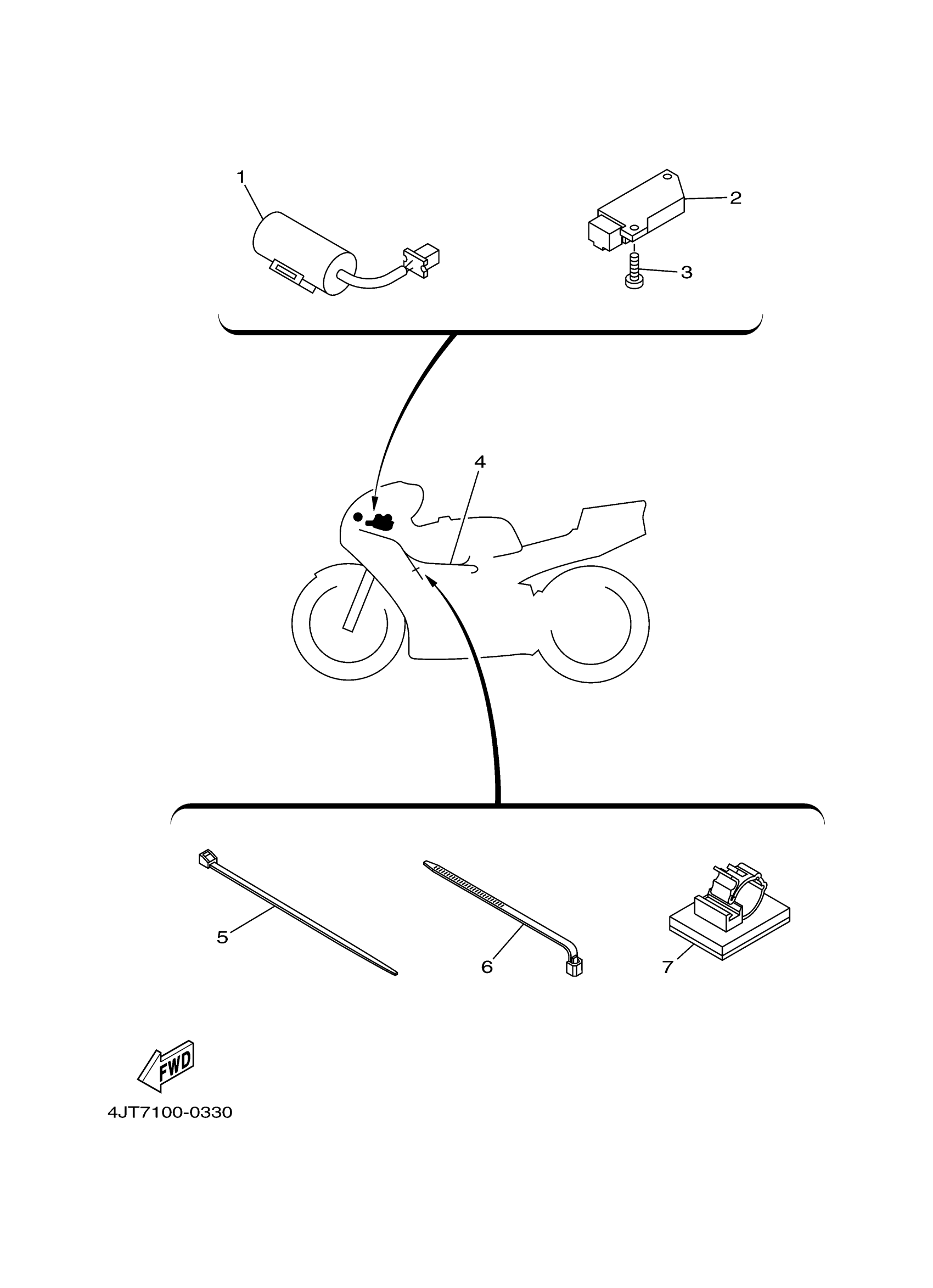

Yamaha TZ125M (TZ125M) 4JT7 2000 ELECTRICAL 1 Diagram

#

Description

Price

1

CONDENSER, SMOOTHING

3TC-81965-00-00

Unavailable

2

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

Unavailable

3

SCREW, PAN

98517-06020-00

$1.79

4

WIRE HARNESS ASSY

4JT-82590-10-00

Unavailable

5

CLAMP(MF1)

90464-15152-00

$4.07

6

CLAMP(4FM)

90464-15195-00

$2.57

7

CLAMP(1NL)

90464-62085-00

$5.61
