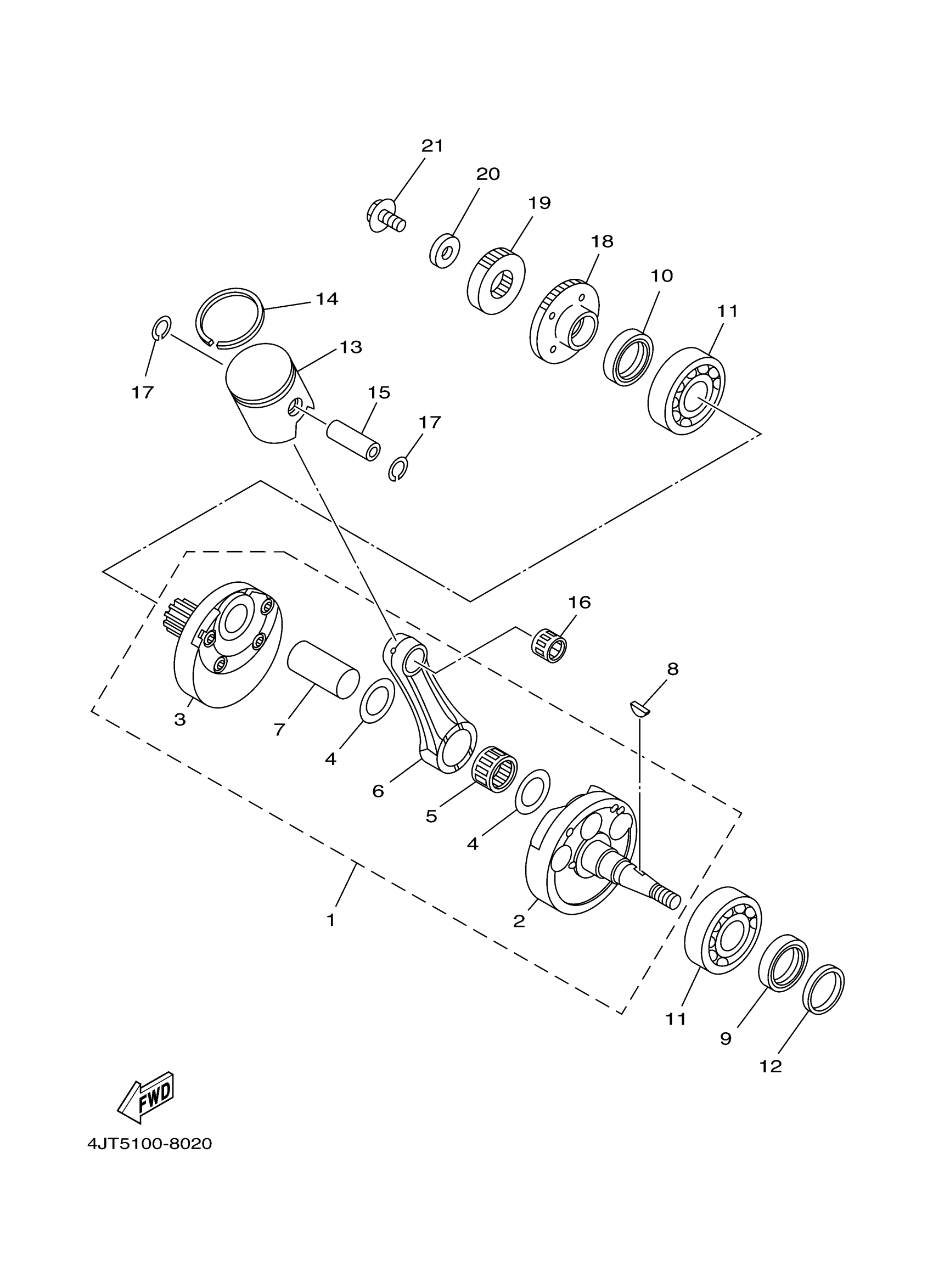

Yamaha TZ125M (TZ125M) 4JT7 2000 CRANKSHAFT. PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

4JT-11400-30-00

Unavailable

2

. CRANKSHAFT

4JT-11410-30-00

Unavailable

3

. CRANKSHAFT

4JT-11420-30-00

Unavailable

4

WASHER (164-11685-00)

90209-22071-00

Unavailable

5

BEARING

93310-422B0-00

Unavailable

6

ROD, CONNECTING

4JT-11651-10-00

Unavailable

7

PIN, CRANK 1

4JT-11681-10-00

Unavailable

8

KEY, WOODRUFF(3MA)

90280-04051-00

Unavailable

9

. OIL SEAL

93102-25142-00

Unavailable

10

OIL SEAL

93103-32183-00

$35.99

11

BEARING

93306-30570-00

$75.99

12

SPACER

4JT-11445-00-00

Unavailable

13

PISTON (STD)

4JT-11631-30-A0

Unavailable

13

PISTON (STD)

4JT-11631-30-B0

Unavailable

13

PISTON (STD)

4JT-11631-30-C0

Unavailable

14

RING, PISTON

4JT-11611-11-00

Unavailable

15

PIN, PISTON

4XM-11633-01-00

Unavailable

16

BEARING, CYLINDRICAL(4XM)

93310-315S4-00

Unavailable

17

CIRCLIP (4G0)

93450-16068-00

Unavailable

18

GEAR, DRIVE

4JT-11536-00-00

Unavailable

19

GEAR, PRIMARY DRIVE

4JT-16111-01-00

Unavailable

20

WASHER, PLATE

90201-10144-00

Unavailable

21

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable
