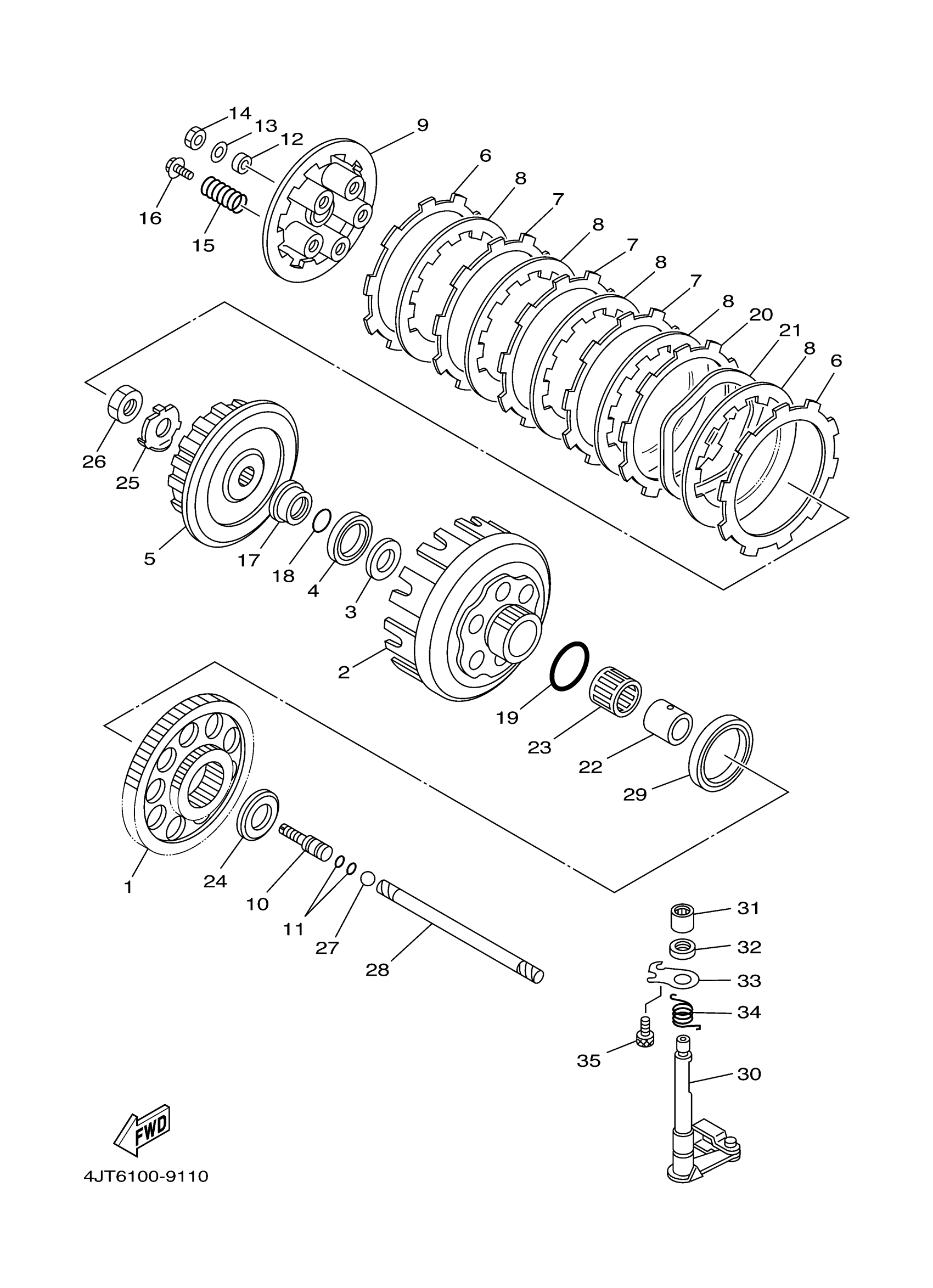

Yamaha TZ125M (TZ125M) 4JT7 2000 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN

4JT-16151-01-00

Unavailable

2

CLUTCH HOUSING ASSY

4JT-16310-01-00

Unavailable

3

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

4

OIL SEAL (26X38X5-181)

93102-26042-00

$5.60

5

BOSS, CLUTCH

4JT-16371-00-00

Unavailable

6

PLATE, FRICTION

4JT-16321-00-00

$48.99

7

PLATE, FRICTION 2

4JT-16331-00-00

$48.99

8

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

9

PLATE, PRESSURE 1

37F-16351-00-00

$56.99

10

ROD, PUSH 1

4JT-16356-00-00

Unavailable

11

O-RING (2H7)

93210-48364-00

$8.49

12

PLATE, PUSH

1W1-16358-01-00

$23.99

13

WASHER(6TA)

92907-06200-00

$8.49

14

NUT(6TA)

95317-06600-00

$3.55

15

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

16

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

17

PLATE, THRUST

4JT-16184-00-00

Unavailable

18

O-RING (1J7)

93210-16314-00

Unavailable

19

O-RING (21A)

93210-34633-00

Unavailable

20

PLATE, FRICTION 2

4JT-16331-10-00

Unavailable

21

SPRING, CLUTCH BOSS

1HX-16383-00-00

Unavailable

22

SPACER 1

4JT-16181-01-00

Unavailable

23

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

Unavailable

24

PLATE, THRUST 1

4JT-16154-00-00

Unavailable

25

WASHER, LOCK (2K6)

90215-14204-00

Unavailable

26

NUT, HEXAGON

90170-14171-00

Unavailable

27

BALL

93505-16006-00

Unavailable

28

ROD, PUSH 2

5H0-16357-00-00

Unavailable

29

OIL SEAL (3V3)

93101-45091-00

Unavailable

30

PUSH LEVER ASSY

4JT-16380-20-00

Unavailable

31

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

32

OIL SEAL (4G0)

93102-12224-00

Unavailable

33

PLATE, SEAT

4JT-16384-00-00

Unavailable

34

SPRING, TORSION

90508-145A5-00

Unavailable

35

BOLT,SOCKET

91317-06010-00

Unavailable
