CARBURETOR

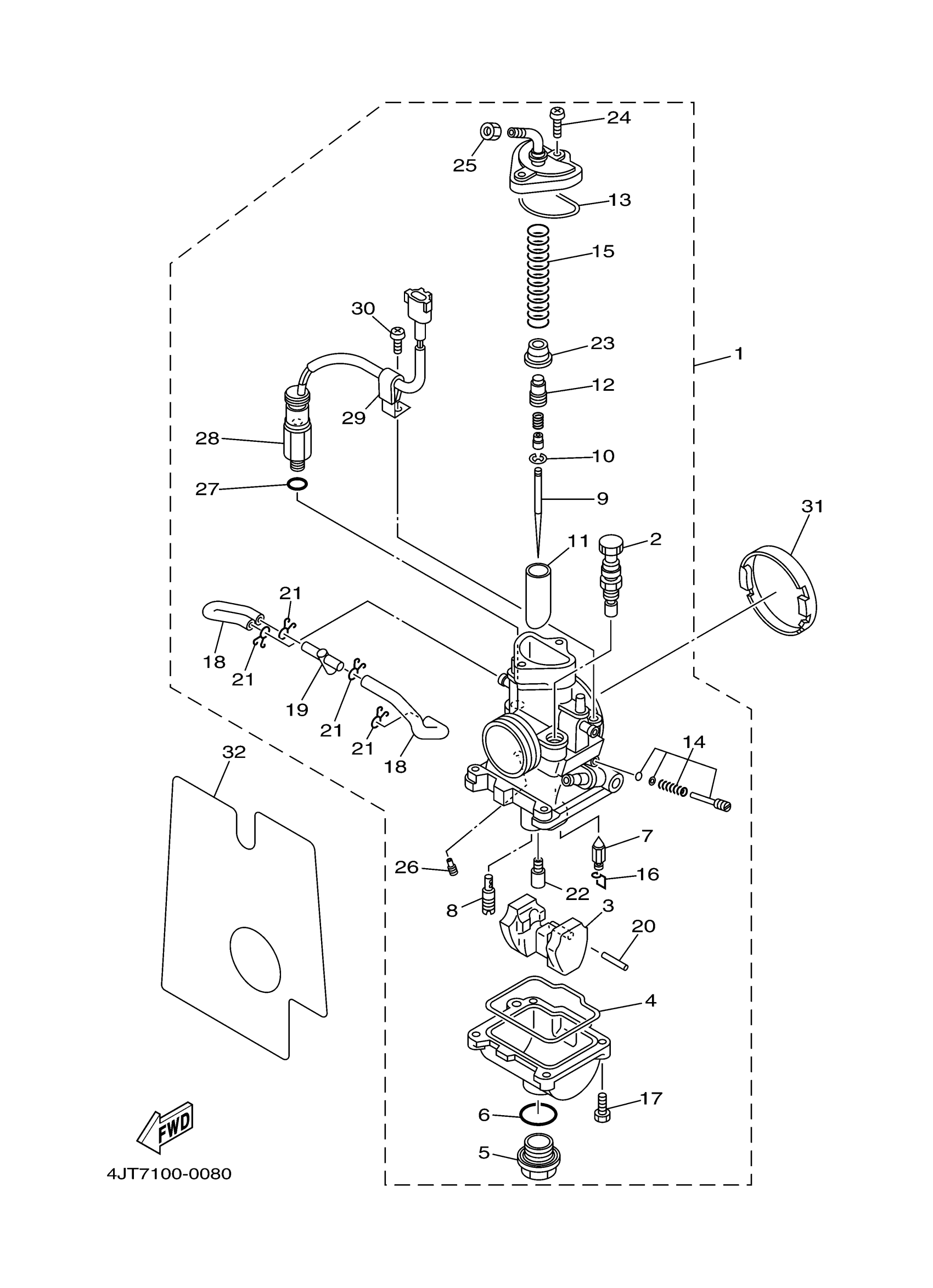

Yamaha TZ125M (TZ125M) 4JT7 2000 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
4JT-14101-60-00
Unavailable
9
. NEEDLE (N8VH)
4JT-14916-VH-00
Unavailable
9
. NEEDLE (N8VJ)
4JT-14916-VJ-00
Unavailable
9
. NEEDLE (N8VK)
4JT-14916-VK-00
Unavailable
9
. NEEDLE (N8VW)
4JT-14916-VW-00
Unavailable
9
. NEEDLE (N8WH)
4JT-14916-WH-00
Unavailable
9
. NEEDLE (N8WJ)
4JT-14916-WJ-00
Unavailable
9
. NEEDLE (N8WK)
4JT-14916-WK-00
Unavailable
9
. NEEDLE (N8WW)
4JT-14916-WW-00
Unavailable
10
CLIP
4MX-14919-00-00
Unavailable
11
. VALVE ASSY
4JT-14340-70-00
Unavailable
12
. HOLDER
4JT-14261-00-00
Unavailable
13
. GASKET
4SR-14126-00-00
Unavailable
14
PILOT SCREW SET
4SR-14105-01-00
Unavailable
15
. SPRING, THROTTLE VALVE
4MX-14131-00-00
Unavailable
16
CLIP
633-14159-00-00
Unavailable
17
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
18
. PIPE
4JT-14197-00-00
Unavailable
19
. NIPPLE
4JT-14251-00-00
Unavailable
20
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
21
CLIP
3TJ-14137-40-00
Unavailable
22
JET, MAIN (#160)
4MX-14943-39-00
Unavailable
22
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
22
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
22
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
22
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
22
JET, MAIN (#185)
4MX-14943-44-00
Unavailable
22
JET, MAIN (#190)
4MX-14943-45-00
Unavailable
22
JET, MAIN (#195)
4MX-14943-46-00
Unavailable
22
. JET, MAIN (200)
4MX-14943-47-00
Unavailable
22
. JET, MAIN (205)
4MX-14943-48-00
Unavailable
22
. JET, MAIN (210)
4MX-14943-49-00
Unavailable
22
. JET, MAIN (215)
4MX-14943-50-00
Unavailable
22
. JET, MAIN (220)
4MX-14943-51-00
Unavailable
22
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
22
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
22
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
22
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
22
JET, MAIN (#182)
4MX-14943-94-00
Unavailable
22
JET, MAIN (#188)
4MX-14943-95-00
Unavailable
22
JET, MAIN (#192)
4MX-14943-96-00
Unavailable
22
JET, MAIN (#198)
4MX-14943-97-00
Unavailable
23
RING
4MX-14194-00-00
Unavailable
24
SCREW, PAN HEAD
98511-04012-00
Unavailable
25
. NUT, CABLE ADJUSTING
4JT-14161-00-00
Unavailable
26
JET (#40)
4JT-1494F-03-00
Unavailable
26
JET (#50)
4JT-1494F-07-00
Unavailable
26
JET (#60)
4JT-1494F-11-00
Unavailable
27
O-RING
4JT-14147-00-00
Unavailable
28
. FUEL CUT SOLENOID VALVE
4JT-1410H-00-00
Unavailable
29
. PLATE
4JT-14146-00-00
Unavailable
30
. SCREW, PAN HEAD
98580-04006-00
Unavailable
31
COVER, MIXING
4JT-14157-10-00
Unavailable
32
COVER, CARBURETOR 1
4JT-14283-00-00
Unavailable
