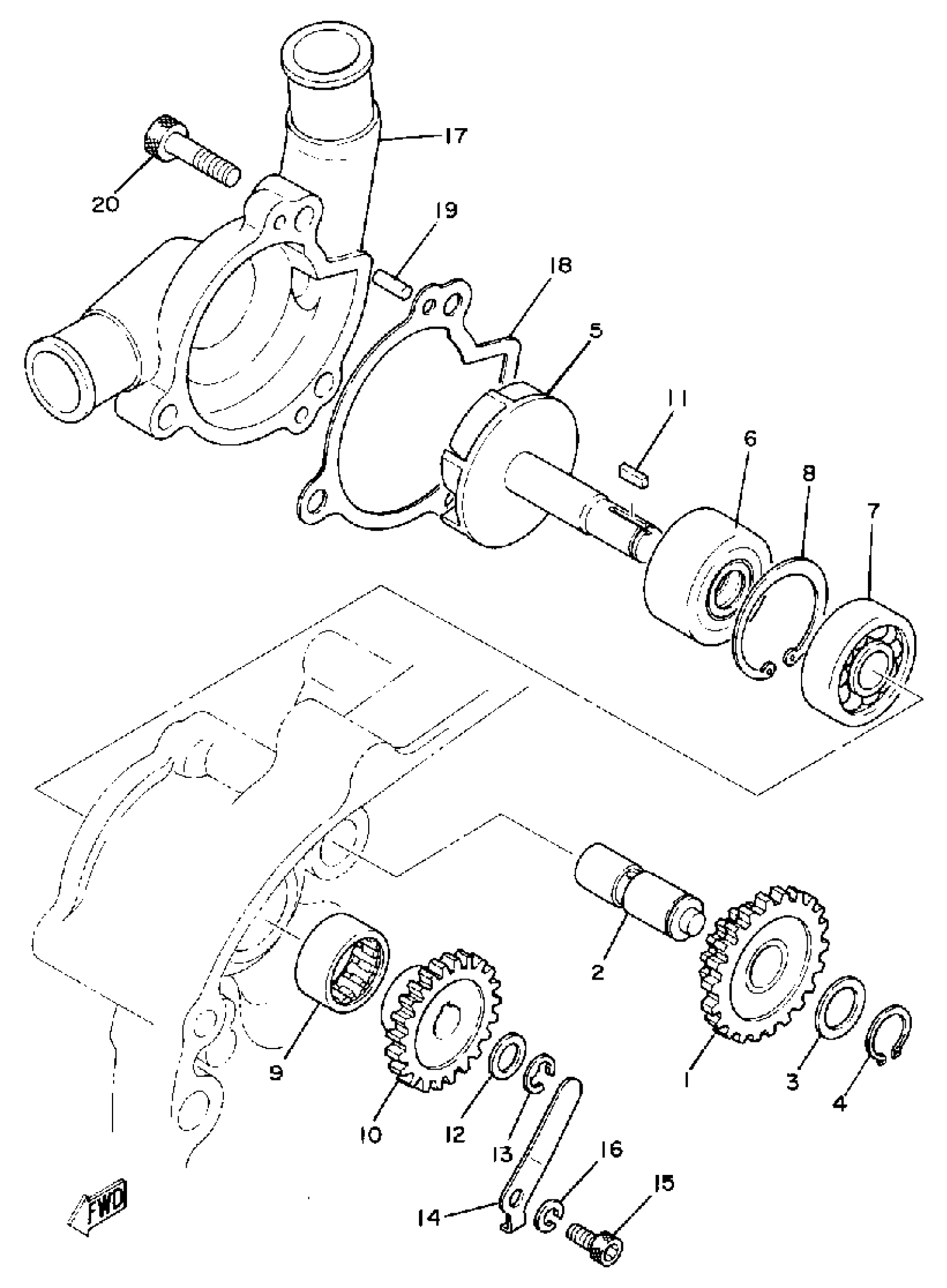

Yamaha TZ125G (TZ125G) 1980 WATER PUMP Diagram

#

Description
Price

1

GEAR, DRIVE (14/22T)

3V3-12436-00-00

Unavailable

2

SHAFT

(3V3-12426-00-00)

Unavailable

3

WASHER PLATE 164185720000

90201-12166-00

$9.49

4

CIRCLIP(10Y)

99009-12400-00

$3.59

5

IMPELLER SHAFT ASSEMBLY

(3V3-12450-00-00)

Unavailable

6

OIL SEAL

93103-10011-00

$46.99

7

BEARING (3R0)

93306-20009-00

$44.99

8

CIRCLIP(46T)

99009-32500-00

$7.49

9

BEARING, CYLINDER.#17

(93317-21715-00)

Unavailable

10

GEAR, IMPELLER SHAF

(3V3-12459-00-00)

Unavailable

11

KEY, STRAIGHT

90282-03003-00

Unavailable

12

WASHER, PLATE

90201-09780-00

Unavailable

13

CIRCLIP

99080-07600-00

Unavailable

14

STOPPER

(3V3-12437-00-00)

Unavailable

15

BOLT,SOCKET

91317-06012-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

COVER, HOUSING

(3V3-12422-00-00)

Unavailable

18

GASKET, HSNG CVR 2

3V3-12428-00-00

Unavailable

19

PIN,DOWEL (603)

93604-10011-00

Unavailable

20

BOLT,SOCKET

91317-06025-00

Unavailable
