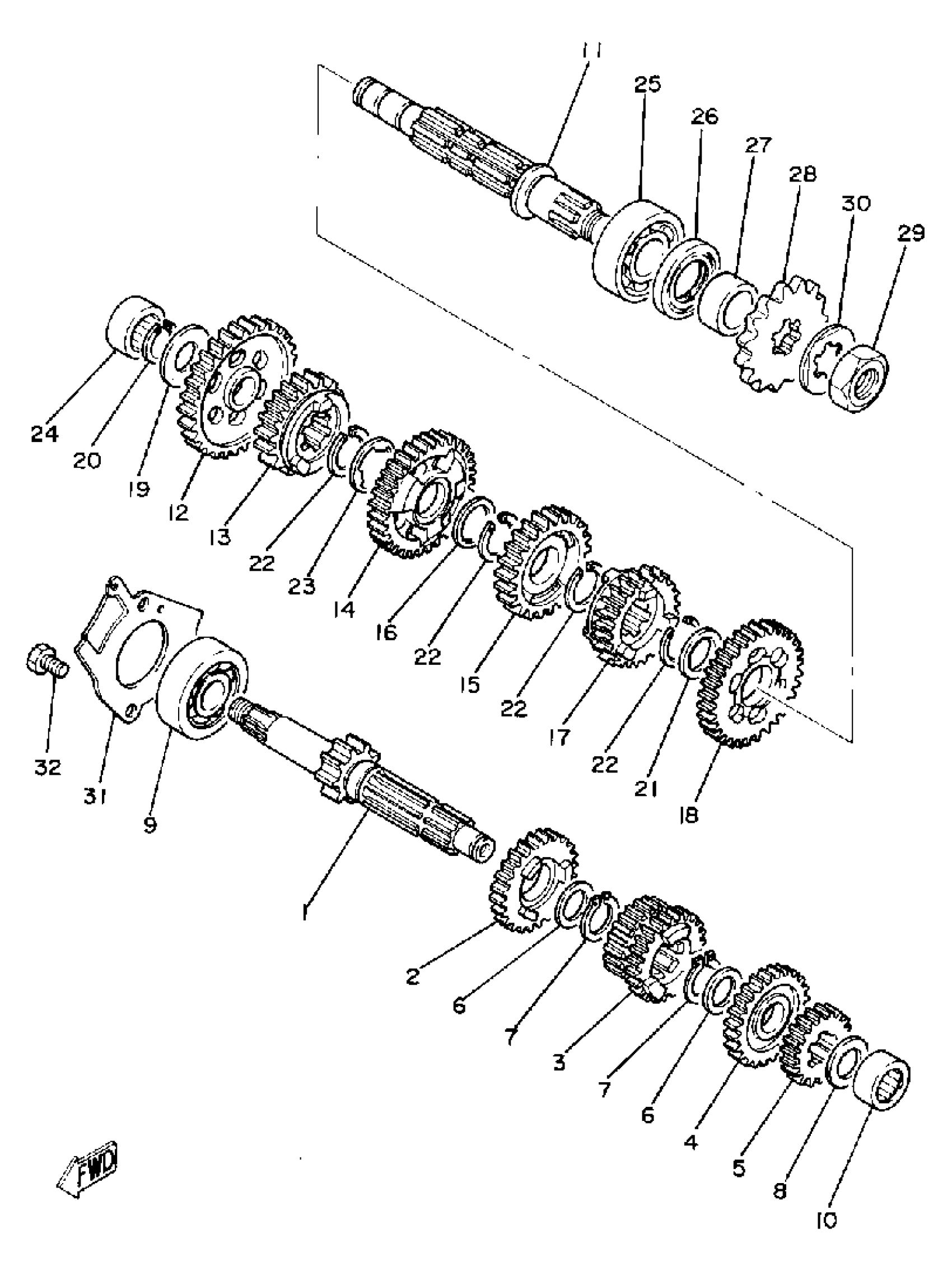

Yamaha TZ125G (TZ125G) 1980 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(3V3-17411-00-00)

Unavailable

2

GEAR, 5TH PINION

(3V3-17151-00-00)

Unavailable

3

GEAR, 3RD PINION

(3V3-17131-00-00)

Unavailable

4

GEAR, 6TH PINION

(3V3-17161-00-00)

Unavailable

5

GEAR, 2ND PINION

(3V3-17121-00-00)

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

WASHER PLATE 278156130000

90201-15234-00

$8.49

8

WASHER (566)

90201-15701-00

$8.49

9

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

10

BEARING, CYLINDER.#11

93311-31522-00

Unavailable

11

AXLE, DRIVE

(537-17421-00-00)

Unavailable

12

GEAR, 1ST WHEEL

(3V3-17211-00-00)

Unavailable

13

GEAR, 5TH WHEEL

(3V3-17251-00-00)

Unavailable

14

GEAR, 3RD WHEEL

(3V3-17231-00-00)

Unavailable

15

GEAR, 4TH WHEEL

(3V3-17241-00-00)

Unavailable

16

WASHER, PLATE

90201-22629-00

Unavailable

17

GEAR, 6TH WHEEL

(3V3-17261-01-00)

Unavailable

18

GEAR, 2ND WHEEL

(3V3-17221-01-00)

Unavailable

19

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

20

CIRCLIP

93440-15012-00

Unavailable

21

WASHER, PLATE (537)

90201-22555-00

Unavailable

22

CIRCLIP (537)

93410-22039-00

Unavailable

23

WASHER (537)

90209-18135-00

Unavailable

24

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

25

BEARING(1GJ)

93306-20458-00

Unavailable

26

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

27

COLLAR (3V3)

90387-202A0-00

Unavailable

28

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

29

NUT (1L8)

90179-16226-00

Unavailable

30

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

31

PLATE, COVER

1G8-17471-00-00

Unavailable

32

BOLT (661)

97013-06012-00

Unavailable
