Description

Price

1

SHIFT SHAFT ASSEMBLY.1

(3V3-18101-00-00)

Unavailable

2

SPRING TENSION 132181230000

90506-09009-00

Unavailable

3

SPRING TORSION 353181240000

90508-32054-00

Unavailable

4

SCREW, SPEC''L SHAPE

90149-08096-00

Unavailable

5

NUT (583)

90170-08193-00

$4.29

6

WASHER LOCK 248181390000

90215-08014-00

$5.60

7

OIL SEAL

93101-12173-00

$13.49

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99006-10600-00

$9.49

10

ARM, SHIFT

(3V3-18112-00-00)

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

COVER, DUST

2H9-18154-00-00

$5.49

13

ROD, SHIFT

(3V3-18115-00-00)

Unavailable

14

NUT(650)

95380-06700-00

$8.49

15

NUT (2H9)

90170-06228-00

$9.49

16

ARM,SHIFT PEDAL

4BB-18112-00-00

Unavailable

17

COVER, DUST

2H9-18154-00-00

$5.49

18

BOLT, HEXAGON

97017-06025-00

$4.24

19

SHAFT, SHIFT 2

(3V3-18155-00-00)

Unavailable

20

COVER, THRUST

1W1-22128-00-00

Unavailable

21

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

22

PEDAL, SHIFT (2K7-18111-00-33)

2K7-18111-00-00

Unavailable

23

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

$4.24

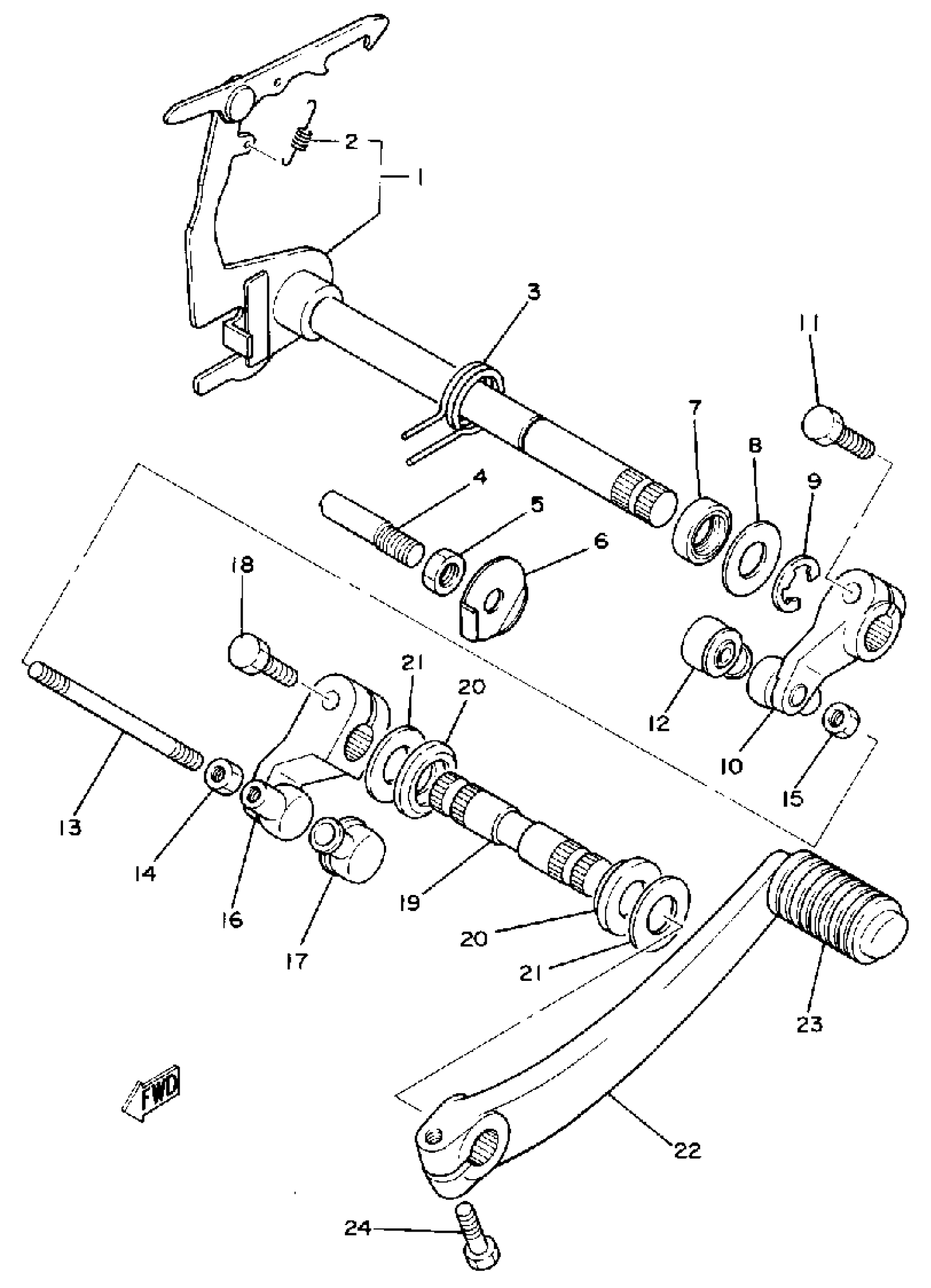

Yamaha TZ125G (TZ125G) 1980 SHIFT SHAFT - PEDAL Diagram

SHIFT SHAFT ASSEMBLY.1

SPRING TENSION 132181230000

SPRING TORSION 353181240000

SCREW, SPEC''L SHAPE

NUT (583)

WASHER LOCK 248181390000

OIL SEAL

WASHER, PLATE (353)

CIRCLIP

ARM, SHIFT

BOLT, HEXAGON

COVER, DUST

ROD, SHIFT

NUT(650)

NUT (2H9)

ARM,SHIFT PEDAL

COVER, DUST

BOLT, HEXAGON

SHAFT, SHIFT 2

COVER, THRUST

WASHER, PLATE (4N0)

PEDAL, SHIFT (2K7-18111-00-33)

COVER, CHANGE PEDAL

BOLT, HEXAGON
