Description

Price

1

SHK/ABS ASSEMBLY, REAR

(3V3-22210-00-00)

Unavailable

2

BUSH, RR SHOCK ABS

(3G2-22216-00-00)

Unavailable

3

CIRCLIP, INNER

(93450-24062-00)

Unavailable

4

. PIN, DOWEL

93604-26132-00

Unavailable

5

GUIDE, SPRING 1

(3G2-22214-00-00)

Unavailable

6

BUSH, SOLID (1M1)

90380-12051-00

$15.99

7

SPRING

(3V3-22212-00-00)

Unavailable

8

BOLT (1M1)

90109-10453-00

Unavailable

9

NUT (682)

95380-10700-00

Unavailable

10

WASHER, PLATE

92990-10600-00

Unavailable

11

PIN, COTTER

91490-20025-00

$1.99

12

COVER, THRUST

1W1-22128-00-00

$19.49

13

PIN,CLEVIS

90240-12059-00

Unavailable

14

WASHER, PLATE(663)

92990-12600-00

$8.49

15

PIN, COTTER

91490-30030-00

$8.49

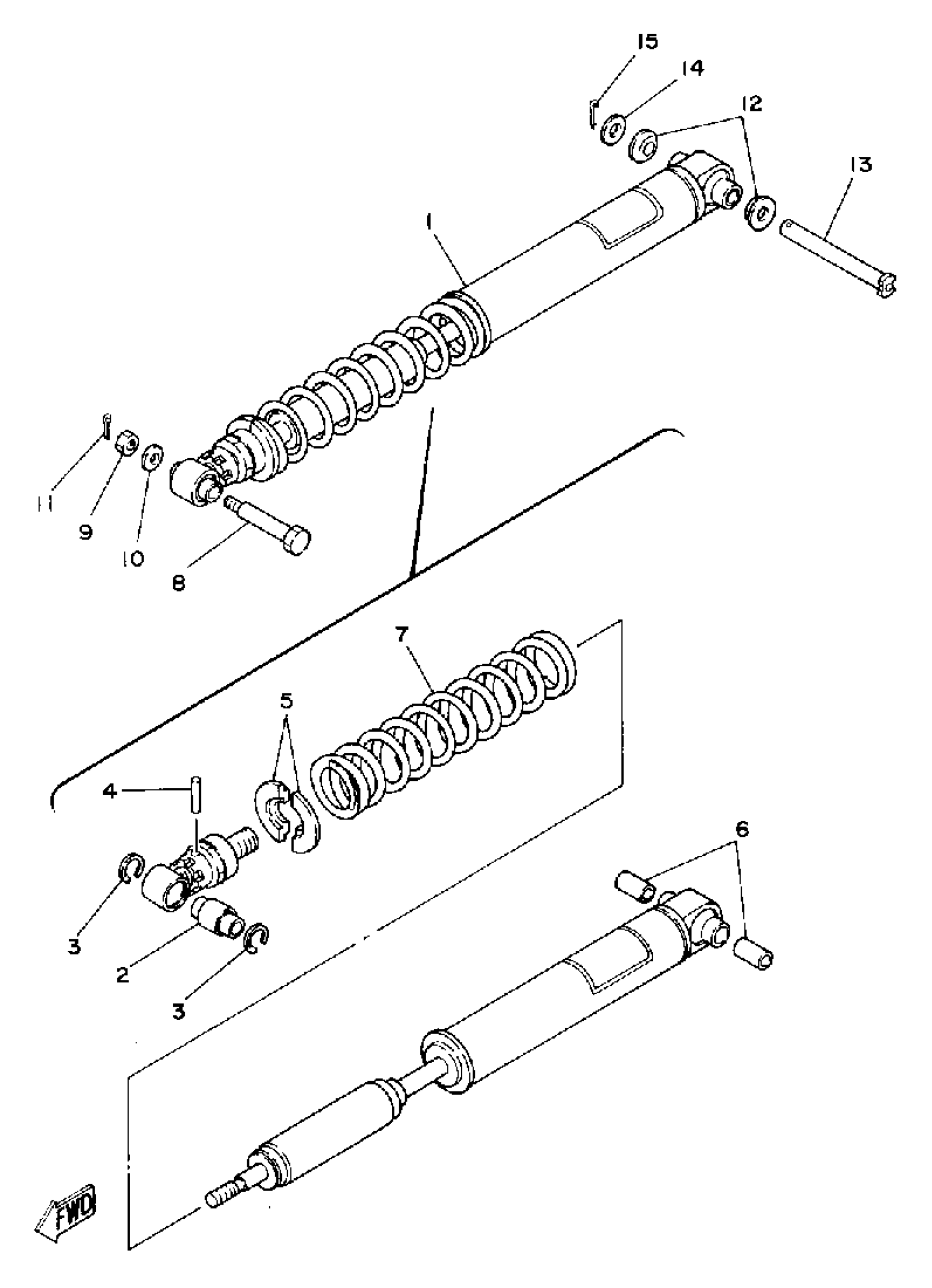

Yamaha TZ125G (TZ125G) 1980 REAR SUSPENSION Diagram

SHK/ABS ASSEMBLY, REAR

BUSH, RR SHOCK ABS

CIRCLIP, INNER

. PIN, DOWEL

GUIDE, SPRING 1

BUSH, SOLID (1M1)

SPRING

BOLT (1M1)

NUT (682)

WASHER, PLATE

PIN, COTTER

COVER, THRUST

PIN,CLEVIS

WASHER, PLATE(663)

PIN, COTTER
