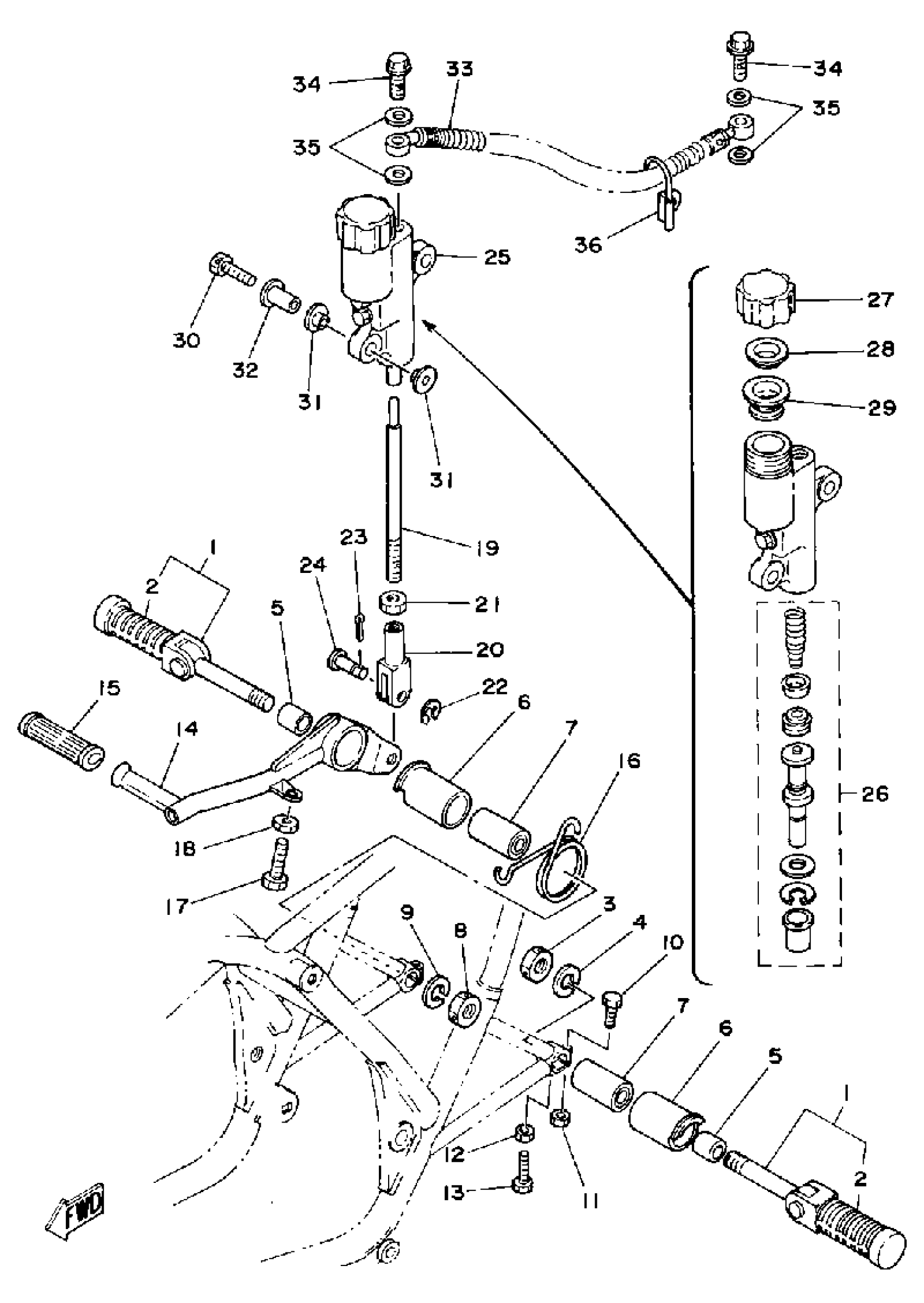

Yamaha TZ125G (TZ125G) 1980 REAR MASTER CYLINDER Diagram

#

Description
Price

1

FRT FOOTREST ASY L

5F6-27410-10-00

Unavailable

2

. COVER, FOOTREST

1X2-27413-00-00

Unavailable

3

NUT, SPEC''L SHAPE

(90179-10173-00)

Unavailable

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

5

COLLAR

(90387-101A7-00)

Unavailable

6

BOSS 1

(3V3-27419-00-00)

Unavailable

7

BUSH 1

102-22123-00-00

Unavailable

8

NUT, SPEC''L SHAPE

(90179-10173-00)

Unavailable

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT, HEXAGON

97017-06030-00

$3.61

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

NUT(650)

95380-06700-00

$8.49

13

BOLT, HEXAGON

97017-06020-00

$4.06

14

PEDAL, BRAKE

(3V3-27211-01-00)

Unavailable

15

COVER

240-18113-00-00

$18.49

16

SPRING, TORSION

90508-29445-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

NUT(650)

95380-06700-00

$8.49

19

ROD, BRAKE

(3V3-27231-00-00)

Unavailable

20

JOINT

(409-27222-00-00)

Unavailable

21

. NUT

95380-08700-00

Unavailable

22

CIRCLIP(53L)

99001-06600-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable

24

PIN, SPEC''L SHAPE

(90249-08085-00)

Unavailable

25

MSTR CYLINDER ASSEMBLY

(3V3-25850-50-00)

Unavailable

26

. CYLINDER KIT, MASTER

1X2-W0042-01-00

Unavailable

27

CAP, RESERVOIR

(1X2-25852-50-00)

Unavailable

28

BUSH, DIAPHRAGM

(1X2-25855-50-00)

Unavailable

29

DIAPHRAGM RESERVOR

(1X2-25854-50-00)

Unavailable

30

BOLT, HEAD W/HOLE

90103-06018-00

Unavailable

31

GROMMET

90480-10260-00

Unavailable

32

COLLAR

(90387-06774-00)

Unavailable

33

HOSE, BRAKE 2

(3V3-25873-00-00)

Unavailable

34

BOLT, UNION

(90401-10062-00)

Unavailable

35

WASHER, PLATE(481)

90201-10118-00

Unavailable

36

HOLDER, BRKE HOSE 2

(3V3-25876-00-00)

Unavailable
